Toyota CAMRY 前门板和前门玻璃 — Figure 6701

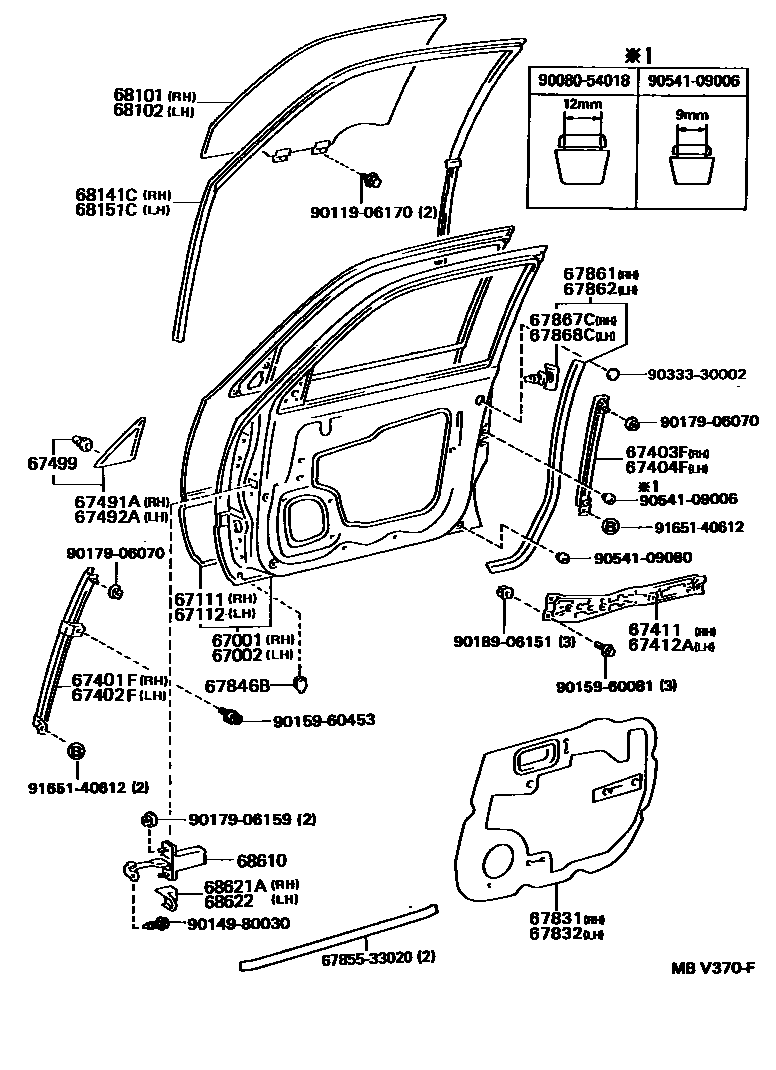

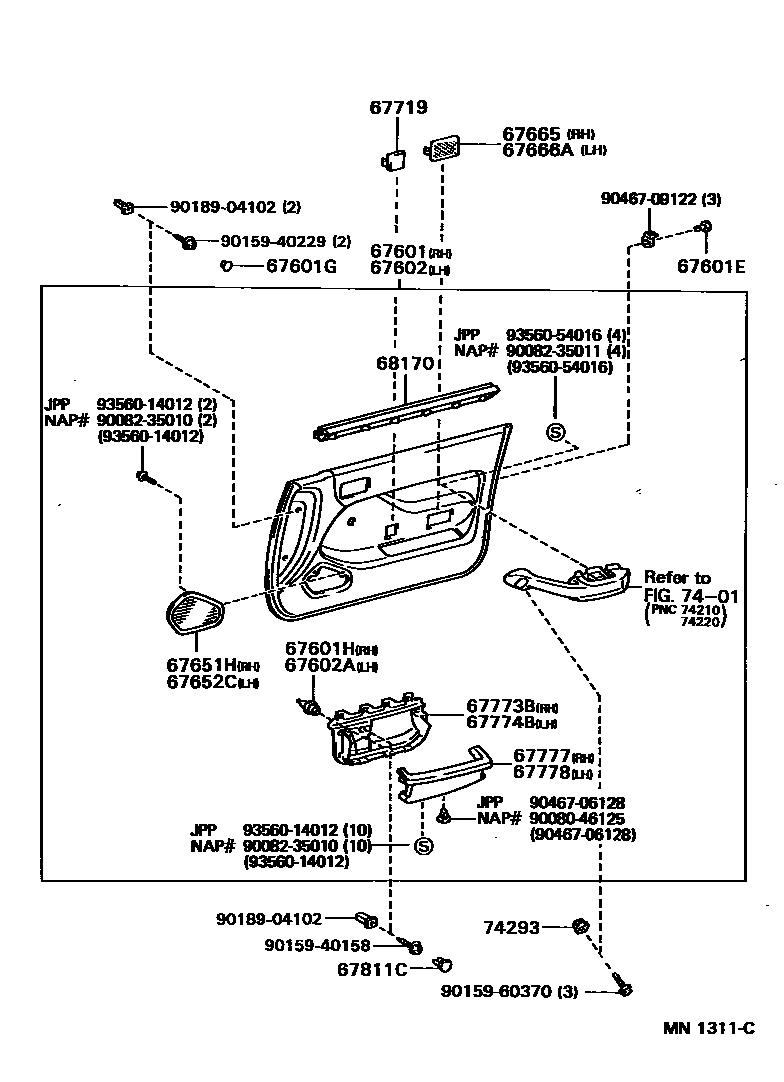

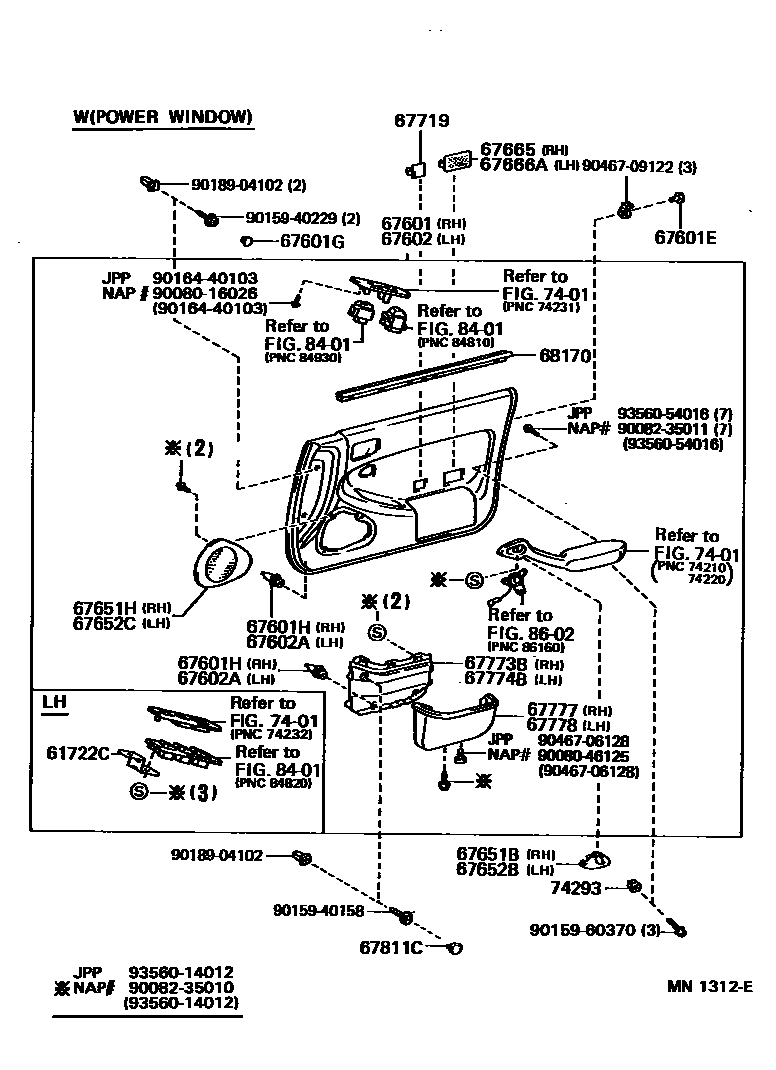

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61722C | switch board bracket | 61722-06010 |
| 67001 | Right front door panel sub-assembly | 67001-06010 · 67001-06011 · 67001-06012 · 67001-AA010 |
| 67002 | Left front door panel sub-assembly | 67002-06010 · 67002-06011 · 67002-06012 · 67002-AA010 |
| 67111 | Outer right front door panel | 67111-06010 · 67111-06011 · 67111-AA010 |
| 67112 | Outer left front door panel | 67112-06010 · 67112-06011 · 67112-AA010 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-06010 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-06010 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-06010 · 67403-AA010 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-06010 · 67404-AA010 |
| 67411 | Right front door window upper frame | 67411-32040 |
| 67412A | Left front door upper window frame | 67412-32040 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-06010 · 67491-33010 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-06010 · 67492-33010 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-06010 · 67499-30020 |
| 67601H | Right door trim panel fixing | 67771-06060 · 67771-06070 |
| 67602A | Left door trim panel fixing | 67771-06060 · 67771-06070 |
| 67665 | Right front door trim reflector | 67665-AA010 |
| 67666A | Left front door trim reflector | 67665-AA010 |
| 67777 | Right front door decorative bag | 67777-AA010 |
| 67778 | Left front door decorative bag | 67778-AA010 |
| 67831 | Right front door access hole cover | 67831-06020 · 67831-06030 · 67831-AA010 · 67831-AA020 |
| 67832 | Left front door access hole cover | 67832-06020 · 67832-06030 · 67832-AA010 · 67832-AA020 |
| 67846B | Rear door access hole auxiliary hole cover | 67845-32010 |
| 67861 | Right front door seal | 67861-06010 · 67861-AA010 |
| 67862 | Left front door seal | 67862-06010 · 67862-AA010 |
| 67867C | Right front door seal strip fixing | 67867-06010 |
| 67868C | Left front door seal strip fixing | 67867-06010 |
| 68101 | Right front door glass sub-assembly | 68101-06010 · 68101-06020 · 68101-AA010 · 68101-AA020 |
| 68102 | Left front door glass sub-assembly | 68102-06010 · 68102-06020 · 68102-AA010 · 68102-AA020 |
| 68141C | Right front door glass lift channel | 68141-06010 · 68141-32090 · 68141-AA010 |
| 68151C | Left front door glass lift channel | 68151-06010 · 68151-32030 · 68151-AA010 |
| 68170 | Front door glass inner sealing strip assembly | 68170-06020 · 68170-06030 · 68170-AA010 · 68220-06020 · 68220-06030 · 68220-AA010 |
| 68610 | Front door opening limiter assembly | 68610-06011 · 68610-32060 · 68610-33011 · 68610-AA010 · 68620-06011 · 68620-32040 · 68620-33011 · 68620-AA010 |
| 68621A | Right front door opening limiter cover | 68621-32010 |
| 68622 | Left front door opening limiter cover | 68622-32010 |
| 74293 | No. 1 front door armrest panel | 74293-32010 · 90084-18001 |
