Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

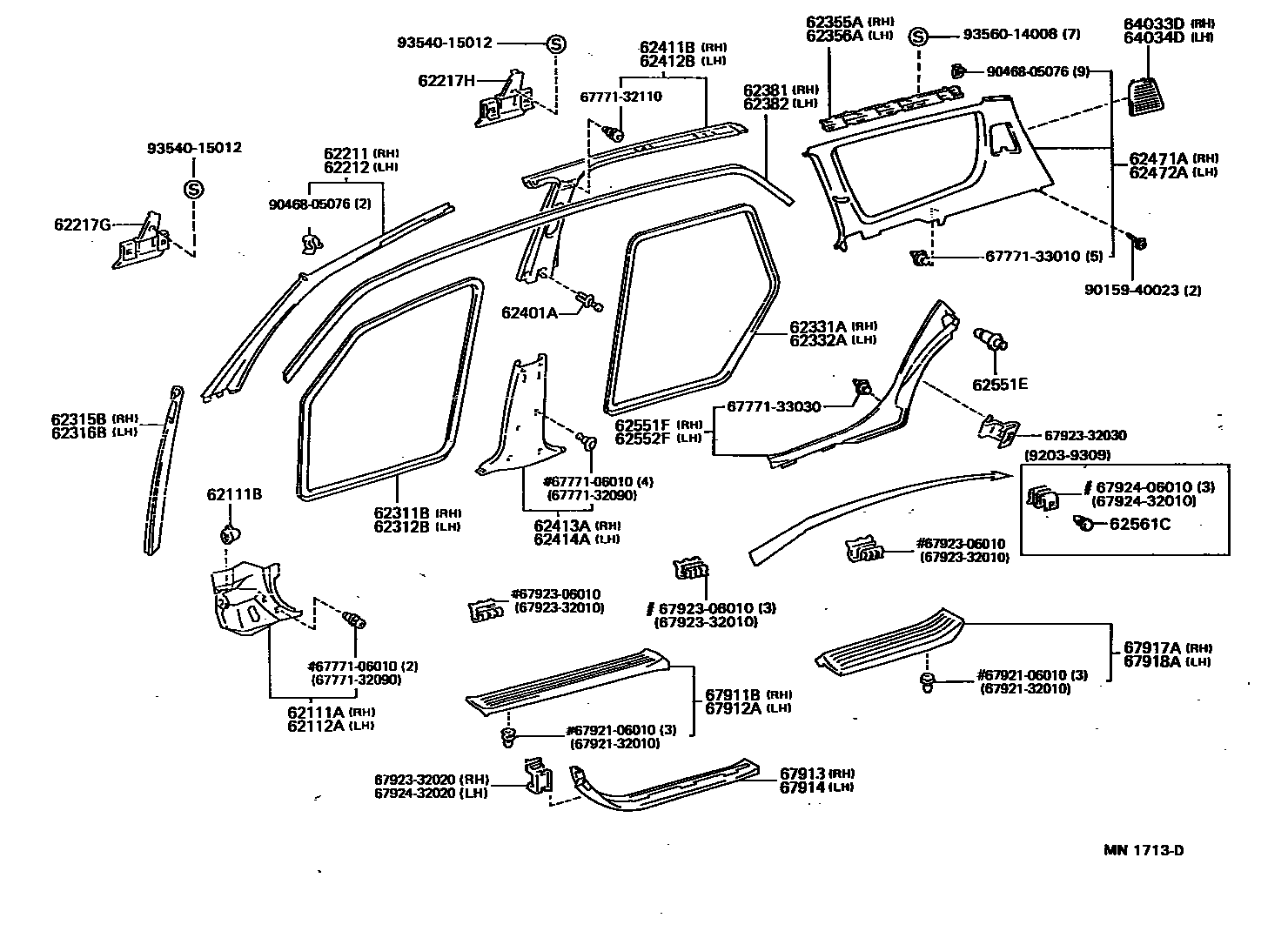

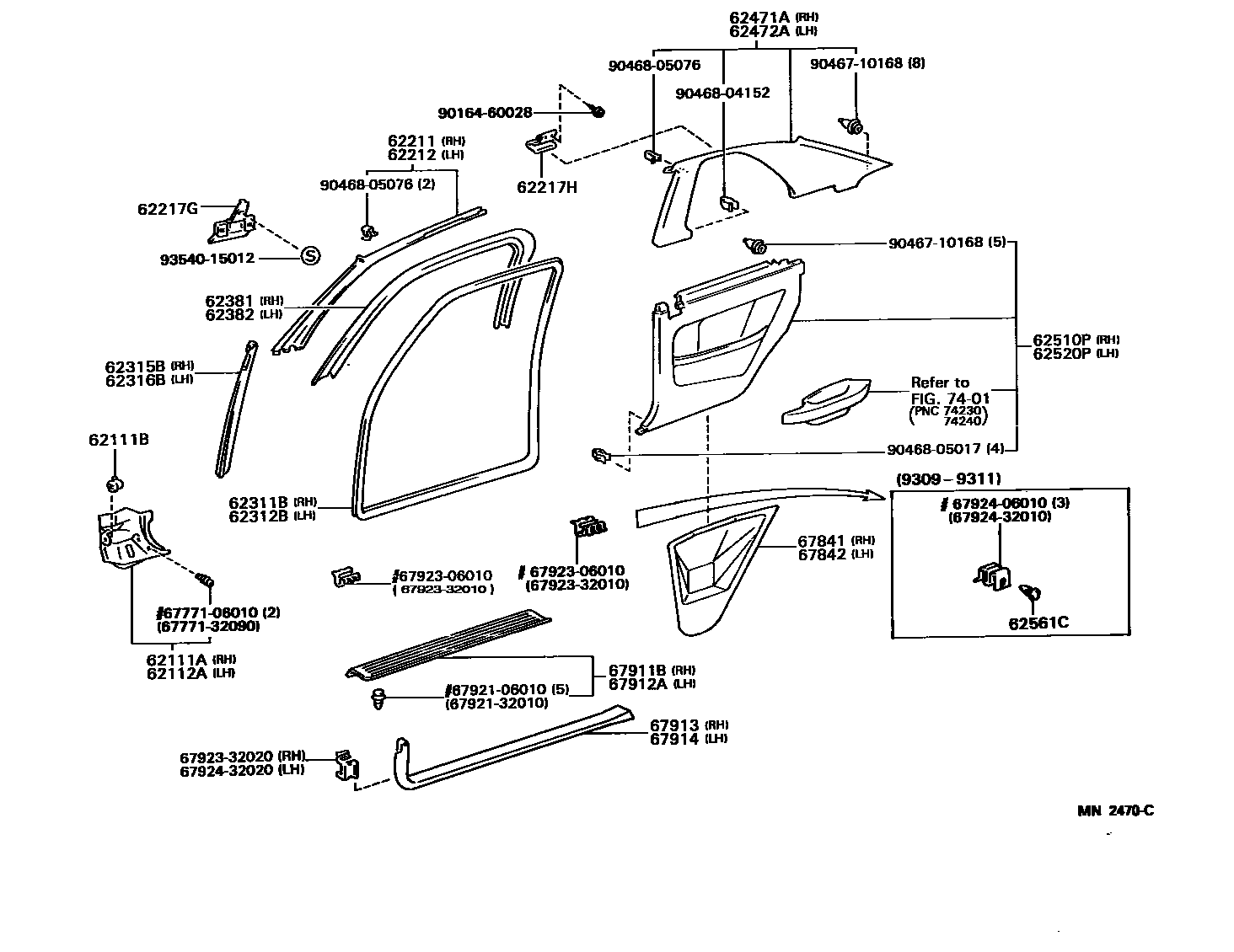

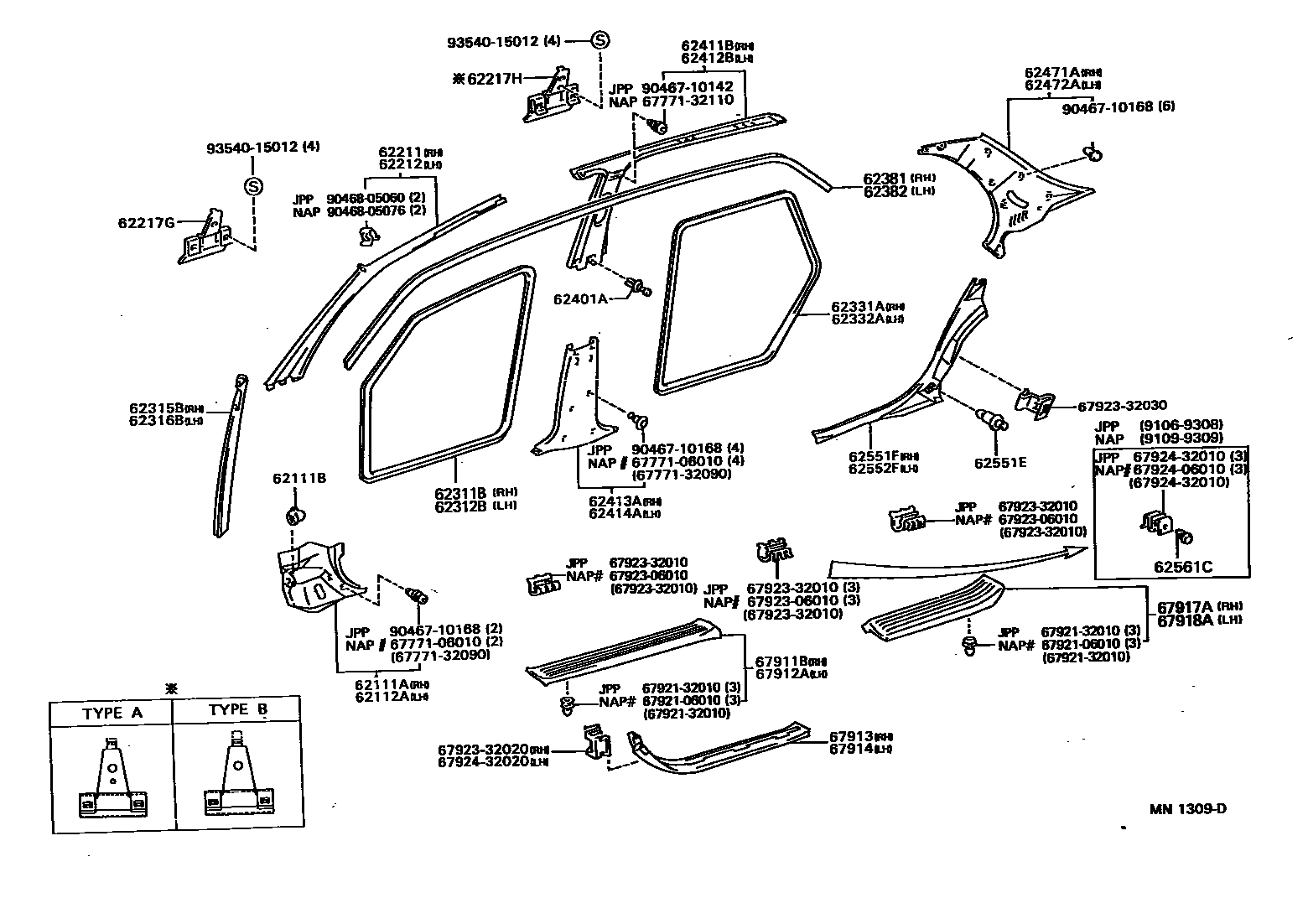

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-08161 |
| 62217G | Front pillar decorative plate clip | 62217-32030 |
| 62217H | Center pillar decorative plate clip | 62217-32030 · 62217-33020 · 62217-AA010 |
| 62311B | Right front door opening waterproof tape | 62311-06010 · 62311-33020 · 62311-AA010 |
| 62312B | Left front door opening waterproof tape | 62312-06010 · 62312-33020 · 62312-AA010 |
| 62331A | Right rear door opening waterproof tape | 62331-06010 · 62331-06020 · 62331-33020 |
| 62332A | Left rear door opening waterproof tape | 62332-06010 · 62332-06020 · 62332-33020 |
| 62355A | Right corner window inner trim strip fixing | 62355-06020 |
| 62356A | Left corner window inner trim strip fixing | 62356-06020 |
| 62381 | Right front roof rail sealing strip | 62381-06010 · 62381-06020 · 62381-AA010 |
| 62382 | Left front roof rail sealing strip | 62382-06010 · 62382-06020 · 62382-AA010 |
| 62551E | Clips (for rear seat side trim panels) | 90467-07108 |
| 67841 | No. 1 right side manhole cover | 67841-AA010 |
| 67842 | No. 1 left side manhole cover | 67842-AA010 |
| 67911B | Right front door outer wear plate | 67911-06010 · 67911-AA010 |
| 67912A | Left front door outer wear plate | 67912-06010 · 67912-AA010 |
| 67917A | Right rear door wear plate | 67915-06010 |
| 67918A | Left rear door wear plate | 67916-06010 |
