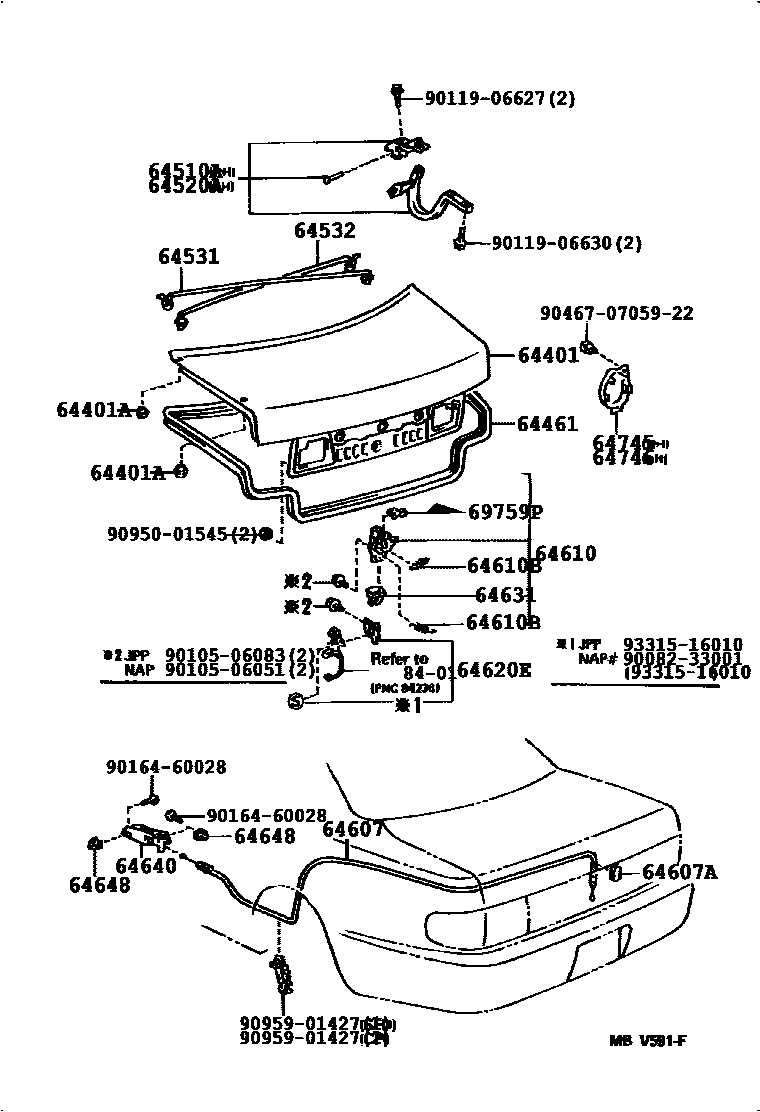

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-06020 · 64401-06023 · 64401-06040 · 64401-06041 · 64401-06042 · 64401-06043 · 64401-06071 · 64401-06072 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-06059 · 90541-19002 |
| 64461 | Trunk door seal | 64461-06010 · 64461-33010 |
| 64510A | Trunk door right hinge assembly | 64510-06010 |
| 64520A | Trunk door left hinge assembly | 64520-06010 |
| 64531 | Trunk door right hinge torsion bar | 64531-06010 · 64531-06020 |
| 64532 | Trunk door left hinge torsion bar | 64532-06010 · 64532-06020 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06010 · 64607-33010 |
| 64607A | Clip No. 1 (for trunk door lock control cable) | 69749-18020 |
| 64610 | Trunk door lock assembly | 64610-06010 |
| 64610B | Tension spring (for trunk door lock) | 90080-50071 · 90080-50072 |
| 64620E | Trunk door lock assembly | 64620-06010 |
| 64631 | Trunk door lock protector | 64631-06010 |
| 64648 | Trunk door lock opener seal | 64648-32010 · 64648-AC010 |
| 64745 | Right rear combination light access hole cover | 64745-33010 |
| 64746 | Left rear combination light access hole cover | 64746-33010 |
| 69759P | Door lock control link buckle | 69759-06010 |
