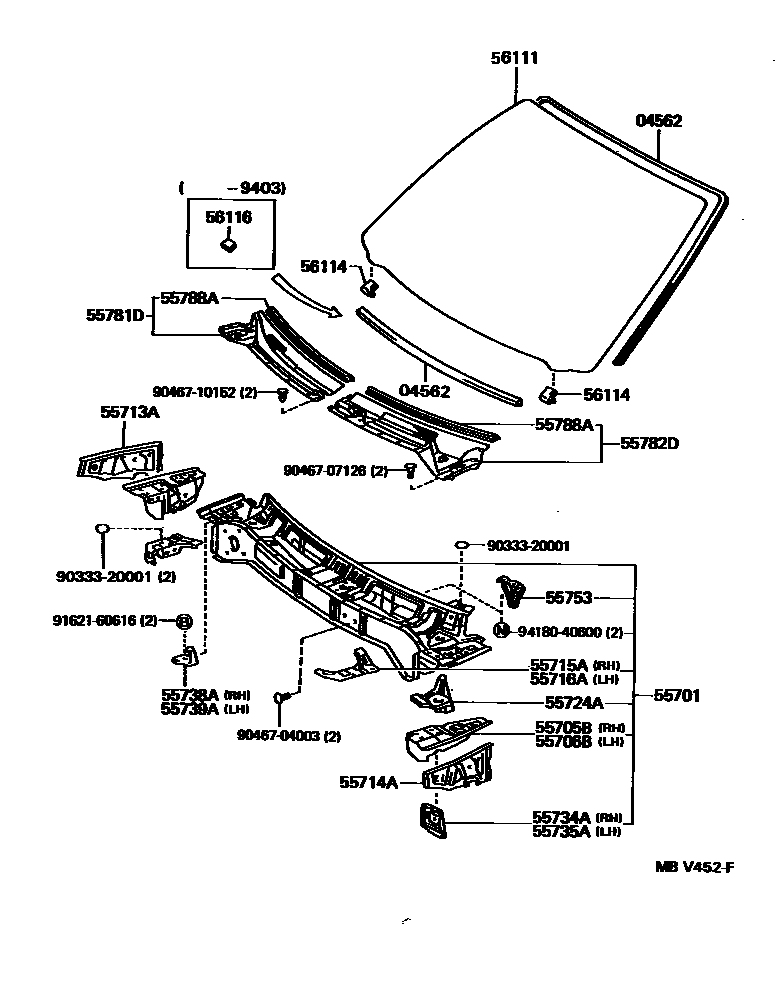

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55701 | Front apron sub-assembly | 55700-06010 · 55700-06020 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-33010 · 55705-33020 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-33010 |
| 55713A | Right front wall upper side panel | 55713-06010 · 55713-33010 |
| 55714A | Left front wall upper side panel | 55714-06010 · 55714-33010 |
| 55715A | From cowl upper cover to fender right stay | 55715-33010 |
| 55716A | From cowl upper cover to fender left stay | 55716-33010 |
| 55724A | Left front wall upper side reinforcement | 55724-33010 |
| 55734A | Right waterproof cover | 55734-06010 · 55734-33010 |
| 55735A | Left waterproof cover panel | 55735-06010 · 55735-33010 |
| 55738A | Engine cover right block | 55738-33010 |
| 55739A | Engine cover left block | 55739-33010 |
| 55753 | Dashboard to cowl bracket | 55753-33010 |
| 55781D | Ventilation grille on right front apron | 55781-33050 |
| 55782D | Ventilation grille on left front apron | 55782-33050 |
| 55788A | Ventilation grille protector on front apron | 55788-33010 · 55789-33010 · 55789-33020 |
| 56111 | windshield | 56111-06010 · 56111-06020 · 56111-06030 |
| 56114 | windshield stopper | 56114-06010 · 56114-33020 · 56114-33030 |
| 56116 | windshield spacer | 56116-06010 · 56116-33010 |
