Toyota CAMRY Spare tire rack — Figure 5104

Toyota CAMRY EPC diagram 5104, Spare tire rack, with 2 images and 5 PNC and OE references.

Toyota CAMRY Spare tire rack EPC diagram — MBU720
Spare tire rack — MBU720 (199106 – 999999)

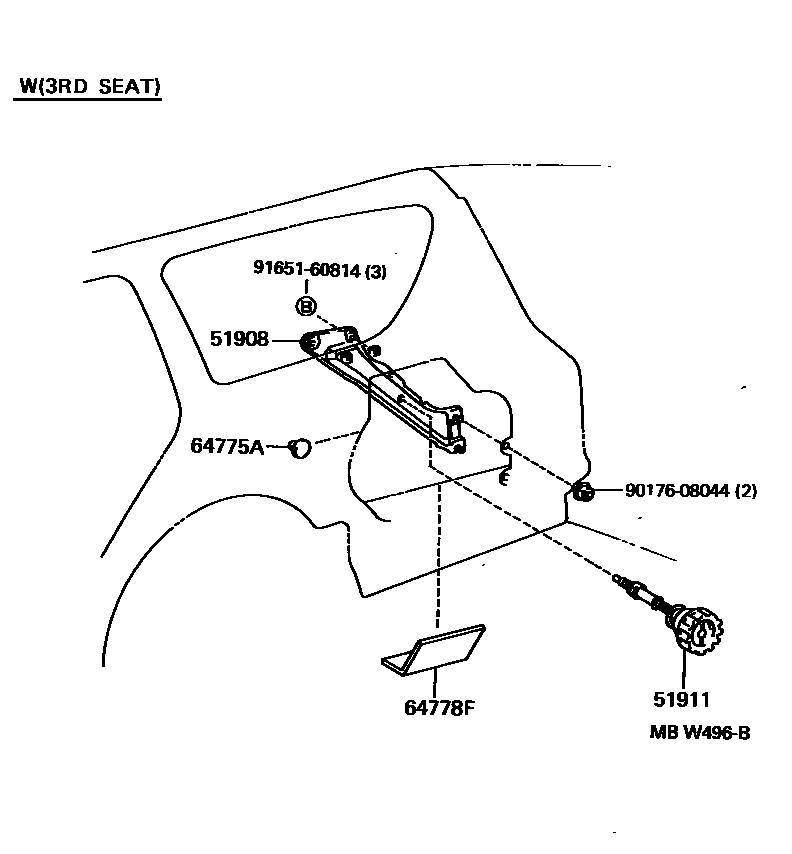

Toyota CAMRY Spare tire rack EPC diagram — MBW496B
Spare tire rack — MBW496B (199203 – 999999)

PNC and OE references

PNCPart nameOE numbers
51900Spare tire rack assembly51900-33010 · 51900-33040
51908Spare tire rack bracket sub-assembly51904-06010
51911Spare tire mounting bolt assembly51910-33010
64775ASpare tire protection device64775-06010
64778FSpare tire protection device64778-06030
