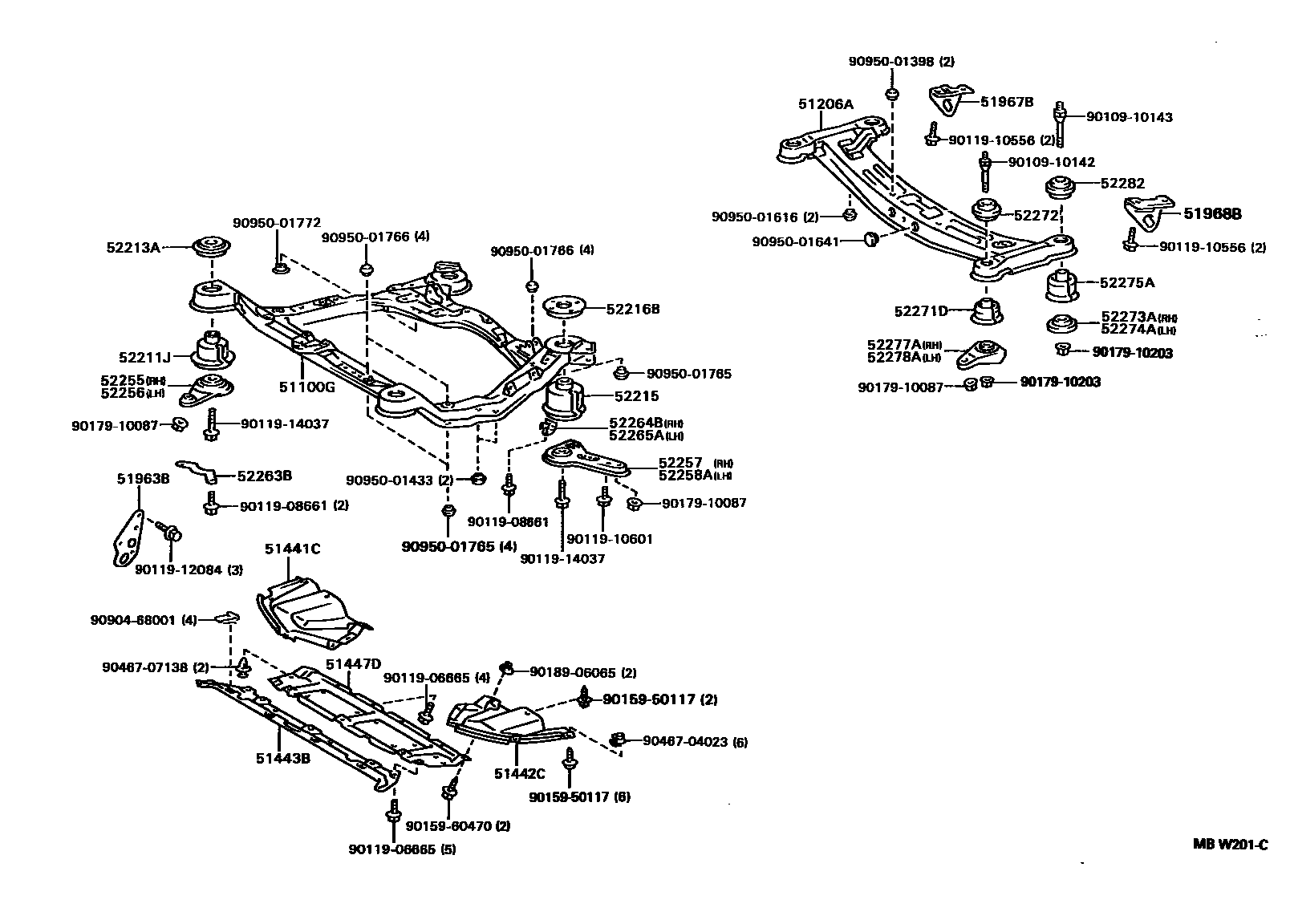

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51100G | Front frame assembly | 51100-06010 |
| 51206A | Rear suspension cross member sub-assembly | 51206-06010 · 51206-06011 |
| 51441C | Engine right bottom cover | 51441-06010 |
| 51442C | Engine left bottom cover | 51442-06010 |
| 51443B | No. 3 engine bottom cover | 51443-06010 |
| 51447D | No. 4 engine center bottom cover | 51447-06010 |
| 51963B | Right front transport hook | 51963-33010 · 51963-AC010 |
| 51967B | right rear transport hook | 51967-06010 · 51967-06020 · 51967-AA010 · 51967-AC010 |
| 51968B | Left rear transport hook | 51968-06010 · 51968-06020 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06010 · 52211-33010 · 52211-33030 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06010 · 52213-33010 · 52213-33030 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06010 · 52215-33010 · 52215-33030 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06010 · 52216-33020 |
| 52255 | Right front suspension cross member front bracket | 52255-33010 |
| 52256 | Left front suspension cross member front bracket | 52256-33010 |
| 52257 | Right front suspension cross member rear bracket | 51023-33010 · 52257-33010 |
| 52258A | Left front suspension cross member rear bracket | 51024-33010 · 52258-33010 |
| 52263B | Front suspension cross member No. 1 cushion pad fixing | 52263-33010 |
| 52264B | Front suspension cross member No. 2 cushion pad fixing | 52264-33010 |
| 52265A | Front suspension cross member No. 3 cushion pad fixing | 52265-33010 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-06010 · 52271-06030 · 52271-32020 · 52271-33010 |
| 52272 | Rear suspension cross member upper block | 52272-33010 |
| 52273A | Rear suspension cross member right lower stop | 52273-32010 |
| 52274A | Rear suspension cross member left lower stop | 52273-32010 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-06010 · 52275-06030 · 52275-32050 · 52275-33010 |
| 52277A | Right rear suspension cross member lower block fixing piece | 52203-33010 |
| 52278A | Left rear suspension cross member lower block fixing piece | 52204-33010 |
| 52282 | Differential support beam upper stop | 52282-33010 |
