Toyota CAMRY Rear Spring & Shock Absorber — Figure 4804

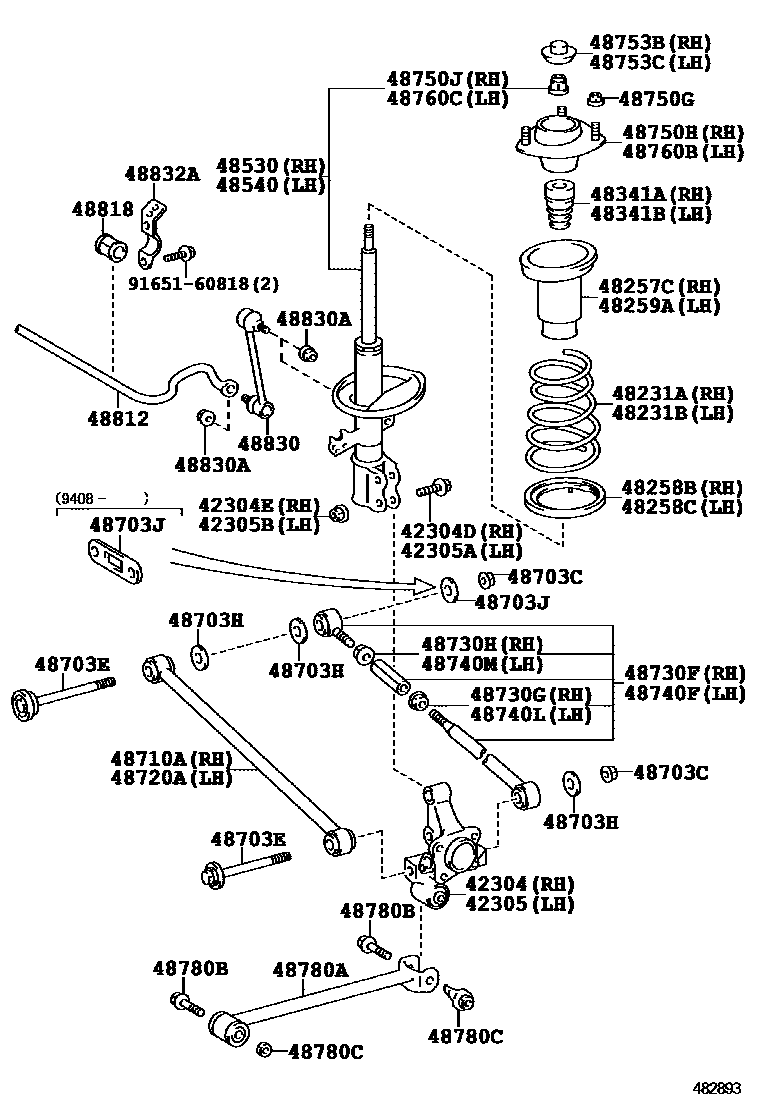

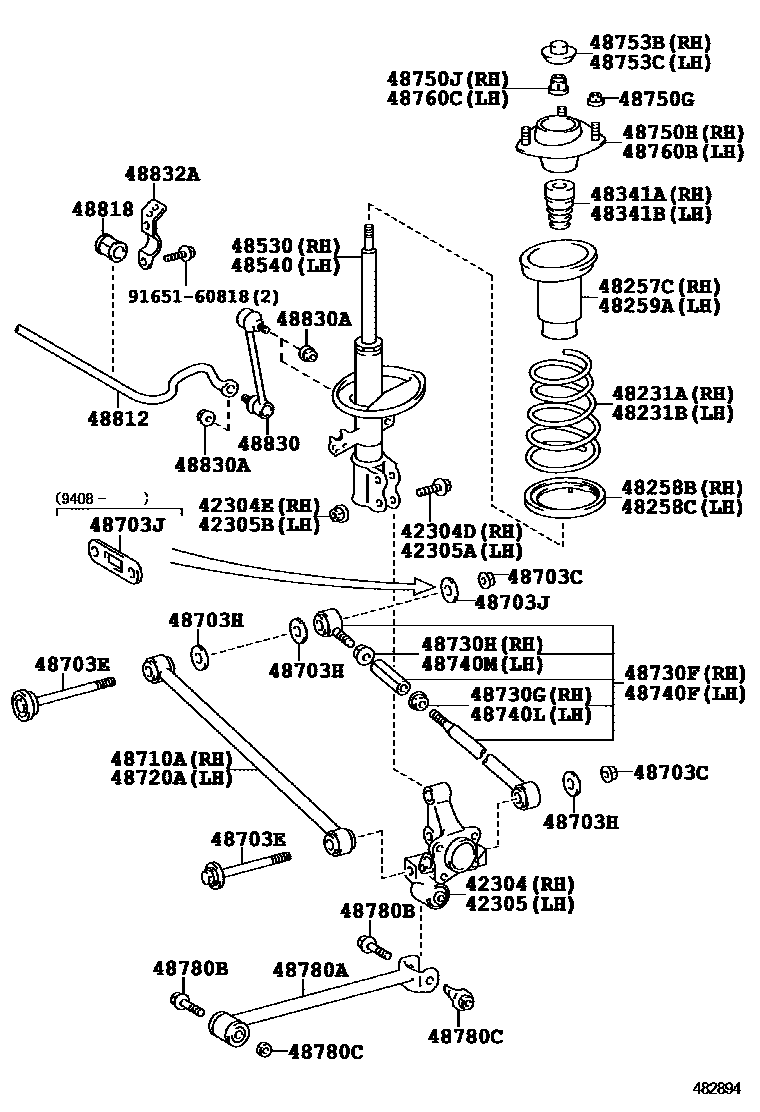

Toyota CAMRY EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-06010 · 42304-06020 |
| 42304D | Bolt (for rear axle right bracket) | 90105-15001 |
| 42304E | Nut (for rear axle right bracket) | 90179-15001 |
| 42305 | Rear axle left bracket sub-assembly | 42305-06010 · 42305-06020 |
| 42305A | Bolt (for left rear axle bracket) | 90105-15001 |
| 42305B | Nut (for left rear axle bracket) | 90179-15001 |
| 48231A | Right rear coil spring | 48231-06010 · 48231-06030 · 48231-06120 · 48231-06160 |
| 48231B | Left rear coil spring | 48231-06010 · 48231-06030 · 48231-06120 · 48231-06160 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48259-06010 |
| 48341A | No. 1 right rear spring buffer block | 48341-06010 · 48341-06011 · 48341-06020 |
| 48341B | No. 1 left rear spring buffer block | 48341-06010 · 48341-06011 · 48341-06020 |
| 48530 | Right rear shock absorber assembly | 48530-06010 · 48530-06011 · 48530-06020 · 48530-09050 · 48530-09060 · 48530-09070 · 48530-09080 · 48530-09090 · 48530-80128 |
| 48540 | Left rear shock absorber assembly | 48540-06010 · 48540-06011 · 48540-06020 · 48540-09040 · 48540-09050 · 48540-09060 · 48540-09070 · 48540-09080 · 48540-39545 |
| 48703C | Nut (for rear suspension arm) | 90179-14019 |
| 48703E | Bolts (for rear suspension arms) | 90901-09001 · 90901-19001 |
| 48703H | Washer No. 1 (for rear suspension arm) | 90201-14017 |
| 48703J | Washer No. 2 (for rear suspension arm) | 48715-07010 · 48715-32010 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-33020 · 48710-33030 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-33020 · 48710-33030 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-33010 · 48730-33020 |
| 48730G | Nut No. 1 (for right rear suspension arm No. 2) | 90179-18016 |
| 48730H | No. 2 nut (for right rear suspension No. 2 arm assembly) | 90179-18017 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-33010 · 48740-33020 · 48740-33040 |
| 48740L | Nut No. 1 (for left rear suspension arm No. 2) | 90179-18017 |
| 48740M | No. 2 nut (for left rear suspension No. 2 arm assembly) | 90179-16022 |
| 48750G | Nut (for rear suspension mount) | 90179-08122 |
| 48750H | Right rear suspension support assembly | 48750-06010 |
| 48750J | Nut (for rear mount to right rear shock absorber) | 94182-11400 |
| 48753B | Right rear suspension support cover No. 1 | 48753-32041 |
| 48753C | Left rear suspension support cover No. 1 | 48753-32041 |
| 48760B | Left rear suspension support assembly | 48760-06010 |
| 48760C | Nut (for rear mount to left rear shock absorber) | 94182-11400 |
| 48780A | Rear support rod assembly | 48780-32060 · 48780-33010 |
| 48780B | Bolts (for support rods) | 90119-12131 |
| 48780C | Nut (for support rod) | 90179-12062 · 90179-12063 |
| 48812 | rear stabilizer bar | 48812-06020 · 48812-06030 · 48812-06040 · 48812-33020 · 48812-33030 · 48812-33070 |
| 48818 | Rear stabilizer bar bushing | 48818-06020 · 48818-06021 · 48818-06030 · 48818-06031 · 48818-06041 |
| 48830 | Rear stabilizer link assembly | 48830-33010 |
| 48830A | Nut (for rear stabilizer link) | 90179-10054 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-06010 |
