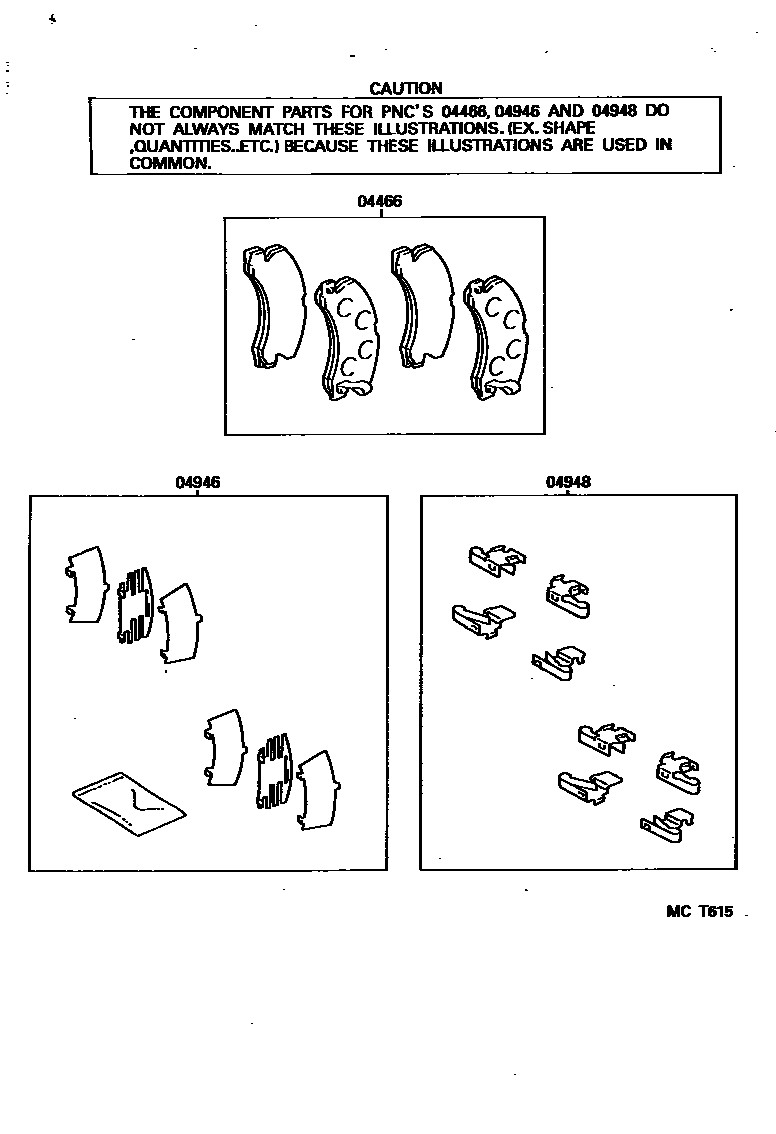

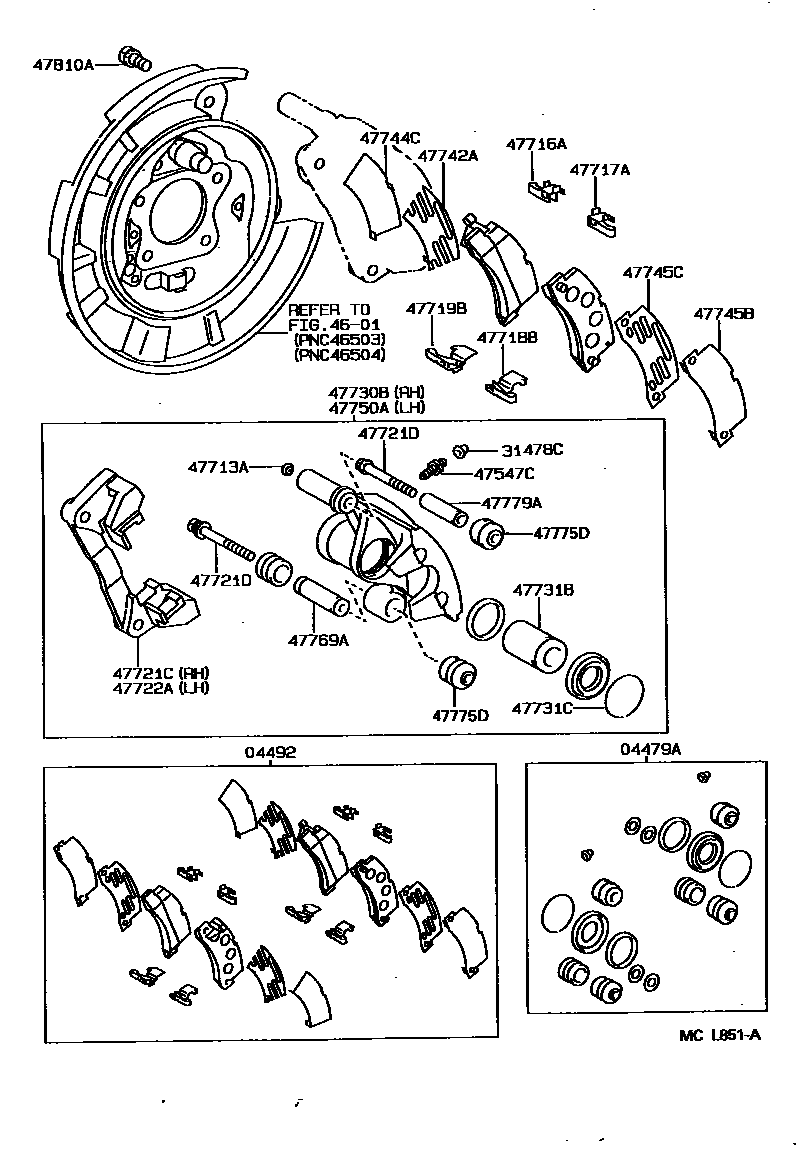

Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-32010 |
| 04479A | Rear disc brake cylinder assembly | 04479-20120 · 04479-33020 |
| 04492 | Rear disc brake pad assembly | 04492-33010 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-32070 |
| 04948 | Rear disc brake mounting assembly | 04948-32010 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-20010 |
| 47713A | Bore plug (for rear disc brake cylinder) | 90950-01538 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47716-32020 |
| 47717A | Pad support plate No. 2 (for rear disc brake) | 47717-32020 |
| 47718B | No. 3 pad support plate (for rear disc brake) | 47718-32010 |
| 47719B | No. 4 pad support plate (for rear disc brake) | 47719-32010 |
| 47721C | Right rear disc brake cylinder retainer | 47721-20320 · 47721-33030 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90105-08133 · 90119-08547 |
| 47722A | Left rear disc brake cylinder retainer | 47721-20320 · 47721-33030 |
| 47730B | Right rear disc brake cylinder assembly | 47730-33010 · 47730-33020 · 47730-33050 · 47730-33060 |
| 47731B | rear disc brake piston | 47731-20130 · 47731-50020 |
| 47731C | retaining ring (for rear disc brake piston) | 90522-43003 · 90522-50002 |
| 47742A | No. 3 silencer gasket (for rear disc brake) | 47742-32031 |
| 47744C | No. 1 silencer gasket (for rear disc brake) | 47745-32030 |
| 47745B | No. 2 silencer gasket (for rear disc brake) | 47745-32090 |
| 47745C | No. 3 silencer gasket (for rear disc brake) | 47742-32090 |
| 47750A | Left rear disc brake cylinder assembly | 47750-33010 · 47750-33020 · 47750-33050 · 47750-33060 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-32020 |
| 47775D | Bushing boot (for rear disc brake) | 47775-32020 |
| 47779A | No. 2 brake cylinder sliding sleeve (for rear disc brake) | 47779-32020 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-10379 |
