Toyota CAMRY 后鼓式制动器分泵和底板 — Figure 4706

Toyota CAMRY EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 25 PNC and OE references.

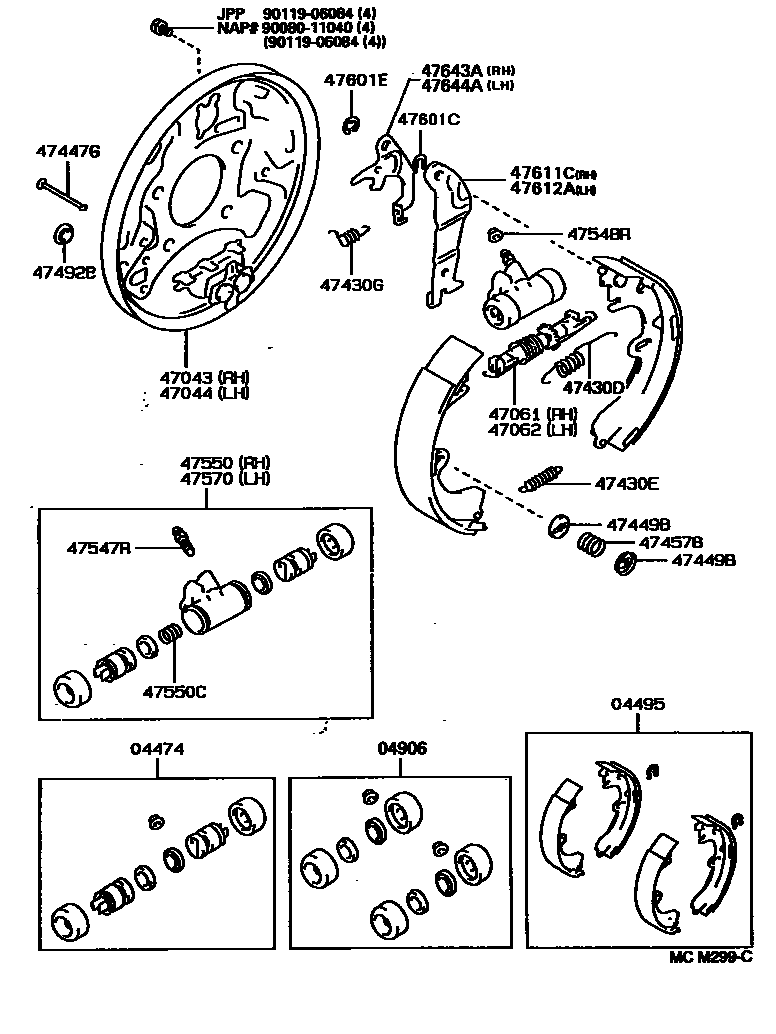

Toyota CAMRY 后鼓式制动器分泵和底板 EPC diagram — MCM299C
后鼓式制动器分泵和底板 — MCM299C (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
04474rear wheel pump assembly04474-06010 · 04474-33010
04495Rear brake shoe assembly04495-06010
04906Rear wheel pump cup assembly04906-06010 · 04906-33010
47043Right rear brake base plate sub-assembly47043-06010 · 47043-06020
47044Left rear brake base plate sub-assembly47044-06010 · 47044-06020
47061Right parking brake shoe push rod assembly47061-06010 · 47061-33010
47062Left parking brake shoe push rod assembly47062-06010 · 47062-33010
47430DTension spring (for rear brake shoe return)90080-50069 · 90080-50070
47430ETension spring (for rear brake shoe return)90080-50068
47430GTension spring (for rear wheel brake automatic adjustment lever)90080-50067
47447GBrake shoe limit spring pin (for rear wheel brake)47447-03010 · 47447-06010
47449BBrake shoe limit spring seat (for rear wheel brake)47449-03010 · 47449-06010
47457BCompression spring (for rear brake shoe limit spring pin)90080-50066
47492BBrake shoe inspection plug (for rear brake)47492-06010
47547RBleed plug (for rear drum brake)47547-03020 · 47547-22020
47548RBleeder plug cap (for rear drum brake)31478-30010
47550Rear wheel brake cylinder assembly (for front right or upper right)47550-06010 · 47550-33010
47550CCompression spring (for rear wheel brake cylinder)90080-50082 · 90501-09079
47570Rear wheel brake cylinder assembly (for front left or upper left)47570-06010 · 47570-33010
47601CC-shaped washer (for rear brake)90080-20012
47601EE-ring (for rear brake)90082-61009 · 96160-00500
47611CRight parking brake shoe lever47611-06010 · 47611-06020
47612ALeft parking brake shoe lever47612-06010 · 47612-06020
47643ARight rear wheel brake automatic adjustment lever47643-06010 · 47643-06020
47644ALeft rear wheel brake automatic adjustment lever47644-06010 · 47644-06020
