Toyota CAMRY Steering Wheel — Figure 4504

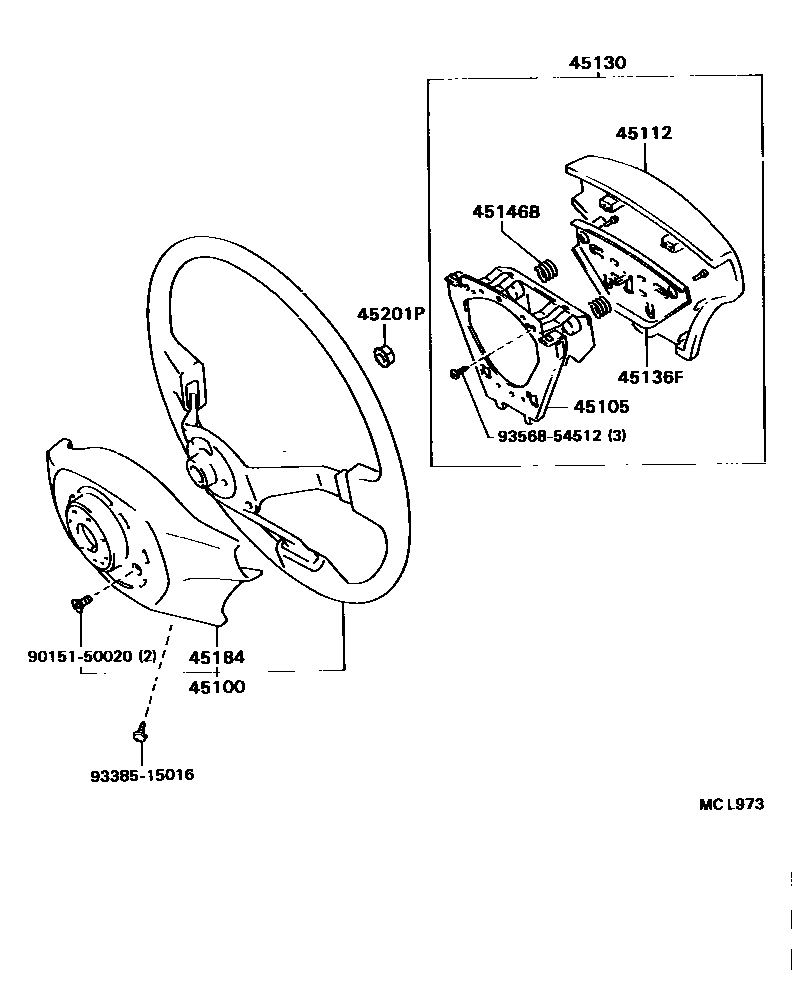

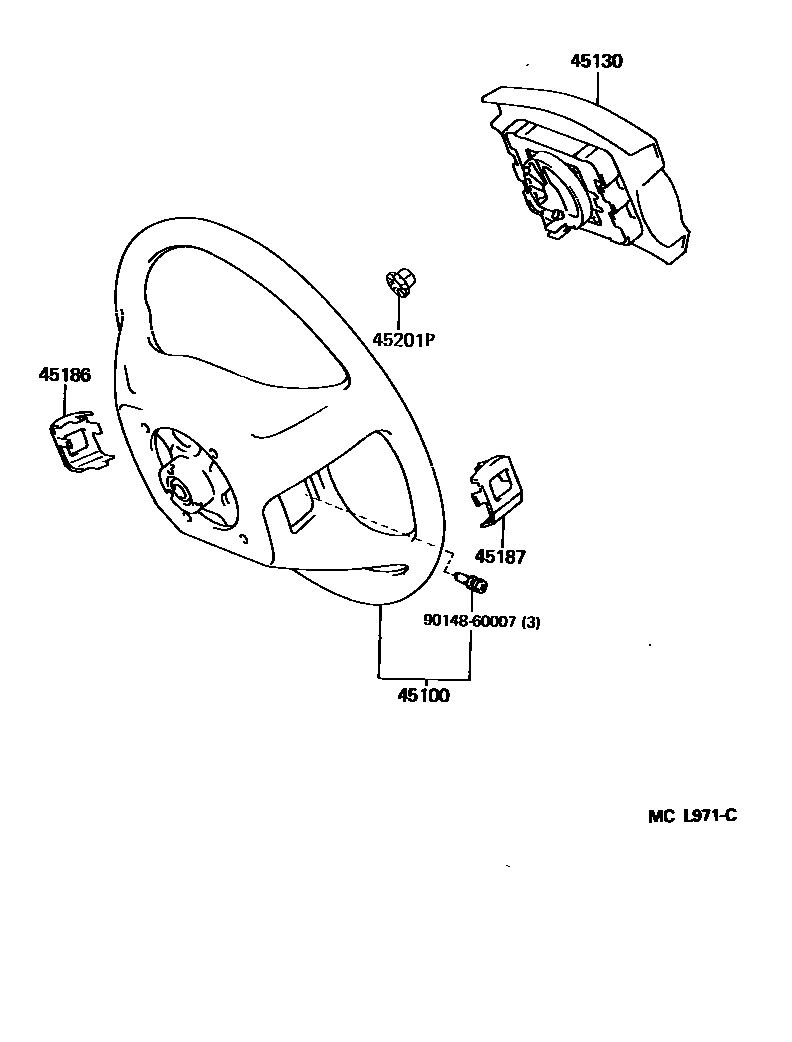

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45100 | Steering wheel assembly | 45100-06050 · 45100-06060 · 45100-06070 · 45100-06080 · 45100-32190 · 45100-32230 |
| 45105 | No. 1 horn button contact piece sub-assembly | 45105-32060 |
| 45112 | Steering wheel decorative cover | 45112-33100 |
| 45136F | No. 1 horn button contact piece | 45136-32110 |
| 45146B | No. 1 horn button contact spring | 45146-20140 |
| 45184 | Steering wheel boss lower cover | 45180-32080 |
| 45186 | No. 2 steering wheel lower cover | 45186-06010 · 45186-06020 |
| 45187 | No. 3 steering wheel lower cover | 45187-06010 |
| 45201P | Steering wheel fixing nut | 90179-12071 · 90179-12086 |
