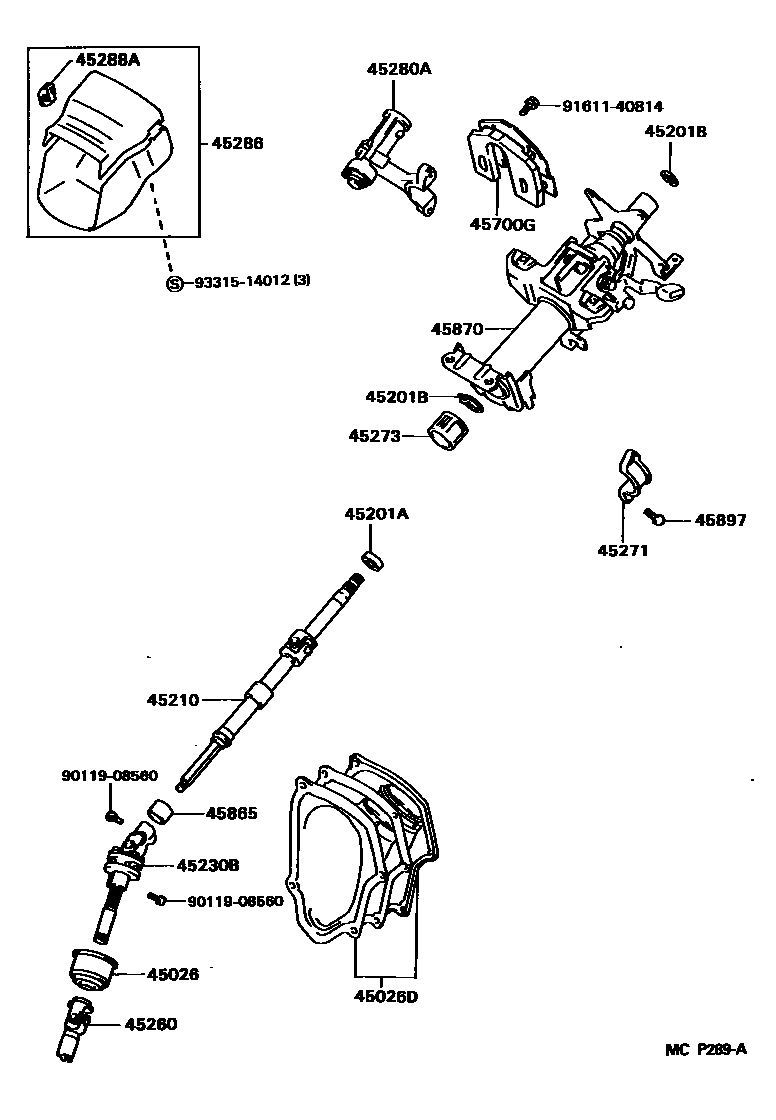

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-06010 · 45026-33010 |
| 45026D | Steering column hole cover sub-assembly | 45025-41010 |
| 45201A | Bearings (for steering spindle) | 90363-18005 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17004 · 90520-23055 |
| 45210 | Steering spindle assembly | 45210-06010 |
| 45230B | Steering shaft universal joint assembly | 45230-06010 · 45230-33010 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-06010 · 45260-33010 · 45260-33030 |
| 45271 | Clamp on steering column | 45271-33010 |
| 45273 | Steering spindle bushing | 45273-06010 · 45273-33010 |
| 45280A | Steering column upper bracket assembly | 45280-33050 |
| 45286 | steering column cover | 45286-06900 · 45286-33900 |
| 45700G | Steering damper assembly | 45700-33010 · 45700-33020 |
| 45865 | Steering spindle collar | 45865-06010 · 45865-33010 |
| 45870 | Steering column tube assembly | 45870-33050 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
