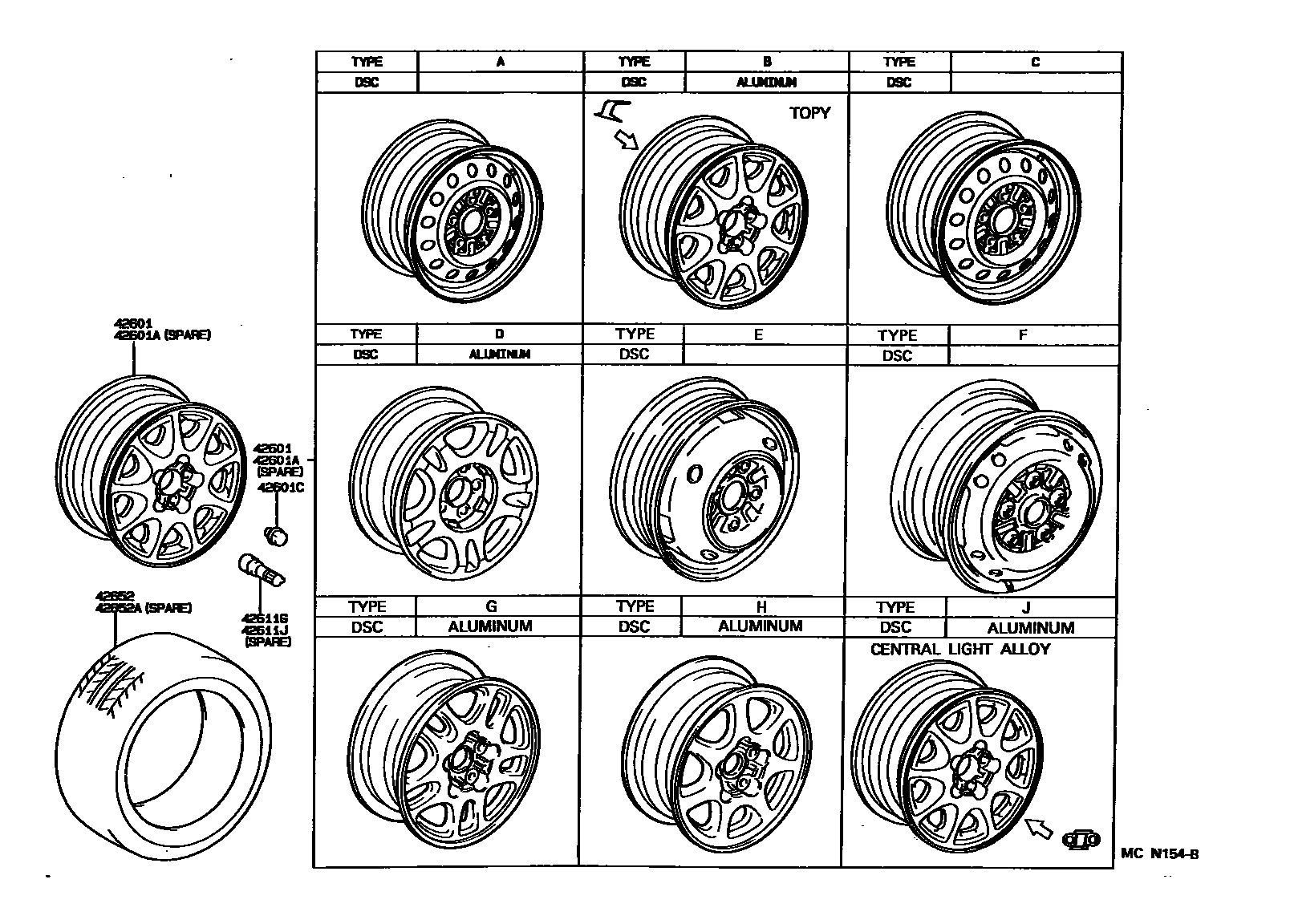

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-06010 · 42611-06020 · 42611-06030 · 42611-06040 · 42611-06070 · 42611-06090 · 42611-06100 · 42611-32290 · 42611-33020 · 42611-33050 |
| 42601A | Spoke wheel (for spare tire) | 42611-06010 · 42611-06030 · 42611-06050 · 42611-06060 |
| 42601C | Hub nut (for axle) | 90080-17035 · 90080-17036 · 90080-17038 · 90080-17097 · 90942-01021 · 90942-01062 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06010 · 42603-06020 · 42603-32160 · 42603-33030 · 42603-33031 · 42603-33040 |
| 42611G | Valve (for tubeless tires) | 90080-45001 · 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45001 |
| 42621 | wheel cover | 42621-06010 · 42621-06020 · 42621-06030 · 42621-AA010 |
| 42652 | tires | 42652-06060 · 42652-06090 · 42652-06100 |
| 42652A | Tire (for Spare Wheel) | 42652-06060 · 42652-06090 · 42652-06100 |
