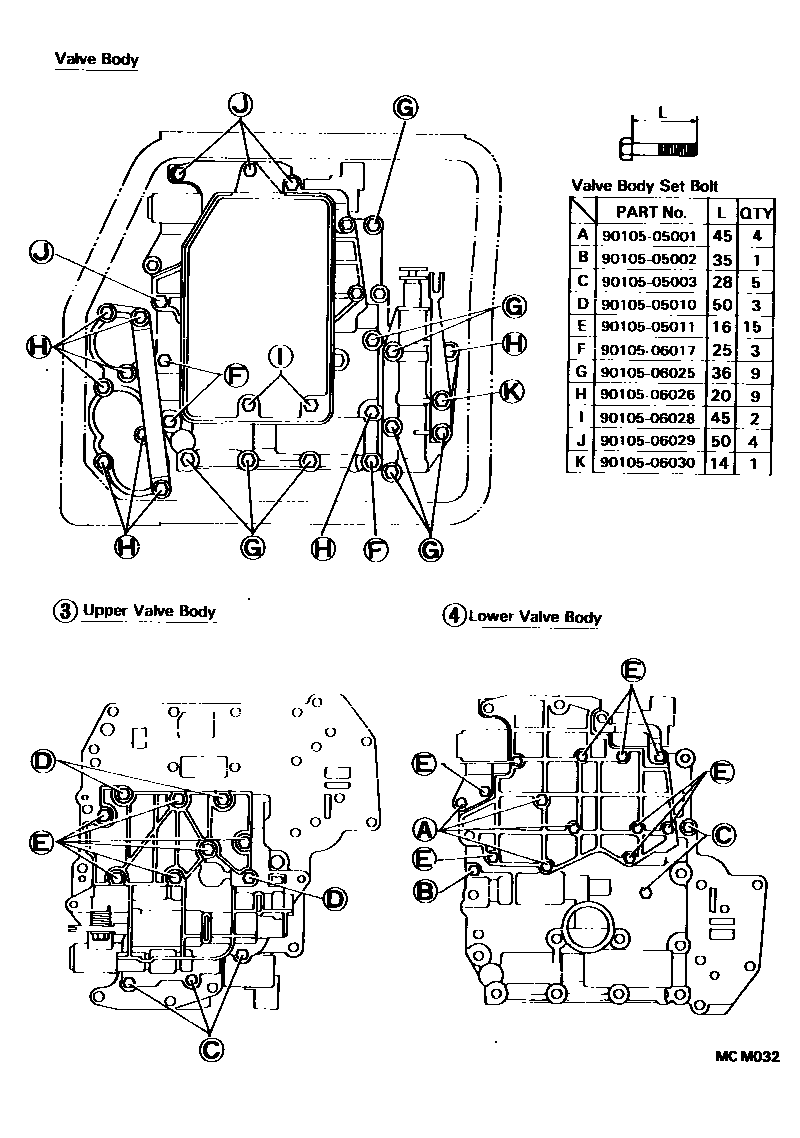

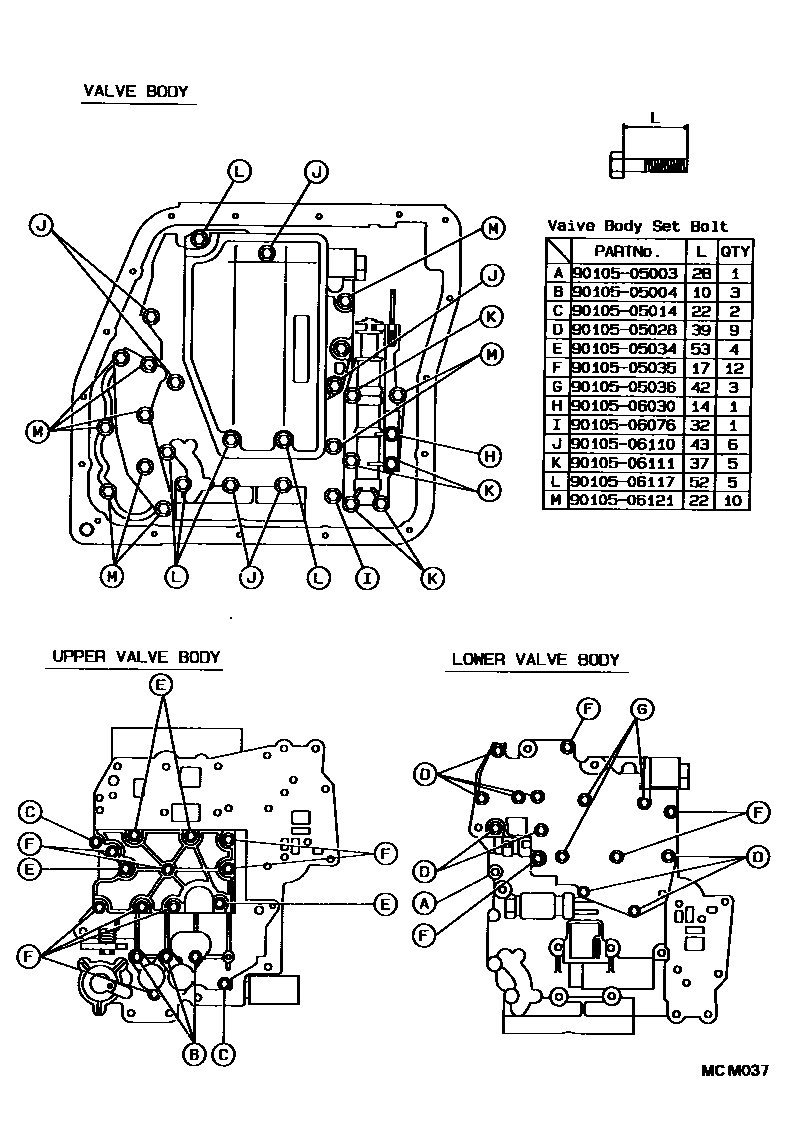

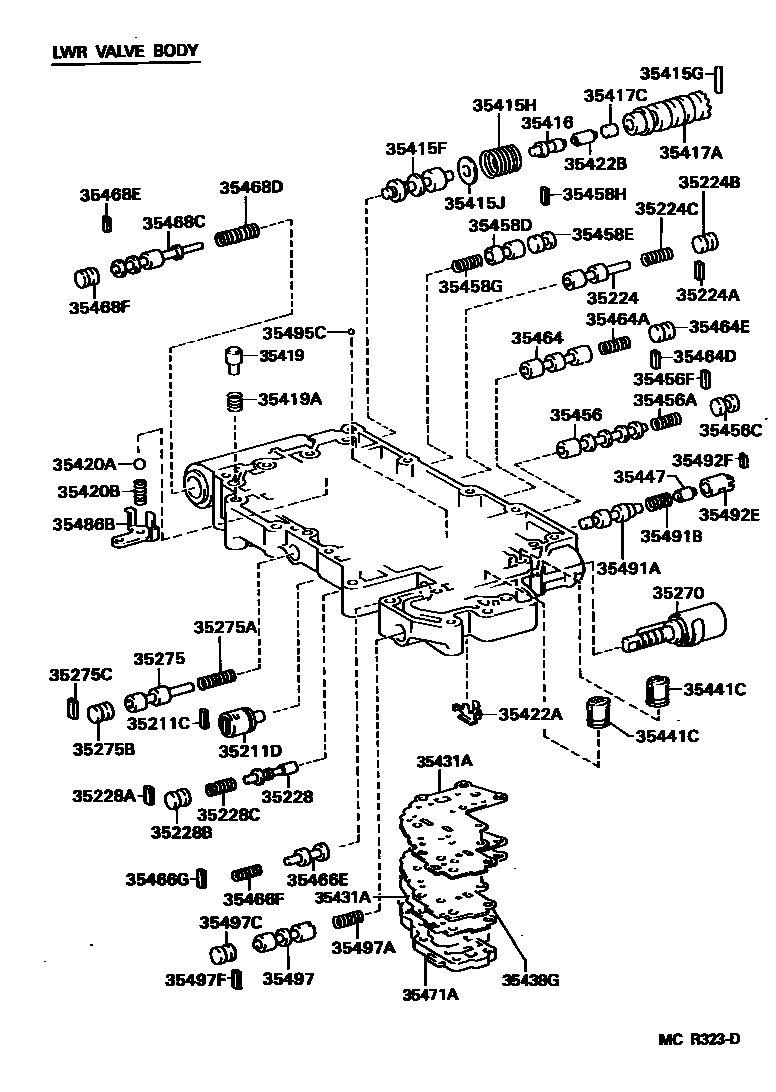

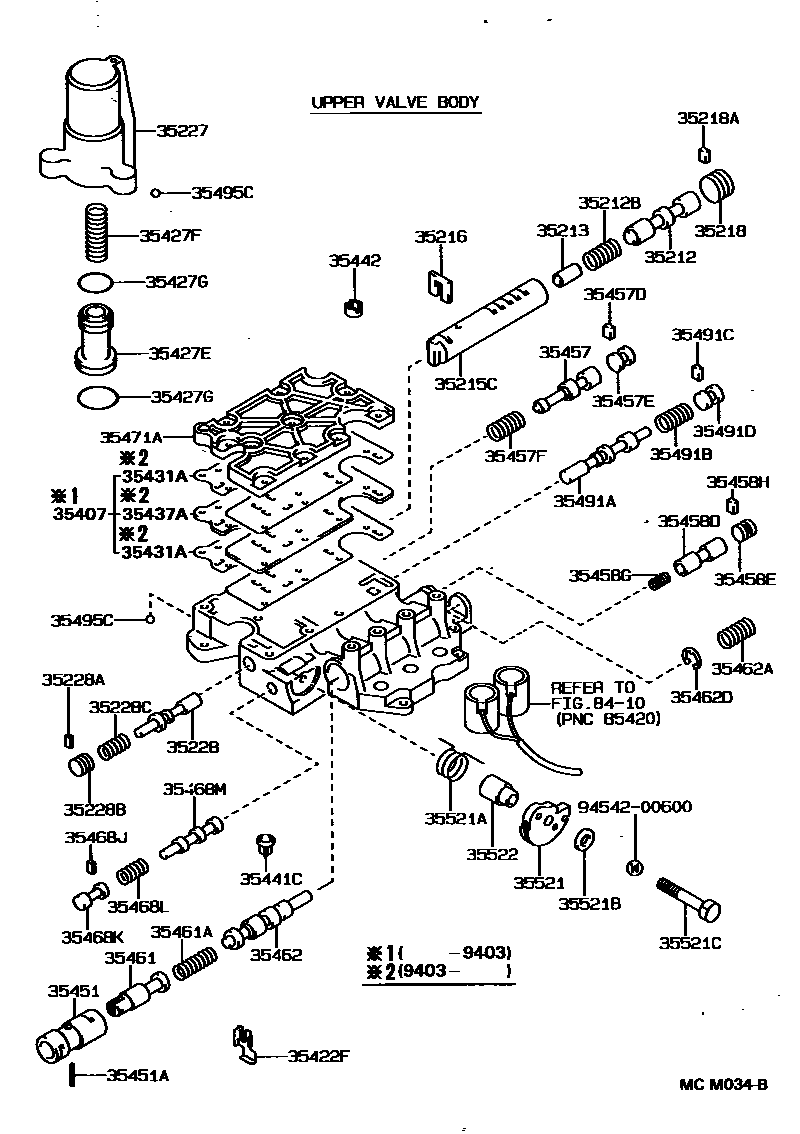

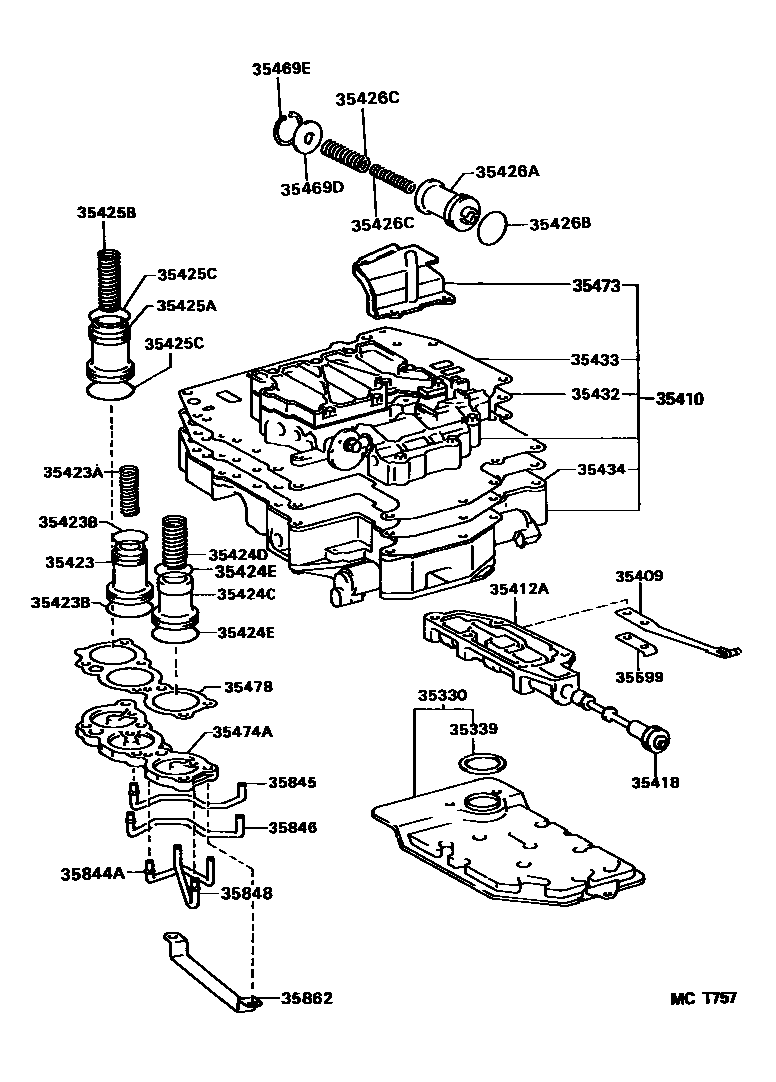

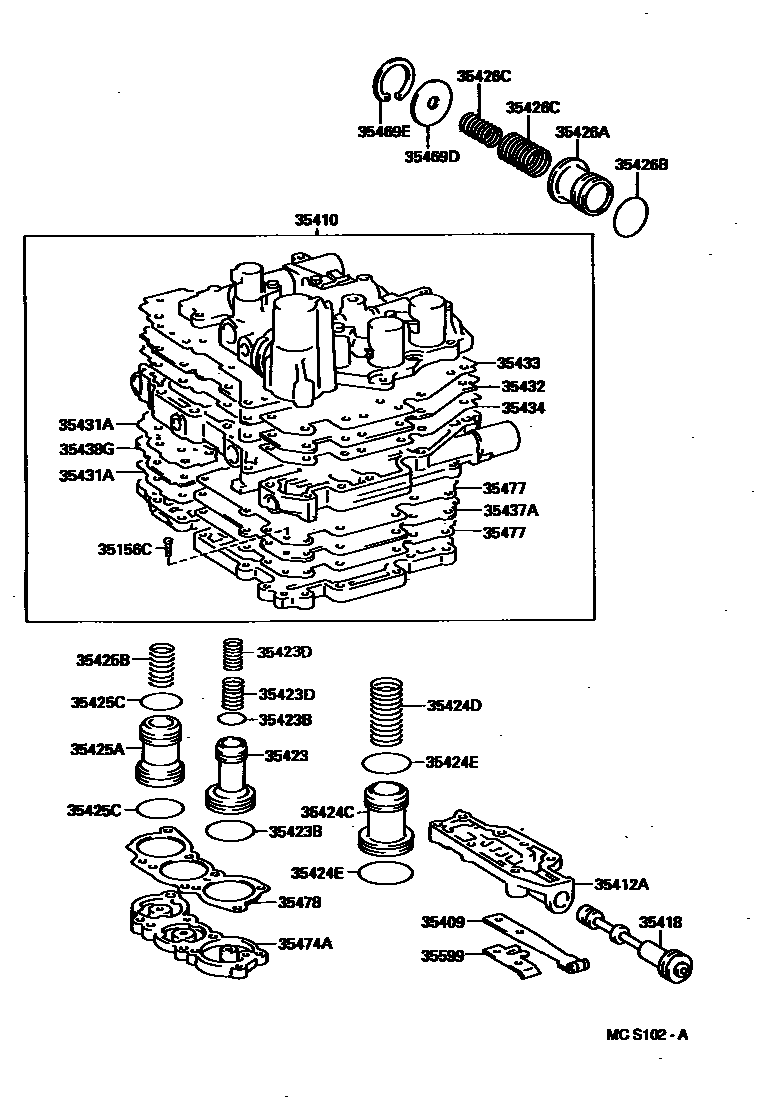

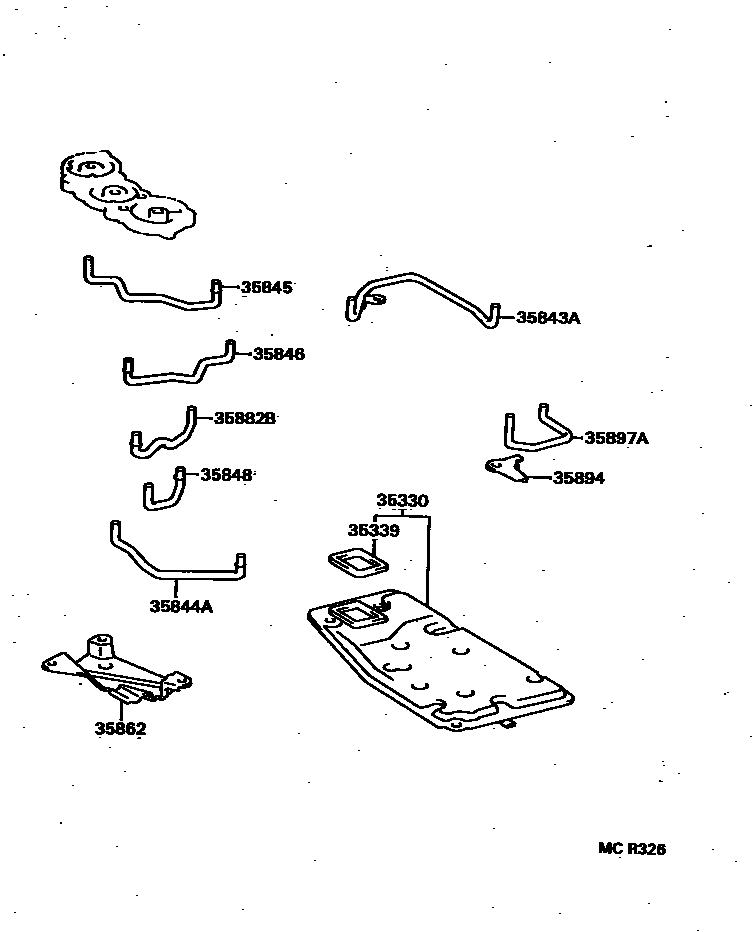

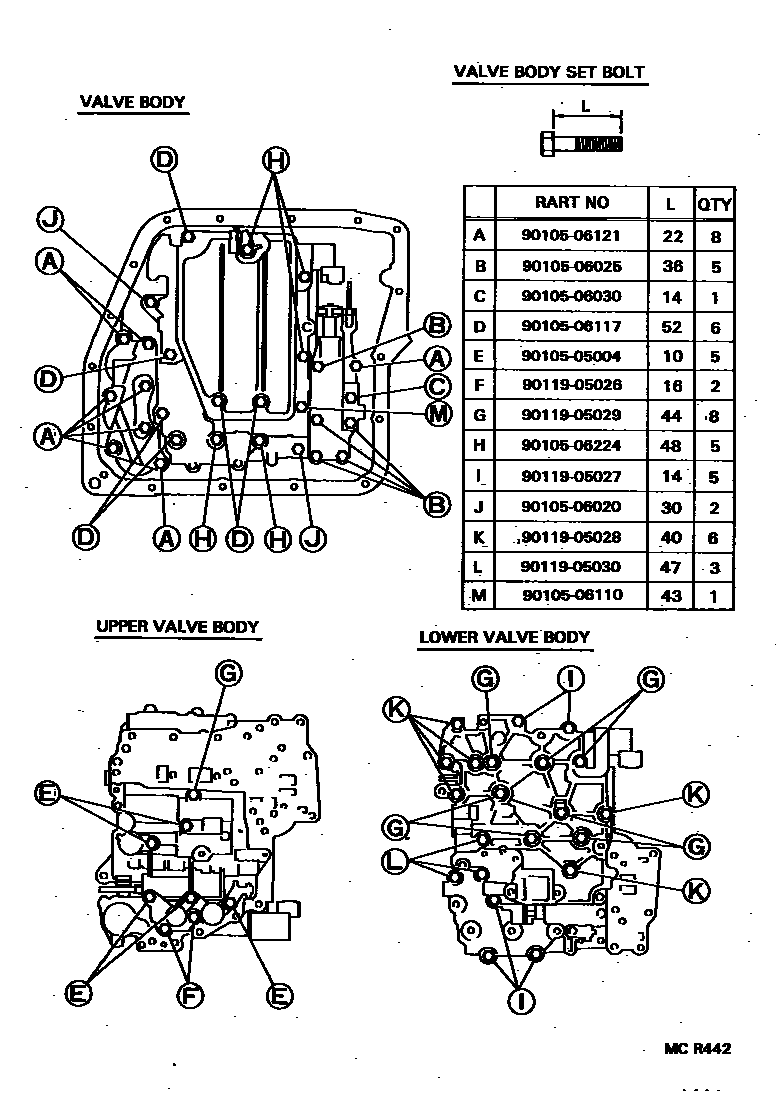

Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

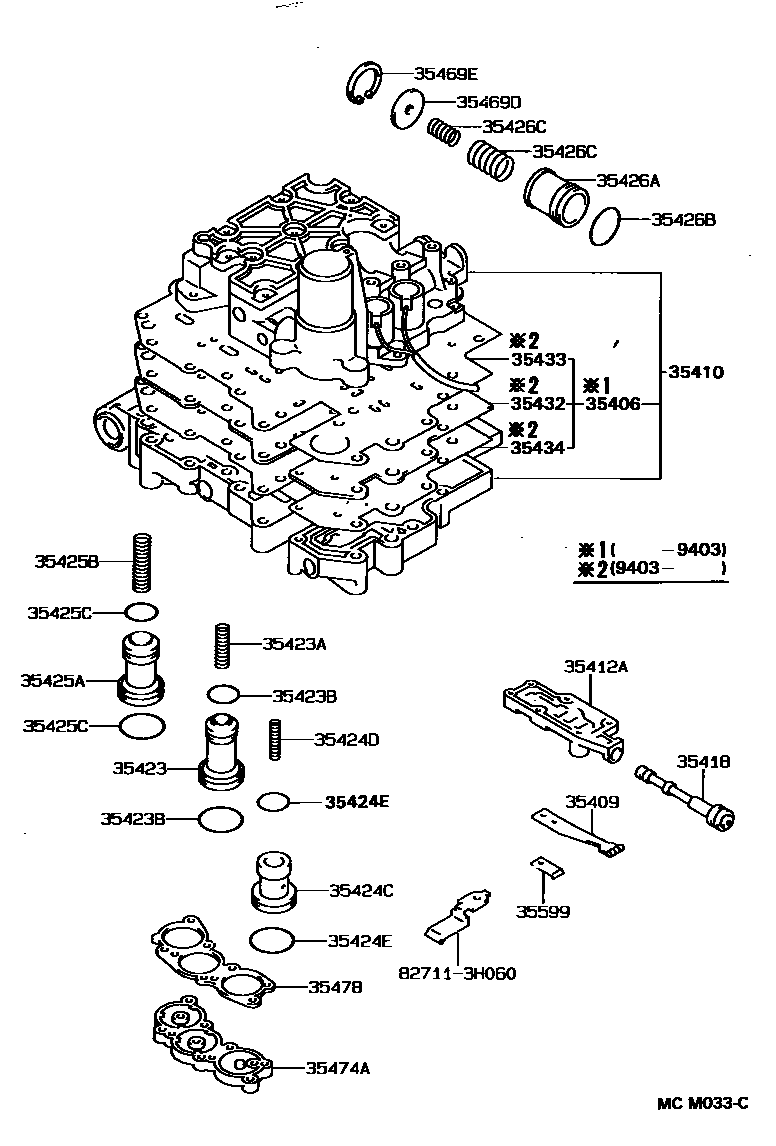

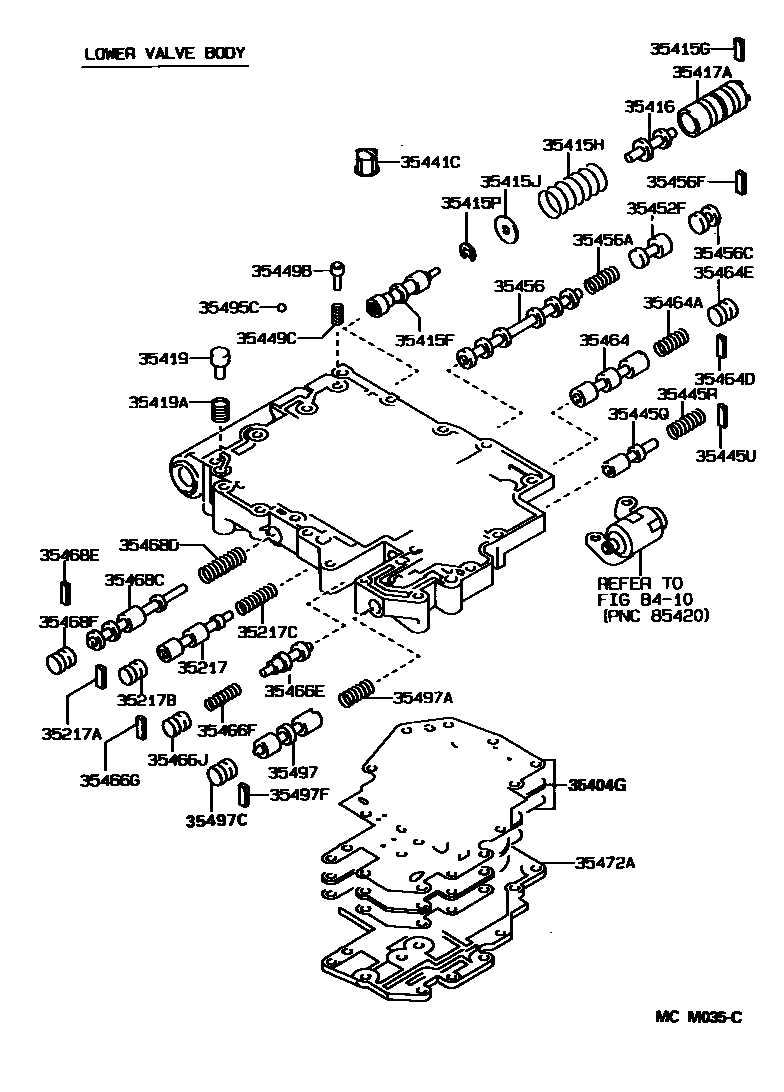

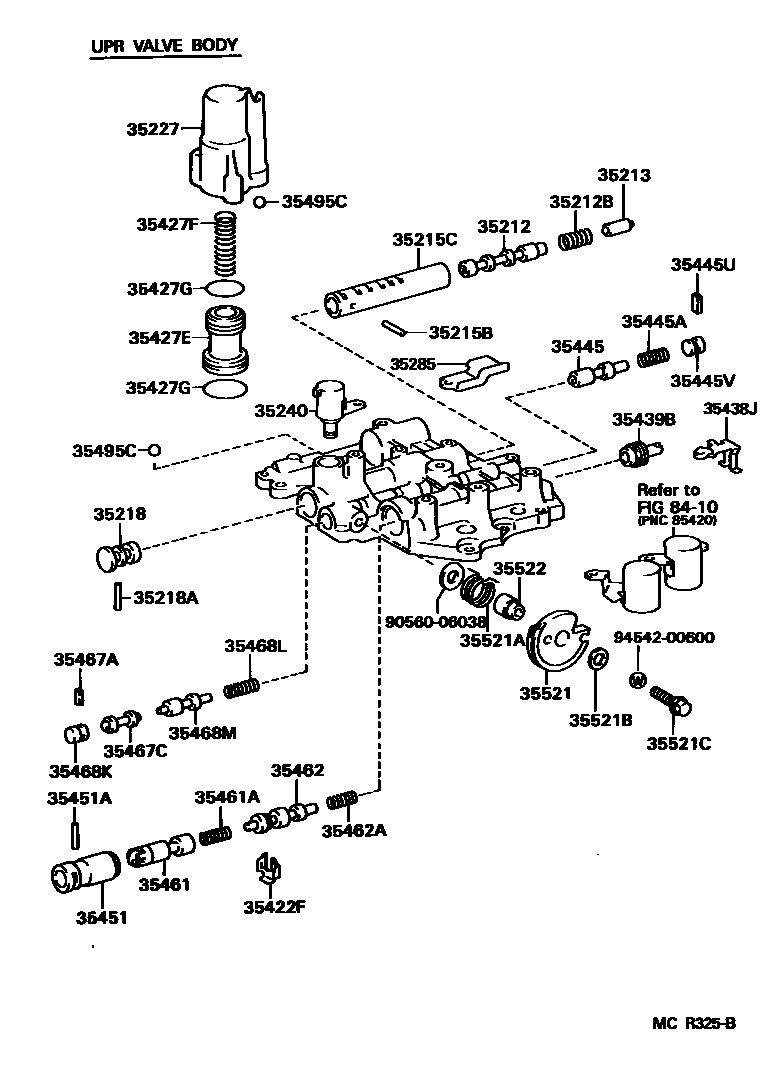

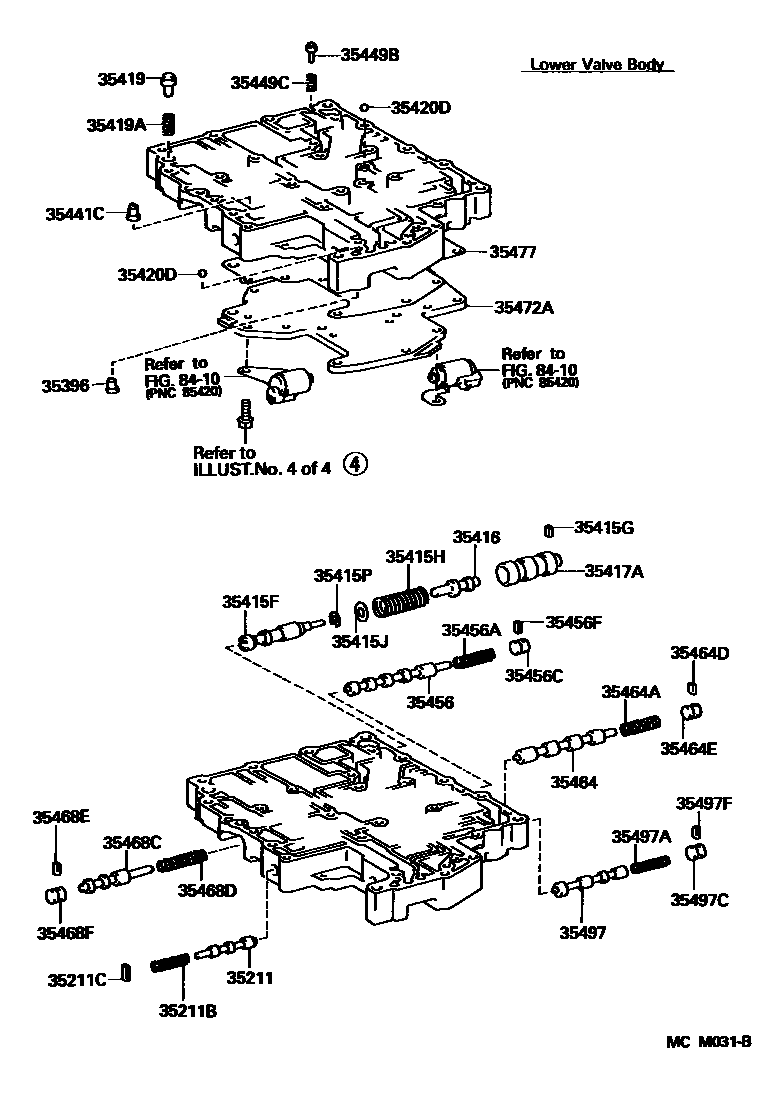

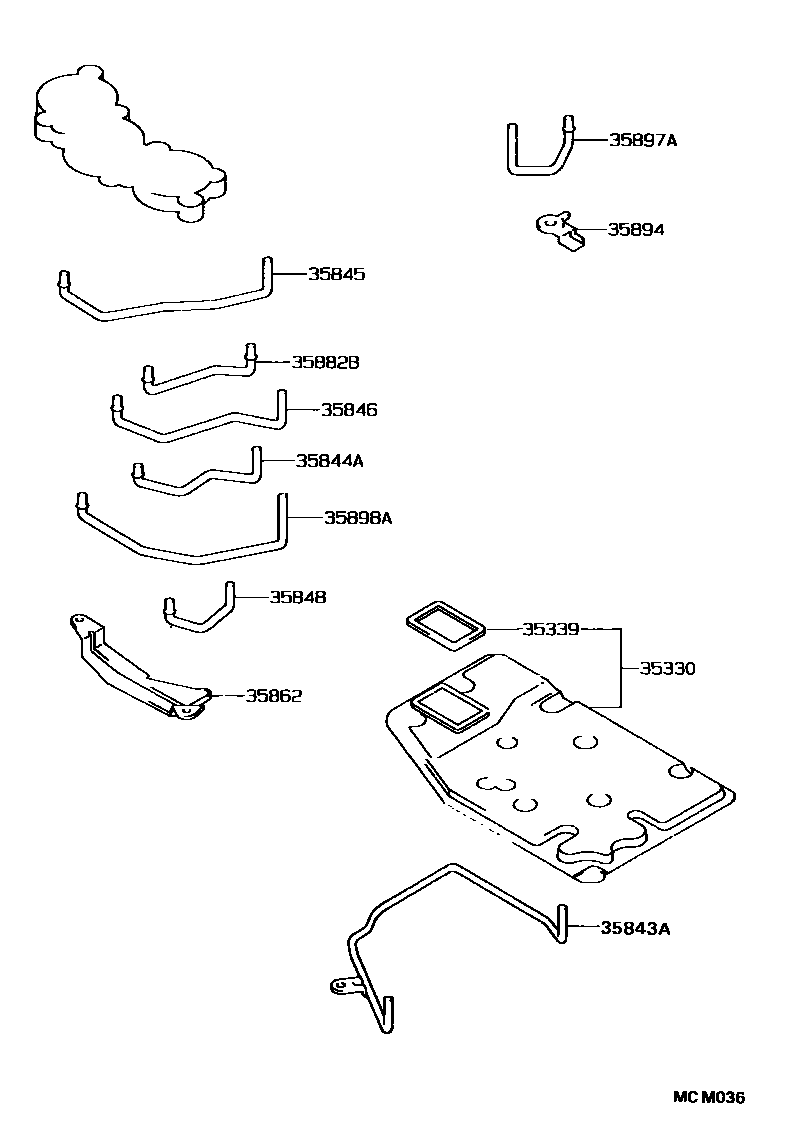

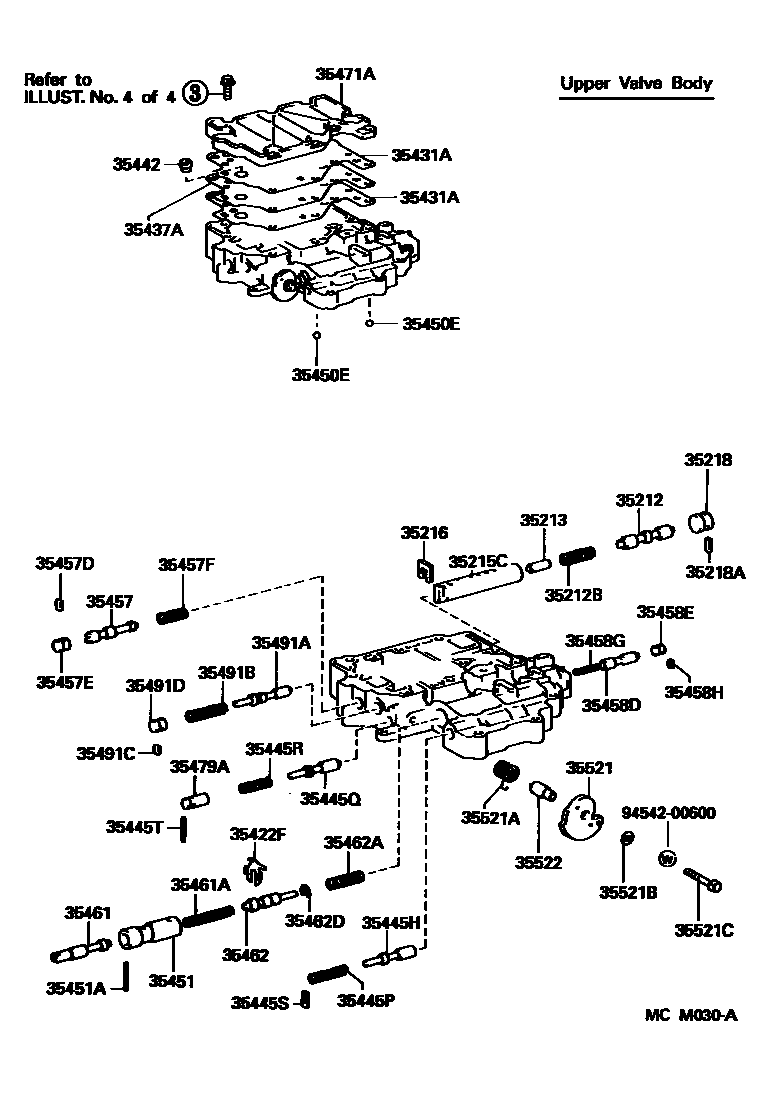

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 14 images and 174 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35156C | Bolt (for gearbox block No. 2) | 90149-40030 |
| 35211 | lock signal valve | 35211-32020 |
| 35211B | Compression spring (for locking signal valve) | 90501-07020 |
| 35211C | Straight key (for locking signal valve) | 90282-03001 · 90282-03003 |
| 35211D | Lock control valve sleeve | 35211-33010 |
| 35212 | lock relay valve | 35212-32010 · 35212-33010 |
| 35212B | Compression spring (for locking relay valve) | 90501-07023 · 90501-08149 |
| 35213 | Lock relay control valve | 35213-32010 · 35213-33010 |
| 35215B | Direct pin (for locking relay valve sleeve) | 90250-03084 · 90250-04101 |
| 35215C | No. 1 locking relay valve sleeve | 35215-32010 · 35215-33010 · 35215-33011 |
| 35216 | Valve sleeve stop | 35216-32010 · 35216-32020 |
| 35217 | No. 2 accumulator control valve | 35217-32010 |
| 35217A | Straight key (for No. 2 accumulator control valve) | 90282-03017 |
| 35217B | Plunger (for No. 2 accumulator control valve) | 90339-04003 |
| 35217C | compression spring | 90501-06034 |
| 35218 | Lock relay valve plunger | 35218-32010 · 35218-33010 · 35218-33011 |
| 35218A | Straight key (for locking the relay valve plunger) | 90250-03083 · 90282-03003 · 90282-03011 |
| 35224 | reverse gear control valve | 35224-33010 |
| 35224A | Straight key (for reverse gear control valve) | 90282-03007 |
| 35224B | Plunger (for reverse control valve) | 90339-04003 |
| 35224C | Compression spring (for reverse control valve) | 90501-10192 |
| 35227 | B-0 accumulator cylinder | 35227-32011 |
| 35228 | Second gear regulator valve | 35228-32010 |
| 35228A | Straight key (for second-speed regulator valve) | 90282-03011 · 90282-03018 |
| 35228B | Plunger (for second-speed regulator valve) | 90339-04025 · 90339-04047 |
| 35228C | Compression spring (for second-speed regulator valve) | 90501-09084 · 90501-09122 · 90501-09127 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-33010 |
| 35270 | Shift control solenoid valve assembly | 35270-33010 |
| 35275 | Solenoid regulator valve | 35275-33010 |
| 35275A | Compression spring (for solenoid regulator valve) | 90501-12154 |
| 35275B | Plunger (for solenoid regulator valve) | 90339-04028 |
| 35275C | direct key | 90282-03007 |
| 35285 | Solenoid valve lock plate | 35285-33010 |
| 35330 | Valve body oil filter assembly | 35330-32022 · 35330-32030 · 35330-33010 |
| 35339 | Oil filter gasket | 35339-32010 · 35339-32020 · 35339-33010 |
| 35396 | Throttle valve oil filter | 35396-32010 |
| 35404G | No. 2 valve body plate sub-assembly | 35404-32010 |
| 35406 | Valve body plate sub-assembly | 35406-32010 · 35406-32011 |
| 35407 | Valve body cover sub-assembly | 35407-32020 · 35407-32021 |
| 35409 | Manual lock spring sub-assembly | 35409-32030 |
| 35410 | Transmission valve body assembly | 35410-33020 · 35410-33030 · 35410-33031 · 35410-33032 · 35410-33040 · 35410-33041 · 35410-33042 |
| 35412A | Manual valve body | 35412-32010 · 35412-32020 |
| 35415F | Main regulator valve | 35415-32010 · 35415-32021 · 35415-33010 |
| 35415G | Straight key (for main regulator valve) | 90250-03085 · 90282-03001 · 90282-03017 |
| 35415H | Compression spring (for main regulator valve) | 90501-13037 · 90501-16065 · 90501-16120 |
| 35415J | Gasket (for main regulator valve) | 90201-06041 · 94614-10600 |
| 35415P | E-ring (for main regulator valve) | 90523-06004 |
| 35416 | No. 1 main regulator valve plunger | 35416-32030 · 35416-33010 · 35416-33020 |
| 35417A | Main regulator valve sleeve | 35417-32031 · 35417-33010 · 35417-33020 |
| 35417C | Plunger (for main regulator valve) | 90339-06020 |
| 35418 | Manual valve | 35418-32010 |
| 35419 | No. 1 one-way valve | 35419-32010 · 35419-33010 |
| 35419A | Compression spring (for one-way valve) | 90501-10056 |
| 35420A | Ball (for pressure reducing valve) | 90360-10006 |
| 35420B | Spring (for pressure reducing valve) | 90501-15013 |
| 35420D | Ball (for lower valve body) | 35495-22020 |
| 35422A | Valve damping stop | 35422-33010 |
| 35422B | No. 2 main regulator valve plunger | 35422-33030 |
| 35422F | Valve damping stop | 35422-32010 · 35422-32020 · 35422-33020 |
| 35423 | B-2 Accumulator Piston | 35403-20010 · 35403-33010 · 35403-33020 · 35403-33030 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-23108 · 90501-25031 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-21006 · 90301-22185 · 90301-29187 · 90301-30005 |
| 35423D | Compression spring (for B-2 accumulator piston) | 90501-14152 · 90501-25046 · 90905-01017 |
| 35424C | C-1 Accumulator Piston | 35424-20020 · 35424-32021 · 35424-33010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-20109 · 90501-20132 · 90501-27024 · 90501-28018 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-23194 · 90301-29187 · 90301-30005 · 90301-36006 |
| 35425A | C-2 Accumulator Piston | 35405-20010 · 35405-32010 · 35405-33020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-20126 · 90501-21020 · 90501-22026 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-25002 · 90301-26010 · 90301-26190 · 90301-29187 · 90301-34007 |
| 35426A | C-0 Accumulator Piston | 35426-20010 · 35426-32020 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-22185 · 90301-30005 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-18064 · 90501-19004 · 90501-26036 · 90501-29019 |
| 35427E | B-0 accumulator piston | 35401-32011 |
| 35427F | Compression spring (for B-0 accumulator piston) | 90501-17026 · 90501-18104 |
| 35427G | O-ring (for B-0 accumulator piston) | 90301-20002 · 90301-25002 |
| 35431A | Upper body cover gasket | 35431-32010 · 35431-33010 · 35435-33010 · 35436-33010 |
| 35432 | No. 1 valve body plate | 35432-33020 · 35432-33030 · 35432-33031 |
| 35433 | No. 1 valve body gasket | 35433-20040 · 35433-33010 · 35433-33011 |
| 35434 | No. 2 valve body gasket | 35434-20020 · 35434-33010 · 35434-33011 |
| 35437A | Upper valve body cover | 35437-32010 · 35437-33010 |
| 35438G | No. 2 valve body plate | 35438-33020 |
| 35438J | Throttle valve spring seat | 35438-33030 |
| 35439B | Throttle valve screw | 35439-33010 |
| 35441C | Solenoid valve oil filter | 35441-32020 |
| 35442 | Throttle regulator oil filter | 35442-32010 · 35442-32020 |
| 35445 | Low speed regulator valve | 35445-33010 |
| 35445A | Compression spring (for low speed regulator valve) | 90501-08154 |
| 35445H | Second gear slide regulator valve | 35445-32010 |
| 35445P | Compression spring (for second gear coast regulator valve) | 90501-11013 |
| 35445Q | Low gear coast regulator valve | 35445-32010 |
| 35445R | Compression spring (for low range coast regulator valve) | 90501-09034 · 90501-09086 |
| 35445S | Straight key (for second gear slide regulator valve) | 90282-03003 |
| 35445T | Direct sales (for low speed coasting regulator valve) | 90250-03035 |
| 35445U | Straight key (for low speed coast regulator valve) | 90282-03002 · 90282-03007 |
| 35445V | Plunger (for low range coast regulator valve) | 90339-04028 |
| 35447 | Accumulator control valve plunger | 35447-33010 |
| 35449B | Pressure reducing valve | 35449-32010 |
| 35449C | Compression spring (for pressure reducing valve) | 90501-09032 |
| 35450E | Ball (for upper valve body) | 90360-06023 |
| 35451 | Throttle valve sleeve | 35451-32010 · 35451-33010 |
| 35451A | Direct sales (with throttle sleeve) | 90250-03036 · 90250-03086 |
| 35452F | 2nd-3rd gear shift valve plunger | 35452-32010 |
| 35456 | 2nd-3rd gear shift valve | 35456-32020 · 35456-32030 · 35456-33010 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-09033 · 90501-09088 |
| 35456C | Plunger (for 2-3 gear shift valve) | 90339-04026 · 90339-05017 |
| 35456F | Straight key (for 2-3 gear shift valve) | 90282-03004 · 90282-03007 · 90282-03017 |
| 35457 | Throttle regulator valve | 35457-32010 |
| 35457D | Straight key (for throttle regulator valve) | 90282-03001 · 90282-03011 |
| 35457E | Plunger (for throttle regulator valve) | 90339-04003 · 90339-04026 |
| 35457F | Compression spring (for throttle regulator valve) | 90501-09037 |
| 35458D | reverse valve | 35458-32010 · 35458-33010 |
| 35458E | Plunger (for reverse valve) | 90339-04028 |
| 35458G | Compression spring (for reverse valve) | 90501-06026 |
| 35458H | Straight key (for reverse valve) | 90282-03001 · 90282-03011 · 90282-03017 |
| 35461 | Downshift plug | 35408-32010 · 35408-33010 |
| 35461A | Compression spring (for downshift plug) | 90501-10054 · 90501-10120 · 90501-10185 · 90501-10190 |
| 35462 | throttle valve | 35462-32010 · 35462-33010 |
| 35462A | Compression spring (for throttle valve) | 90501-07022 · 90501-08148 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35464 | 1-2 gear shift valve | 35464-32010 · 35464-32030 · 35464-33010 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-09033 · 90501-09083 · 90501-09116 |
| 35464D | Straight key (for 1-2 gear shift valve) | 90282-03001 · 90282-03007 · 90282-03011 |
| 35464E | Plunger (for 1-2 gear shift valve) | 90339-04025 · 90339-04026 |
| 35466E | Second gear lock valve | 35466-32010 · 35466-33010 |
| 35466F | Compression spring (for second gear lock valve) | 90501-06047 · 90501-07106 |
| 35466G | Straight key (for second gear lock valve) | 90282-03002 |
| 35466J | Plunger (for second gear lock valve) | 90339-04028 |
| 35467A | Straight key (for intermediate shift valve) | 90282-03017 |
| 35467C | Throttle control valve plunger | 35467-33010 |
| 35468C | Secondary regulator valve | 35468-20010 · 35468-32030 · 35468-33020 · 35468-33040 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-13020 · 90501-14115 · 90501-14144 |
| 35468E | Straight key (for secondary regulator valve) | 90282-03003 · 90282-03012 · 90282-03014 |
| 35468F | Plunger (for secondary regulator valve) | 90339-04025 · 90339-04026 · 90339-04047 |
| 35468J | Straight key (for B-1 throttle control valve) | 90282-03001 |
| 35468K | Plunger (for B-1 throttle control valve) | 90339-04022 · 90339-04048 |
| 35468L | Compression spring (for B-1 throttle control valve) | 90501-08100 |
| 35468M | B-1 Throttle Control Valve | 35468-32020 · 35468-33030 |
| 35469D | Spacer (for C-0 accumulator piston) | 35469-20010 · 35469-32020 · 35469-33010 |
| 35469E | Snap ring (for C-0 accumulator piston spacer) | 96151-03000 · 96151-03700 |
| 35471A | Upper valve body cover | 35471-32010 · 35471-32020 · 35471-33010 |
| 35472A | Lower valve body cover | 35472-32010 · 35472-32060 · 35472-33020 |
| 35473 | Transmission valve body cover | 35473-32010 |
| 35474A | Accumulator cover | 35474-20010 · 35474-32030 · 35474-33010 |
| 35477 | Valve body cover gasket | 35477-32010 · 35477-33020 · 35477-33021 · 35488-33010 |
| 35478 | Accumulator cover gasket | 35478-32010 · 35478-32020 · 35478-33010 |
| 35479A | Low speed regulator valve spring seat | 35479-32010 |
| 35486B | Pressure reducing valve spring seat | 35486-33010 |
| 35491A | No. 1 accumulator control valve | 35491-32010 · 35491-32020 · 35491-33010 |
| 35491B | Compression spring (for No. 1 accumulator control valve) | 90501-10145 · 90501-10172 · 90501-10191 |
| 35491C | Straight key (for No. 1 accumulator control valve) | 90282-03002 · 90282-03011 |
| 35491D | Plunger (for No. 1 accumulator control valve) | 90339-04025 · 90339-04026 |
| 35492E | Accumulator control valve sleeve | 35492-33010 · 35492-33011 |
| 35492F | Straight key (for overdrive exhaust valve) | 90282-03007 |
| 35495C | One-way ball No. 1 | 35495-22020 |
| 35497 | 3rd-4th gear shift valve | 35497-32010 · 35497-32030 · 35497-33010 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-09033 · 90501-09083 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90339-04025 · 90339-04026 |
| 35497F | Straight key (for 3-4 gear shift valve) | 90282-03004 · 90282-03011 |
| 35521 | throttle cam | 35521-20040 · 35521-33010 · 35521-33020 |
| 35521A | Spring (for throttle cam return) | 90508-11003 · 90949-03008 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35521C | Bolt (for throttle cam assembly) | 90101-06021 · 90101-06026 · 90101-06037 |
| 35522 | Throttle valve cam pin | 35522-22010 · 35522-33010 |
| 35599 | Manual locking spring cover | 35599-32010 · 35599-32020 |
| 35843A | Transfer case lubricating oil supply pipe | 35843-32011 · 35843-33010 |
| 35844A | No. 1 accumulator back pressure pipe | 35844-32011 · 35844-32030 · 35844-33010 · 35844-33020 |
| 35845 | Rear clutch accumulator tube | 35845-32012 · 35845-32020 · 35845-33010 |
| 35846 | brake accumulator pipe | 35846-20010 · 35846-32030 · 35846-33010 |
| 35848 | Forward clutch accumulator tube | 35848-32011 · 35848-32020 · 35848-33010 |
| 35862 | Accumulator fuel supply pipe bracket | 35862-32011 · 35862-32020 · 35862-33010 · 35862-33020 |
| 35882B | Rear servo oil supply pipe | 35882-32010 · 35882-33010 |
| 35894 | Accumulator tube bracket | 35894-32010 · 35894-33010 |
| 35897A | No. 1 first and reverse brake pipe | 35897-32010 · 35897-33010 |
| 35898A | No. 2 accumulator back pressure pipe | 35898-32010 |
