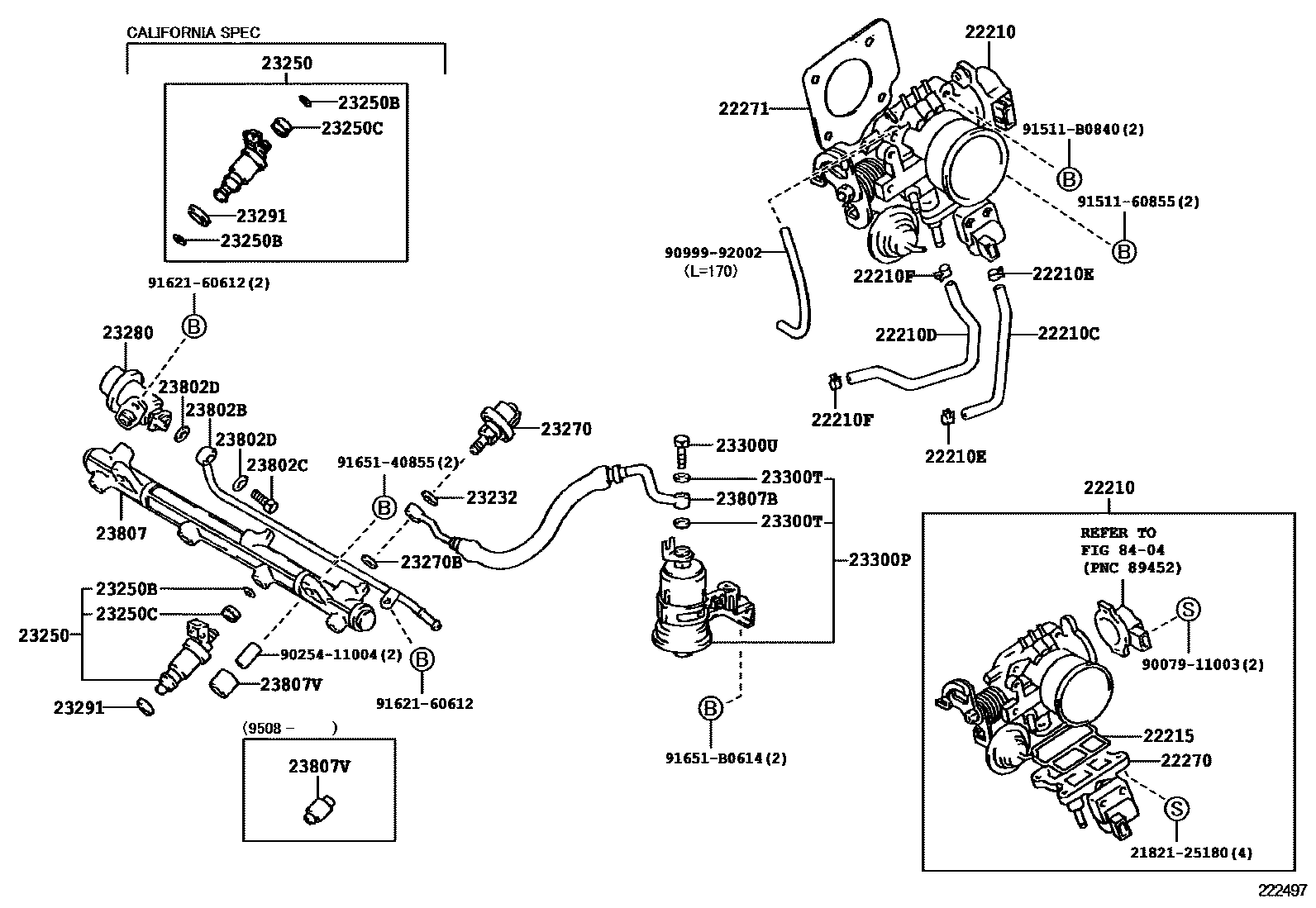

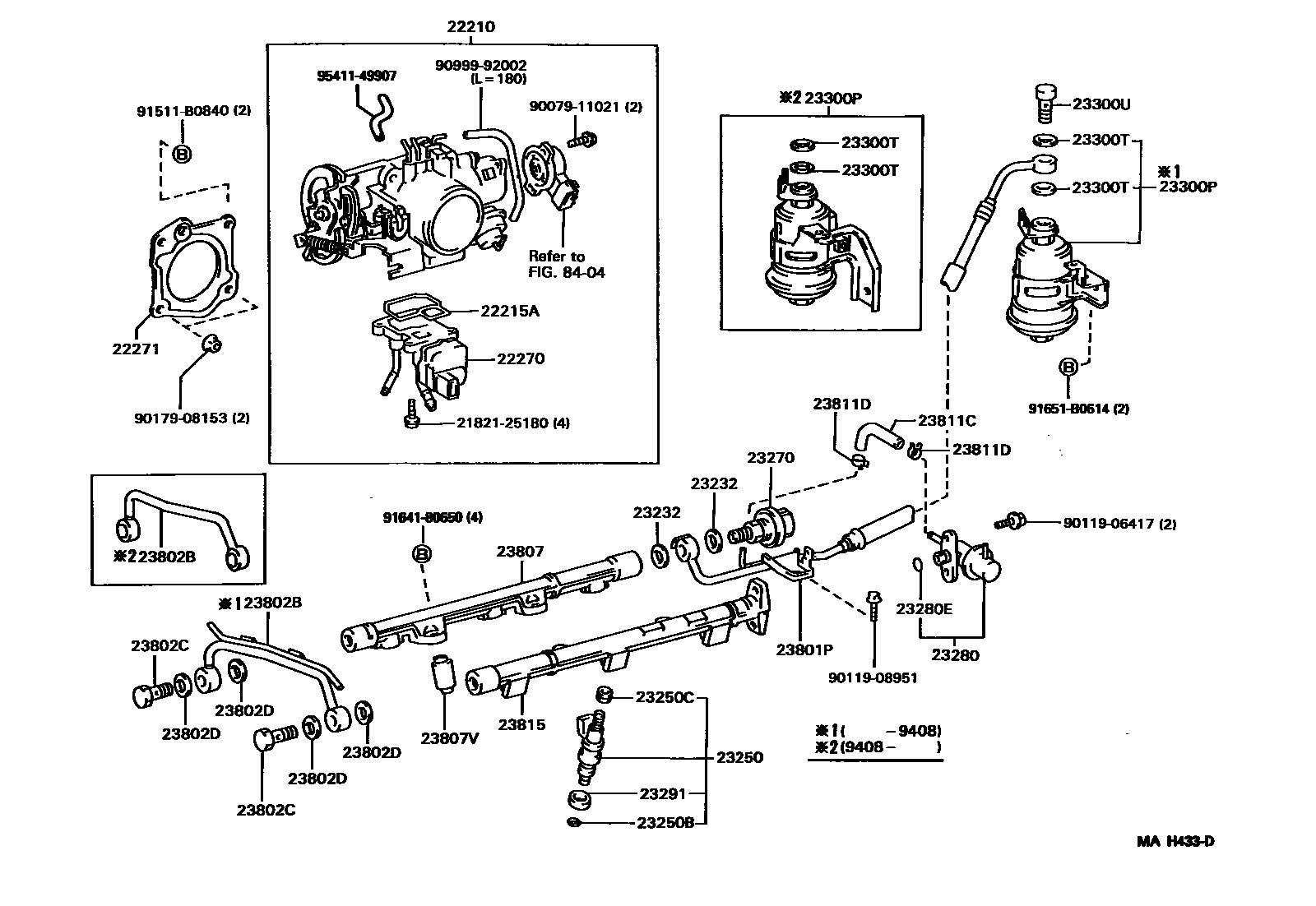

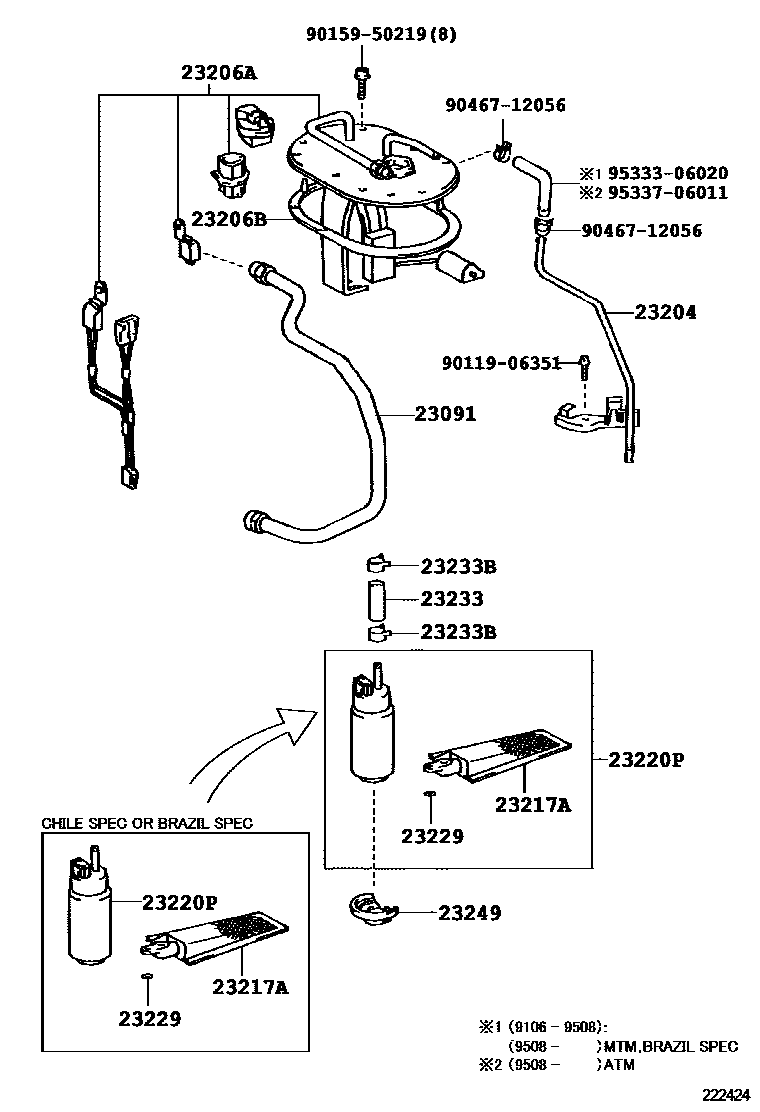

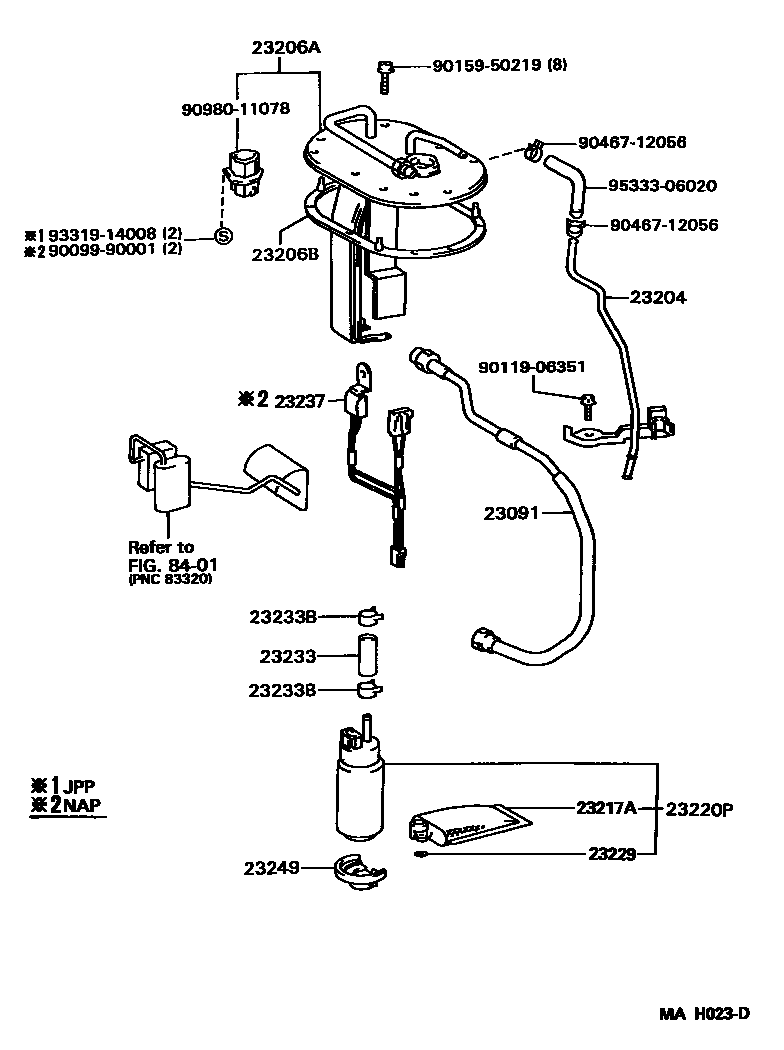

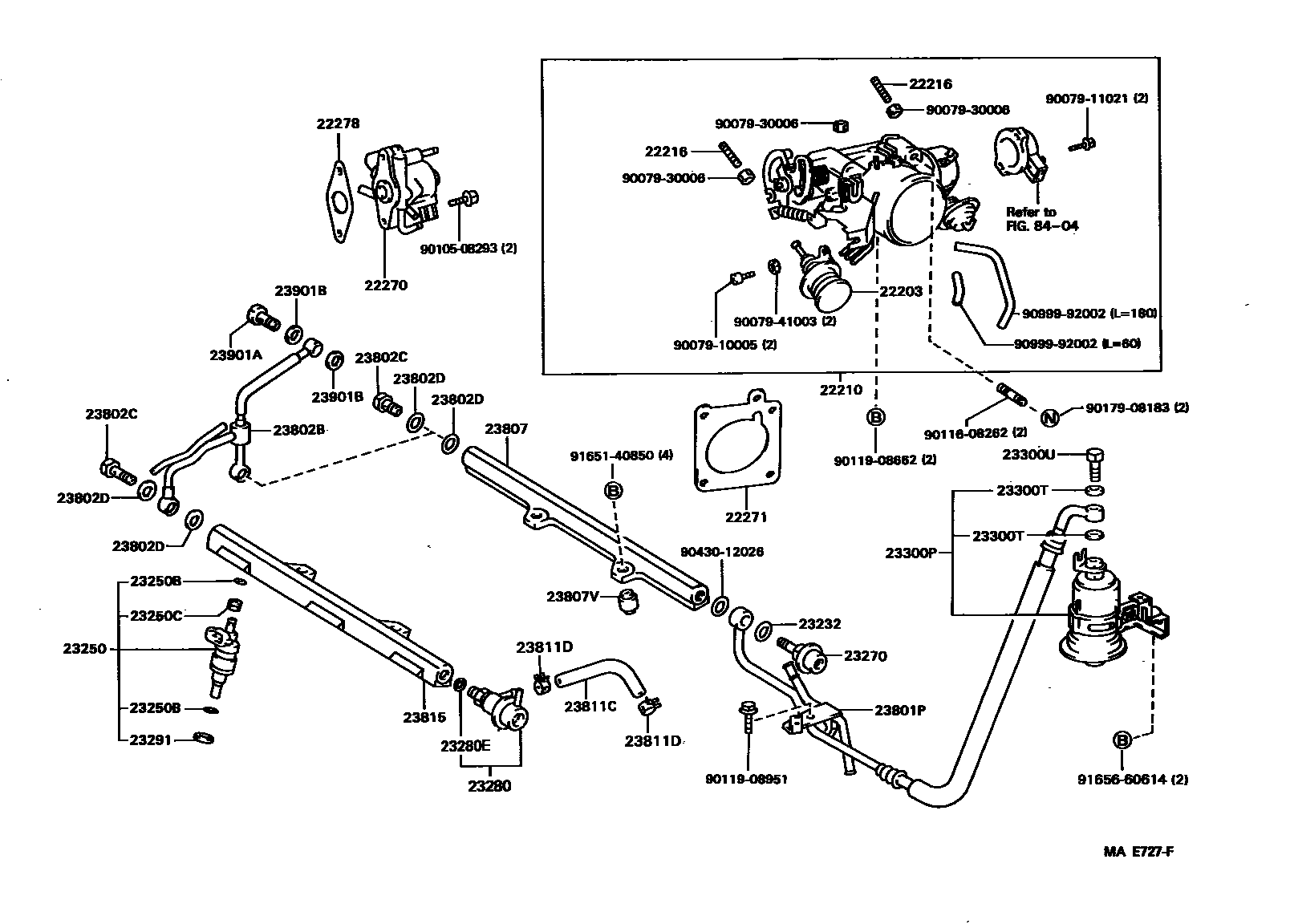

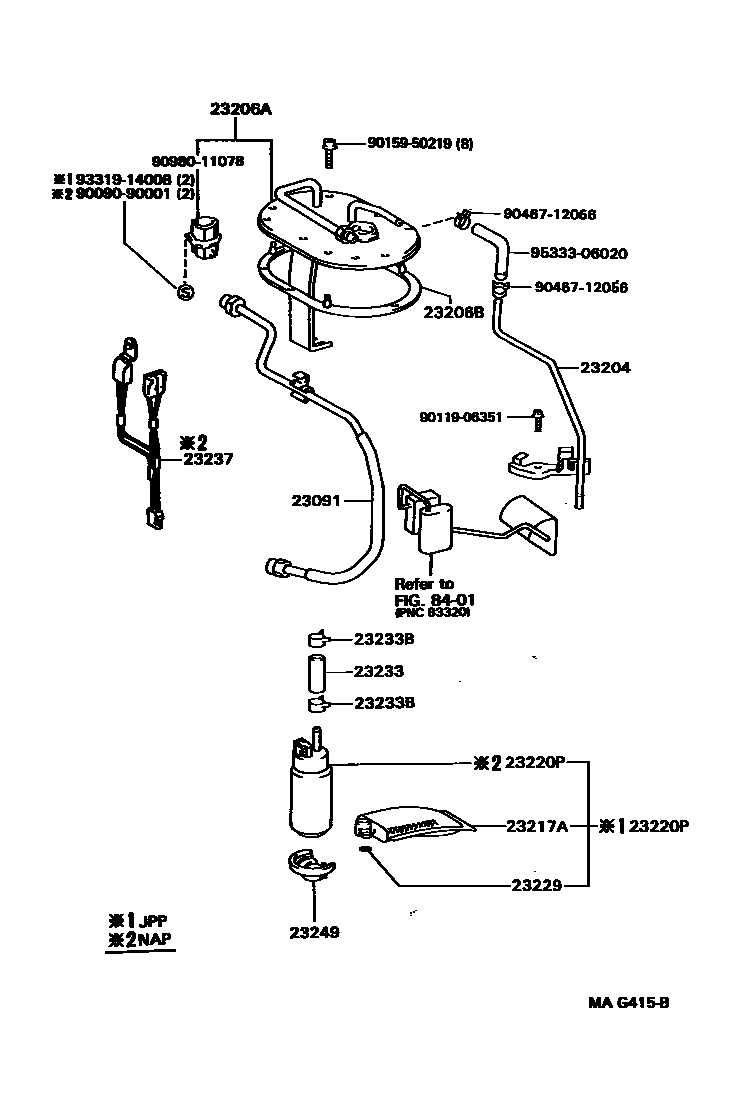

Toyota CAMRY 燃油喷射系统 — Figure 2211
Toyota CAMRY EPC diagram 2211, 燃油喷射系统, with 6 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22202-62080 |
| 22210 | Throttle body assembly | 22210-03010 · 22210-03011 · 22210-03012 · 22210-03020 · 22210-03021 · 22210-03022 · 22210-03030 · 22210-03031 · 22210-03040 · 22210-03041 · 22210-0A010 · 22210-0A011 · 22210-0A030 · 22210-20010 · 22210-20011 · 22210-20012 · 22210-20030 · 22210-62080 · 22210-62090 · 22210-74580 · 22210-74581 · 22210-74590 · 22210-74591 · 22210-7A040 · 22210-7A041 · 22210-7A050 · 22210-7A051 · 22210-7A330 · 22210-7A340 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16283-03010 · 16283-74010 |
| 22210D | HOSE, WATER BY-PASS, NO.2 | 16282-03010 · 16282-74050 · 16282-74080 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 90467-13050 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 90467-13050 |
| 22215 | Throttle body cover gasket | 22215-03010 · 22215-74400 |
| 22215A | Idle speed control valve gasket | 22215-0A010 · 22215-20010 |
| 22216 | Deceleration buffer adjustment screw | 90079-13009 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-03010 · 22270-03011 · 22270-03020 · 22270-0A010 · 22270-0A020 · 22270-20010 · 22270-20020 · 22270-62020 · 22270-74090 · 22270-74100 · 22270-74170 · 22270-74180 · 22270-74190 · 22270-74200 · 22270-74280 · 22270-74290 |
| 22271 | Throttle body gasket | 22271-03020 · 22271-0A010 · 22271-20010 · 22271-62030 · 22271-74021 · 22271-74022 |
| 22278 | Idle speed control valve gasket | 22278-62030 |
| 23091 | Fuel pump pipe sub-assembly | 23091-62010 |
| 23204 | Fuel pump return pipe sub-assembly | 23204-03010 · 23204-62010 |
| 23206A | fuel pump bracket | 23206-03010 |
| 23206B | fuel pump bracket gasket | 77169-06010 |
| 23217A | fuel pump filter | 23217-03020 · 23217-62020 |
| 23220P | fuel pump assembly | 23220-03020 · 23220-74020 |
| 23229 | Clip (for fuel pump filter) | 23219-03010 · 23229-16010 |
| 23232 | Gasket (for fuel pump hose) | 23232-41081 |
| 23233 | fuel pump hose | 23233-02010 · 23239-63010 |
| 23233B | Clamp (for fuel pump hose) | 90467-13054 |
| 23237 | Lead sub-assembly | 23237-02010 |
| 23249 | Rubber gasket (for fuel pump) | 23218-02010 · 23249-74610 |
| 23250 | Fuel injector assembly | 23209-20010 · 23209-62030 · 23209-74100 · 23209-74140 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 · 23207-74010 · 23270-62010 |
| 23270B | Gasket (for pulsation damper hose) | 23232-41081 |
| 23280 | Fuel pressure regulator assembly | 23280-20010 · 23280-62020 · 23280-74100 · 23280-74150 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 · 90301-09002 |
| 23291 | Injector vibration isolation pad | 23291-41010 · 23291-62010 |
| 23300P | Fuel filter (for EFI) | 23300-29045 · 23300-79305 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 · 96341-11200 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-20020 · 23801-20021 · 23801-62040 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-03021 · 23802-03022 · 23802-0A011 · 23802-20010 · 23802-20011 · 23802-62020 · 23802-74022 · 23802-74023 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 · 90401-12015 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08014 · 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23807-74060 · 23814-20010 · 23814-62030 |
| 23807B | Fuel line hose | 23271-74330 · 23271-74490 · 23271-74510 |
| 23807V | No. 1 spacer (for oil pipe) | 90560-11020 · 90561-08020 · 90561-08053 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 95333-06020 · 95334-06011 |
| 23811D | Hose clip (for fuel hose) | 96135-41100 |
| 23815 | No. 2 oil pipeline | 23815-20010 · 23815-62030 |
| 23901A | Connector bolt (for fuel pipe) | 90401-08011 |
| 23901B | Gasket (for fuel lines) | 90430-08012 |
