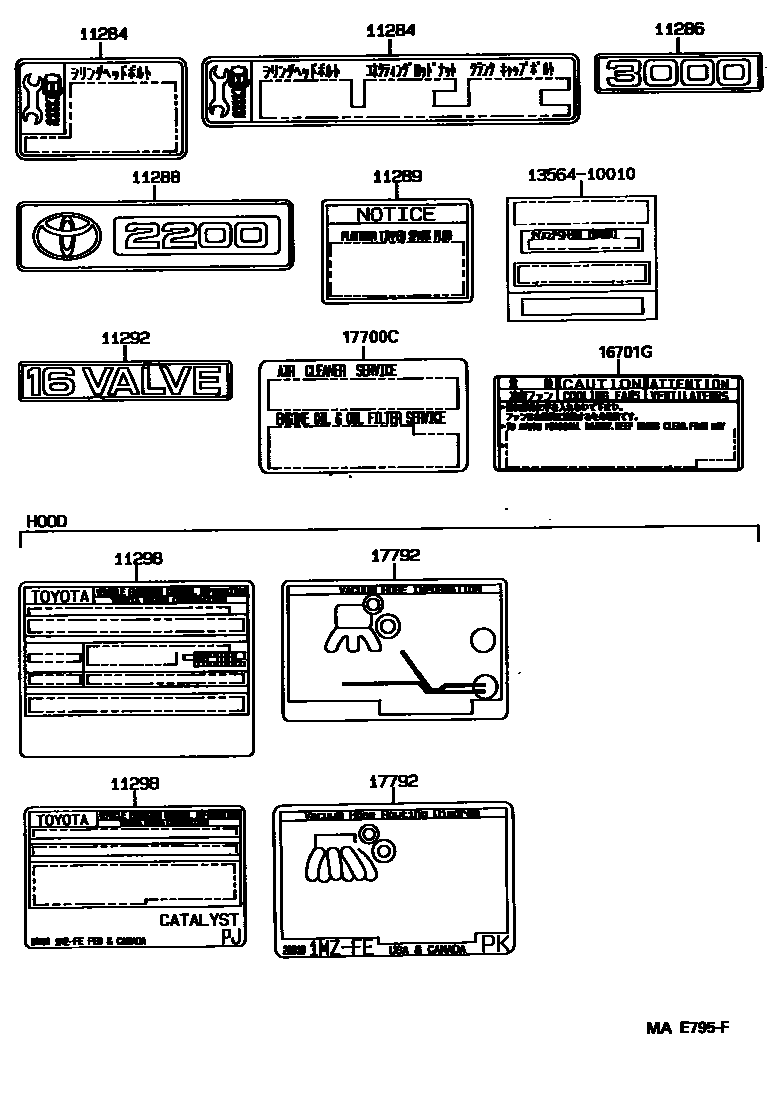

Toyota CAMRY 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota CAMRY EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-62010 · 11284-74040 |
| 11286 | Engine specification plate | 11286-62020 |
| 11288 | Engine system nameplate | 11288-74040 · 11288-74041 |
| 11289 | Spark plug warning nameplate | 11289-20010 · 11289-73020 |
| 11292 | Engine No. 2 name plate | 11292-74120 · 11292-74130 |
| 11298 | Emission control information plate | 11298-20010 · 11298-20020 · 11298-20030 · 11298-20050 · 11298-20060 · 11298-20080 · 11298-62140 · 11298-62150 · 11298-62180 · 11298-62190 · 11298-74530 · 11298-74610 · 11298-74840 · 11298-74850 · 11298-7A090 · 11298-7A111 · 11298-7A120 · 11298-7A130 · 11298-7A201 · 11298-7A251 · 11298-7A281 · 11298-7A291 |
| 16701G | warning label | 88723-12100 |
| 17700C | Air filter warning plate (for engine models) | 17791-62010 |
| 17792 | Engine vacuum hose information plate | 17792-20010 · 17792-20030 · 17792-20040 · 17792-62040 · 17792-62060 · 17792-74320 · 17792-74400 · 17792-74430 · 17792-74461 · 17792-74471 · 17792-74490 |
