Toyota CAMRY vacuum tube — Figure 1708

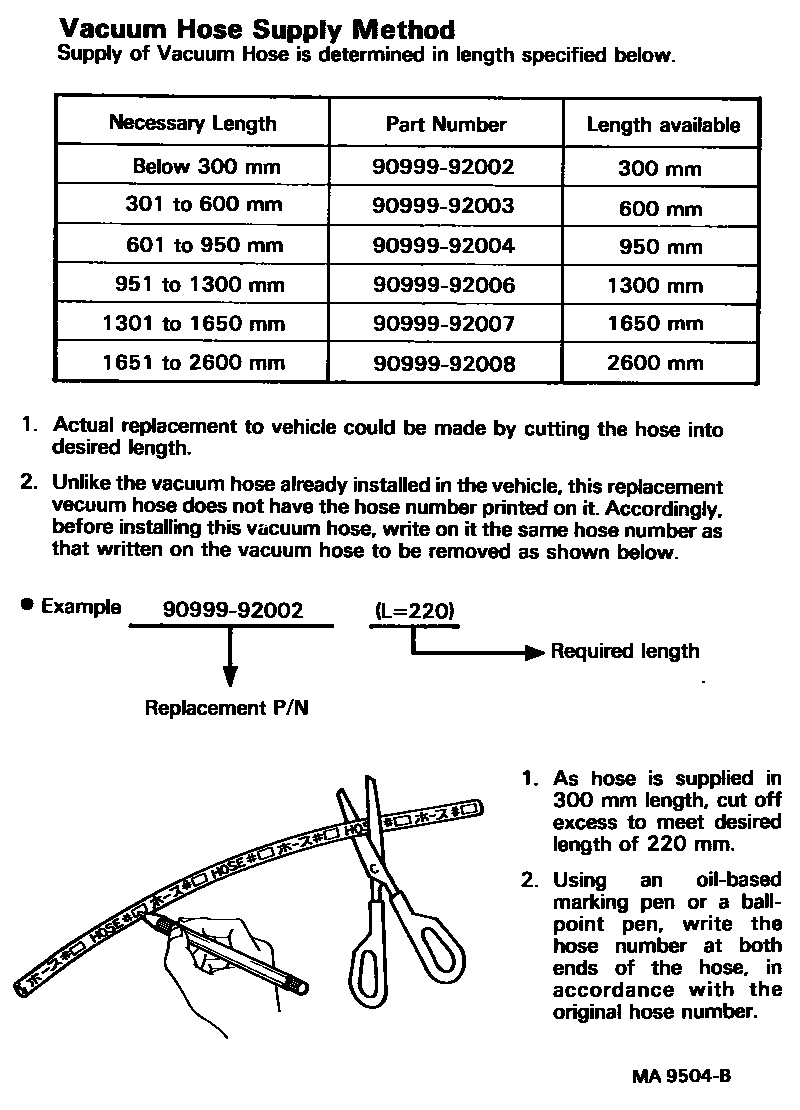

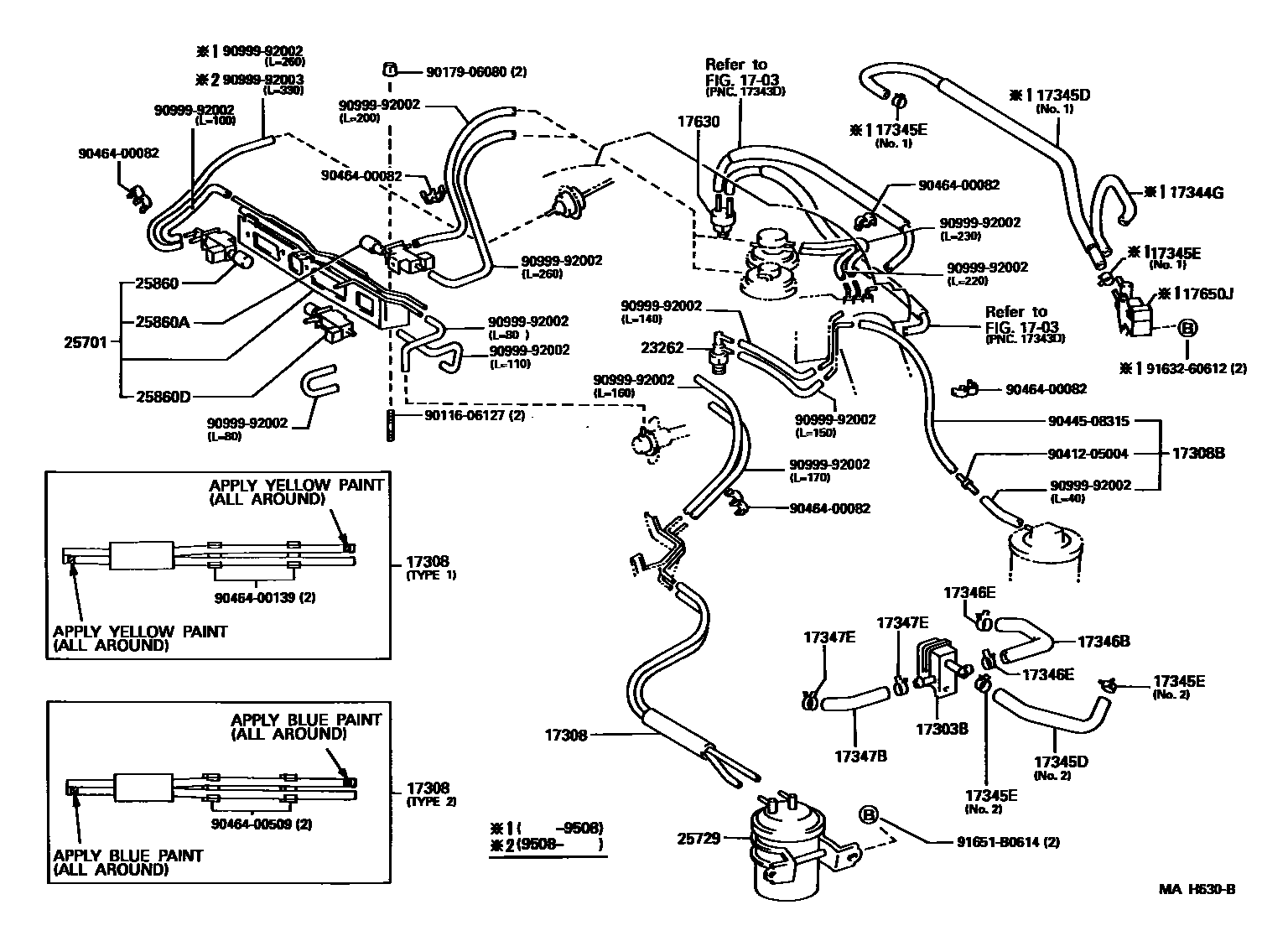

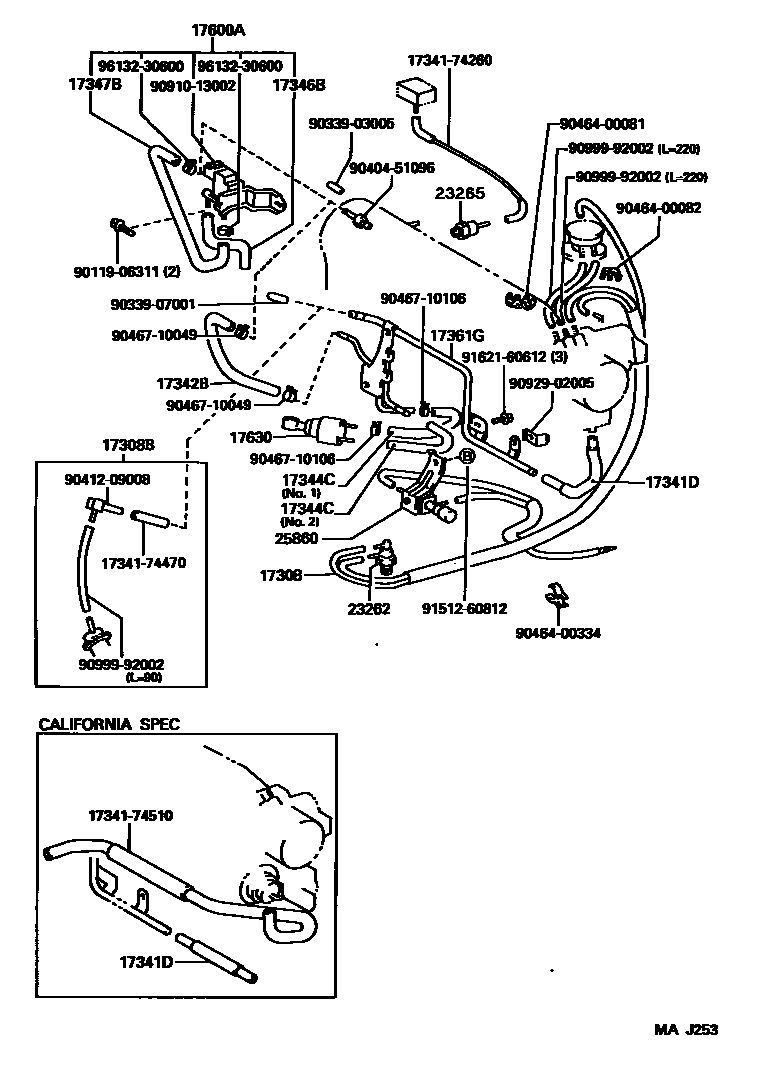

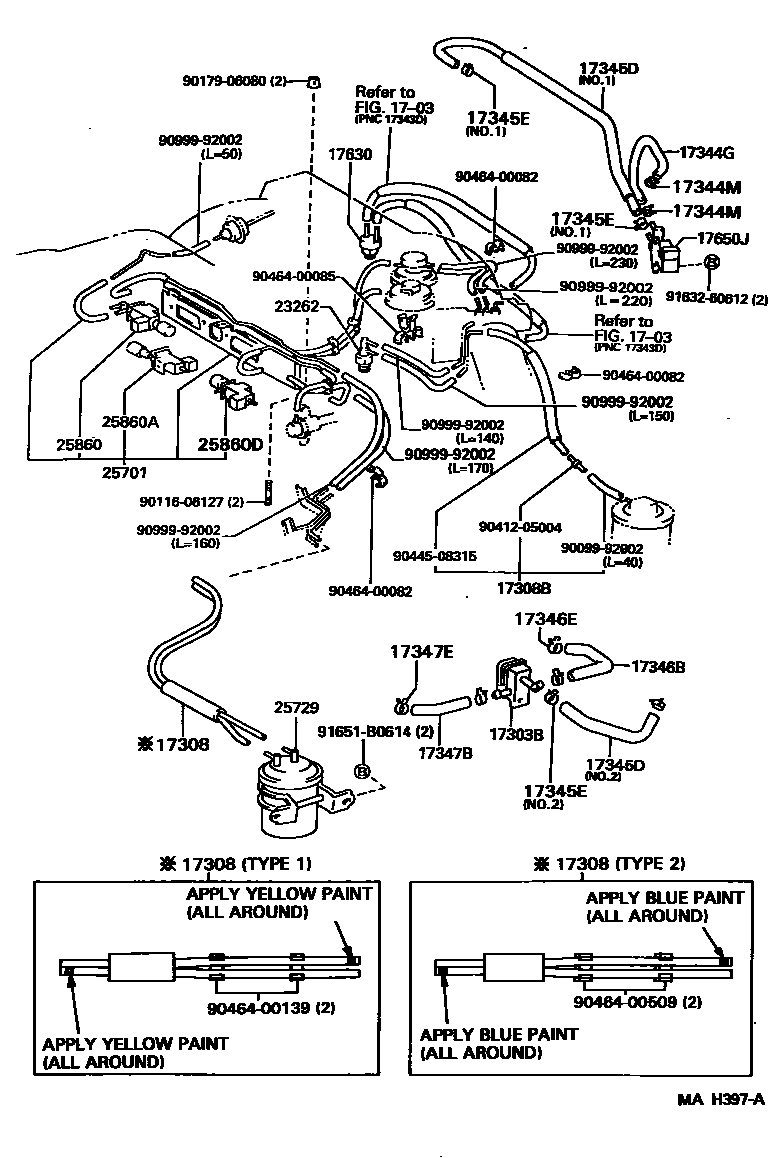

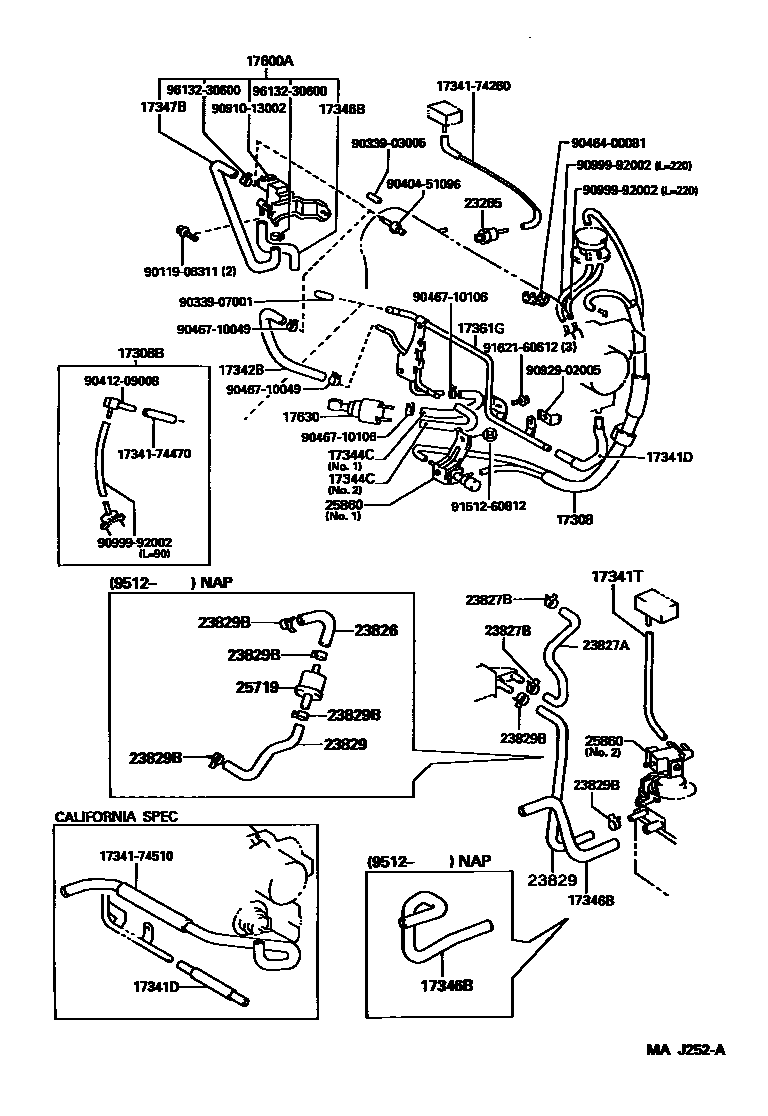

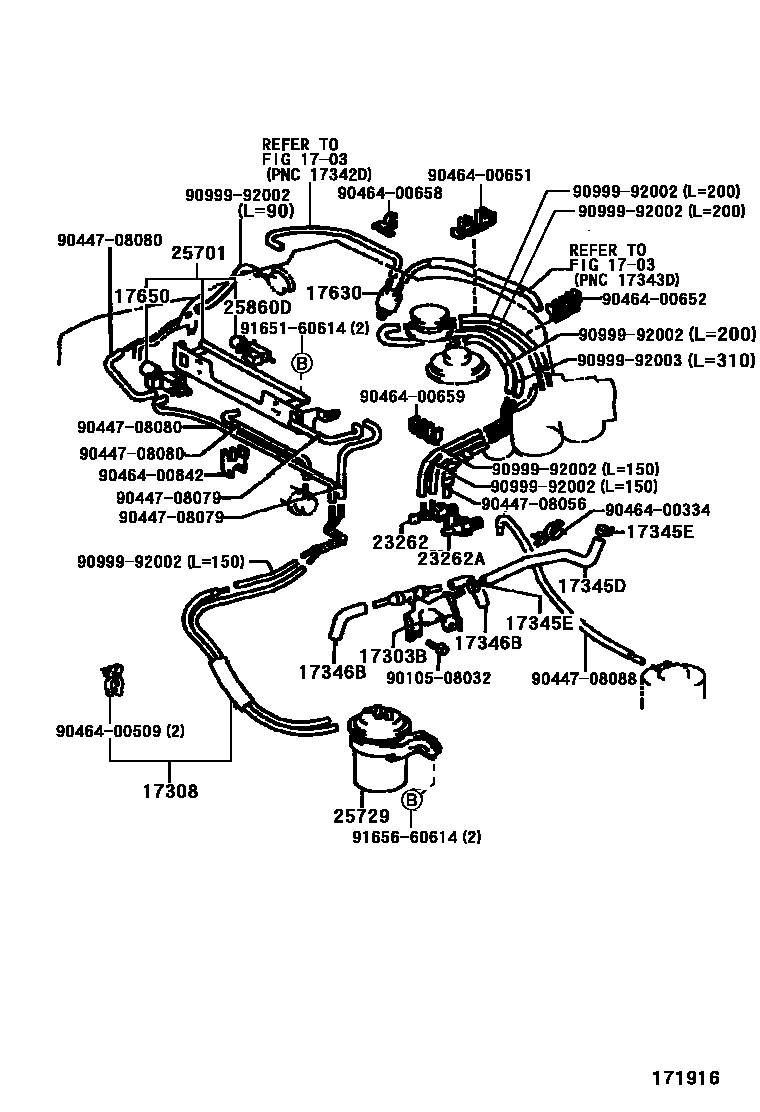

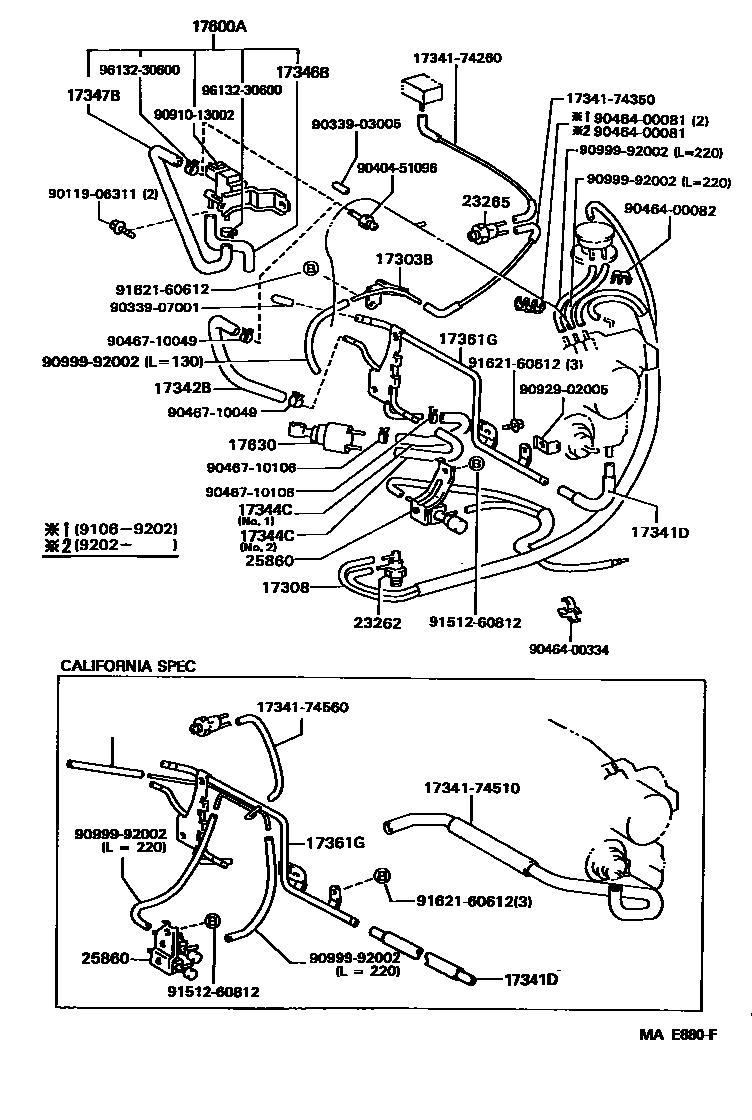

Toyota CAMRY EPC diagram 1708, vacuum tube, with 7 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-0A010 · 17303-20010 · 17303-62010 · 17303-74040 |
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-20020 · 17308-20040 · 17308-62040 · 17308-62041 · 17308-74130 · 17308-74131 · 17308-74460 |
| 17308B | Vacuum hose sub-assembly | 17308-20030 · 17308-74490 |
| 17341D | No. 1 hose (for idle boost) | 17341-03020 · 17341-03030 · 17341-74340 · 17341-74520 |
| 17341T | Air hose No. 1 | 17341-74680 |
| 17342B | No. 2 hose (for idle boost) | 17343-03020 · 17343-74040 |
| 17344C | No. 4 hose (for idle speed boost) | 17344-03010 · 17344-74041 |
| 17344G | No. 4 air hose | 17344-0A010 · 17344-20010 |
| 17344M | Clamp (for No. 4 air hose) | 90467-13007 · 90467-15006 |
| 17345D | No. 5 air hose | 17345-0A010 · 17345-0A020 · 17345-20010 · 17345-62010 · 17345-62011 |
| 17345E | Clip or clip (for size 5 air hose) | 90467-13007 · 90467-15006 · 90467-16003 · 96135-41300 |
| 17346B | No. 6 air hose | 17346-0A010 · 17346-20010 · 17346-62010 · 17346-74050 · 17346-74100 · 17346-74130 |
| 17346E | Clamp (for No. 6 air hose) | 90467-13007 · 96132-41300 · 96133-41300 |
| 17347B | No. 7 air hose | 17347-0A010 · 17347-20010 · 17347-74020 |
| 17347E | Clamp (for No. 7 air hose) | 90467-13007 · 96132-41300 · 96133-41300 |
| 17361G | Air pipe (for idle boost) | 17361-03020 · 17361-03030 · 17361-74090 · 17361-74140 |
| 17600A | Air bypass valve assembly with hose | 17600-74020 · 88690-06010 |
| 17630 | Air control valve assembly | 17630-74010 · 17630-74040 |
| 17650 | Vacuum switch valve assembly | 25860-62010 |
| 17650J | Solenoid valve with adjusting screw | 90910-13006 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 · 90925-05075 · 90925-05086 |
| 23262A | No. 2 bimetallic vacuum switch valve | 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 |
| 23826 | No. 1 fuel vapor supply hose | 23826-74030 |
| 23827A | No. 2 fuel vapor supply hose | 23827-74020 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-41000 · 96132-51100 |
| 23829 | No. 3 fuel vapor supply hose | 23829-74010 · 23829-74030 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51100 |
| 25701 | Emission control valve assembly | 25701-20010 · 25701-20011 · 25701-20040 · 25701-62010 |
| 25719 | Vacuum pressure tank | 25719-74020 |
| 25729 | Vacuum pressure tank with bracket | 25729-62010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-20020 · 25860-62010 · 25860-74050 · 25860-74160 |
| 25860A | No. 1 vacuum switch valve | 90910-12074 |
| 25860D | No. 2 vacuum switch valve assembly | 90910-12080 |
