Toyota CAMRY Air Cleaner — Figure 1703

Toyota CAMRY EPC diagram 1703, Air Cleaner, with 5 images and 18 PNC and OE references.

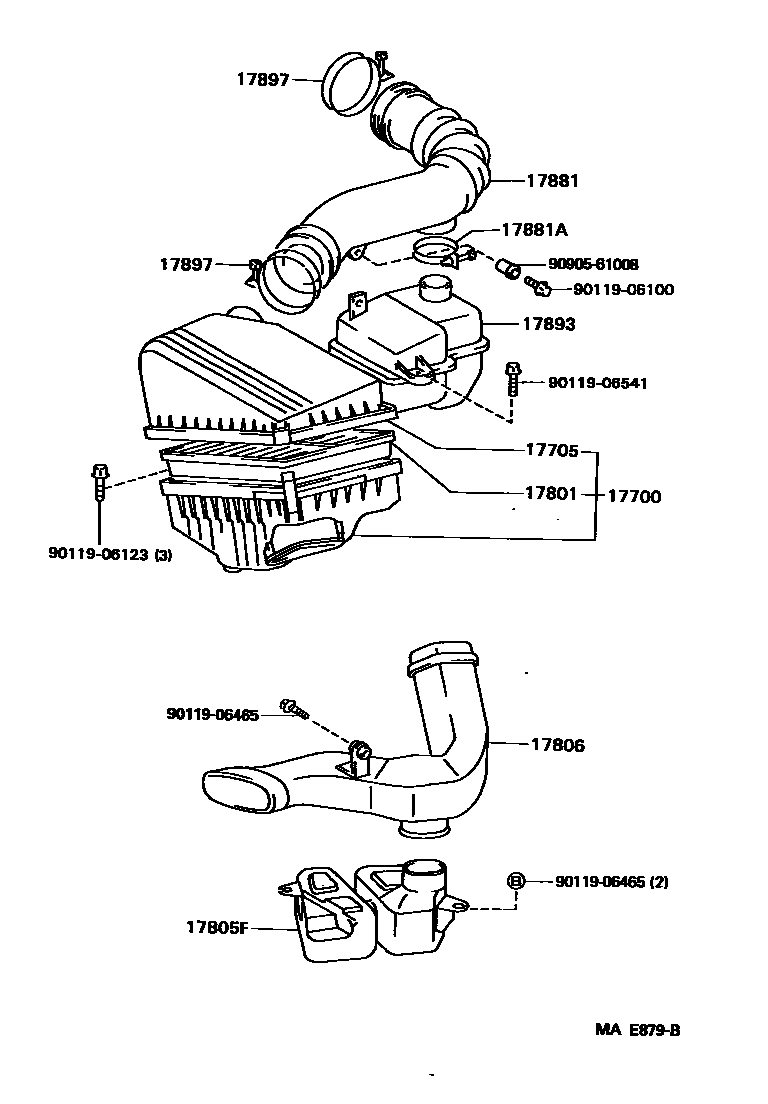

Toyota CAMRY Air Cleaner EPC diagram — MAE879B
Air Cleaner — MAE879B (199106 – 199508)

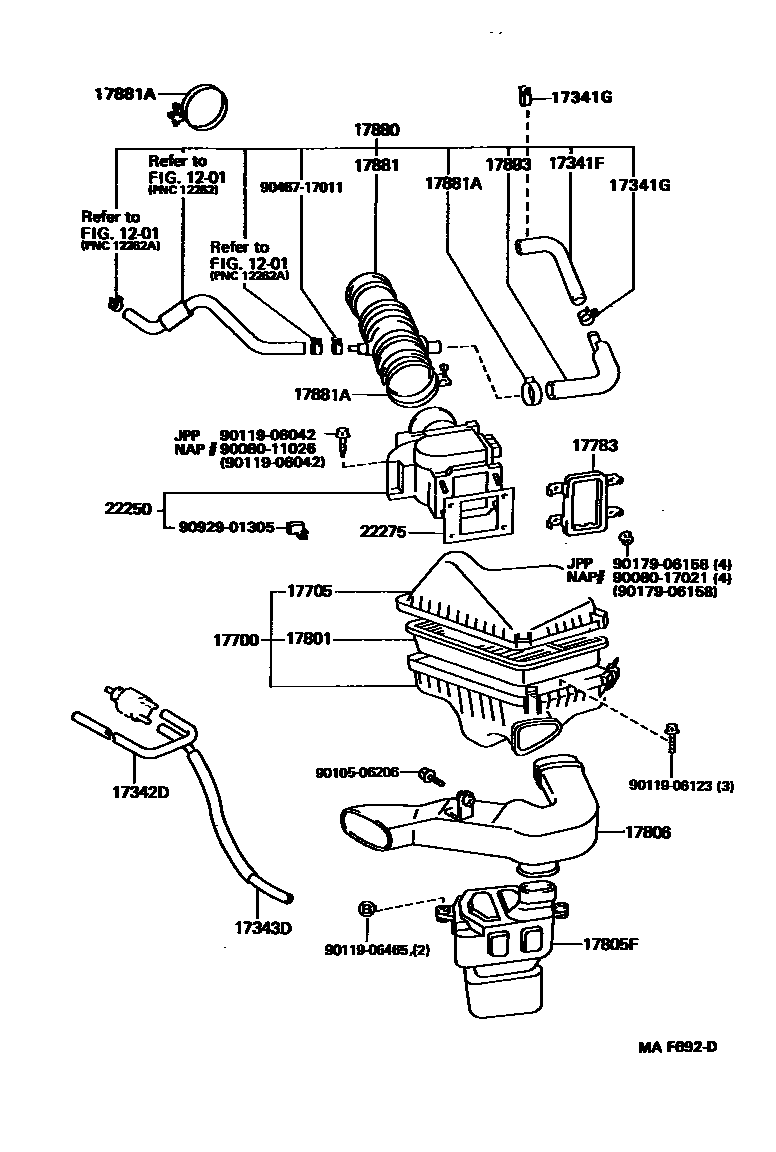

Toyota CAMRY Air Cleaner EPC diagram — MAF692D
Air Cleaner — MAF692D (199109 – 199309)

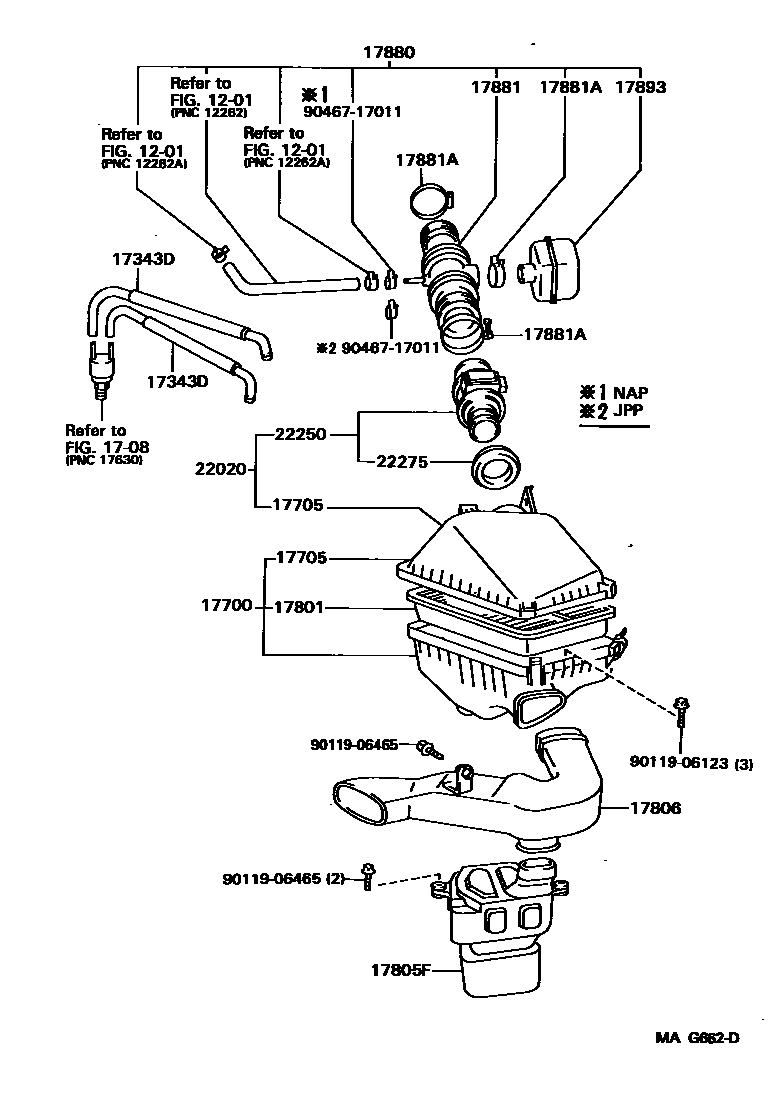

Toyota CAMRY Air Cleaner EPC diagram — MAG662D
Air Cleaner — MAG662D (199308 – 999999)

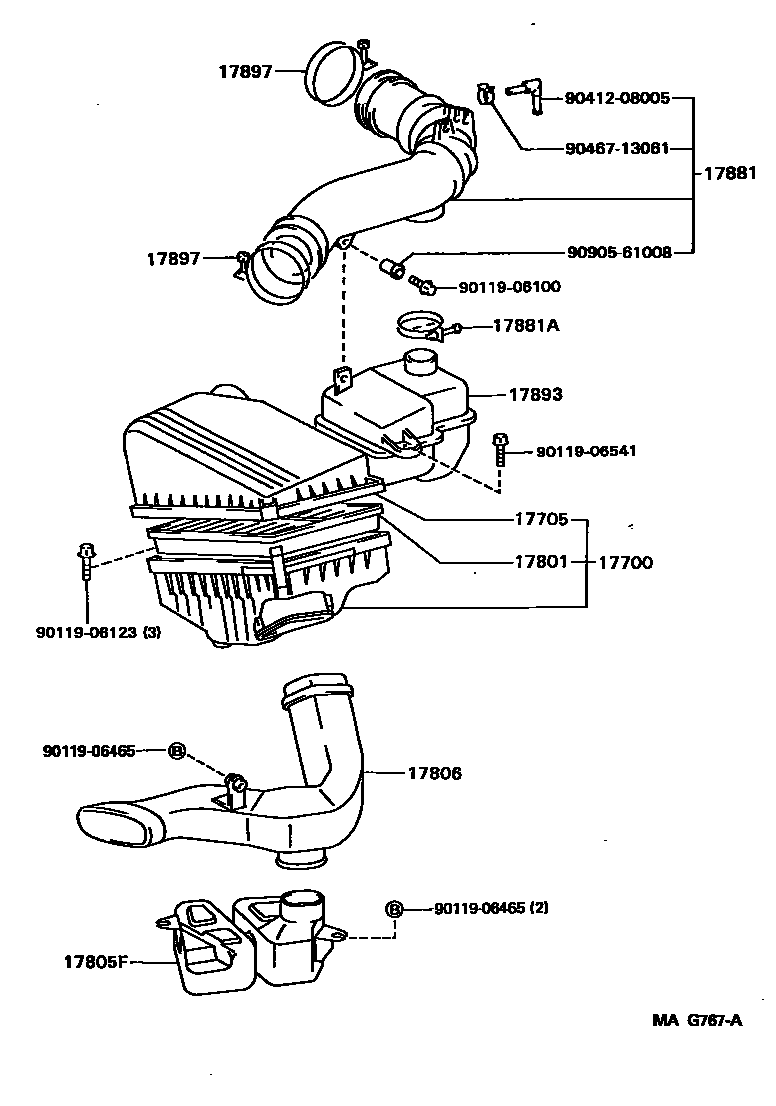

Toyota CAMRY Air Cleaner EPC diagram — MAG767A
Air Cleaner — MAG767A (199308 – 199508)

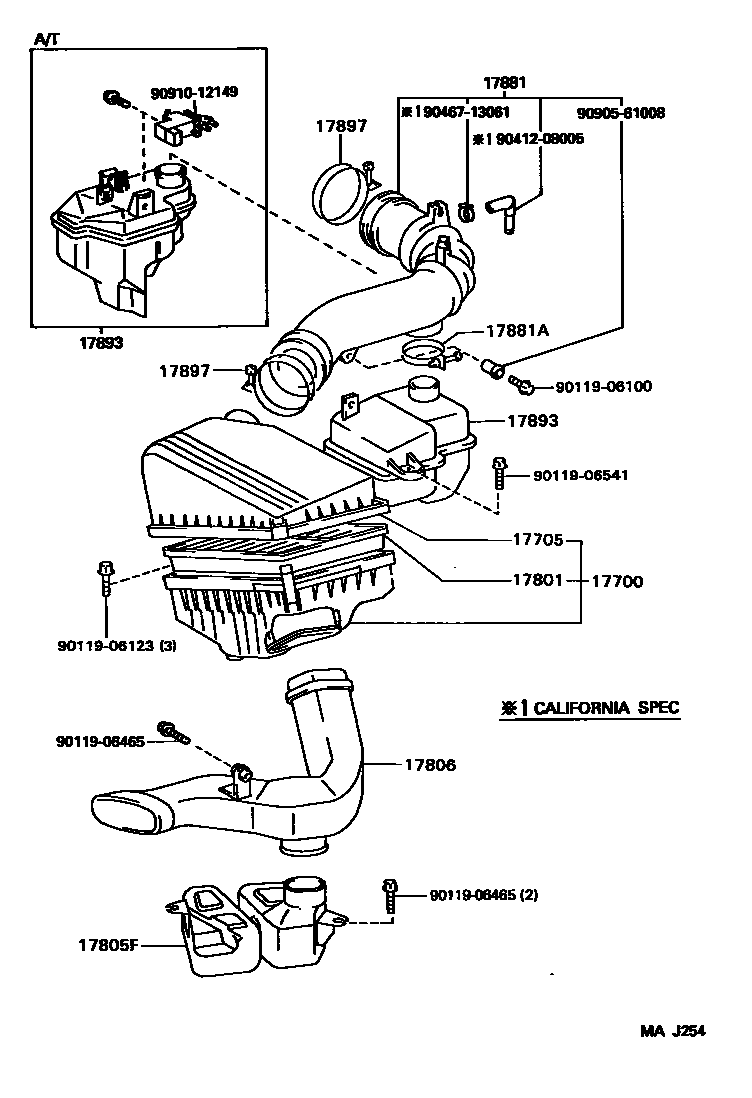

Toyota CAMRY Air Cleaner EPC diagram — MAJ254
Air Cleaner — MAJ254 (199508 – 999999)

PNC and OE references

PNCPart nameOE numbers
17341FAir hose No. 117341-07020
17341GClip or clip (for No. 1 air hose)90467-23007 · 90467-26006
17342DAir hose No. 217342-07020
17343DNo. 3 air hose17343-07020 · 17343-0A010
17700air filter assembly17700-03040 · 17700-03080 · 17700-07020 · 17700-0A010 · 17700-74380
17705Air filter cover sub-assembly17705-03030 · 17705-03070 · 17705-07020 · 17705-0A010 · 17705-74260
17783air filter baffle17783-07020
17801Air filter element sub-assembly17801-03010 · 17801-74060
17805FIntake resonator sub-assembly17805-03010 · 17805-07010 · 17805-74100 · 17805-74110
17806No. 2 air filter pipe assembly17806-03010 · 17806-07010 · 17806-74010 · 17806-74020
17880Air cleaner hose assembly17880-07020 · 17880-0A010
17881No. 1 air cleaner hose17881-03040 · 17881-07020 · 17881-0A010 · 17881-74390 · 17881-74500 · 17881-74640 · 17881-74650
17881AClamp (for No. 1 air cleaner hose)90467-38002 · 90467-41003 · 96111-10570 · 96111-10800 · 96111-10880 · 96111-10900
17893Intake resonator17893-03010 · 17893-03041 · 17893-0A010 · 17893-62030 · 17893-74190
17897Hose clamp (for air cleaner)96111-10710
22020Air flow meter assembly with air filter22020-0A010 · 22020-0A011 · 22020-0A030
22250Intake air flow meter assembly22250-07020 · 22250-20010 · 22250-20020 · 22250-20030
22275air flow meter gasket22275-07010 · 22275-20010
