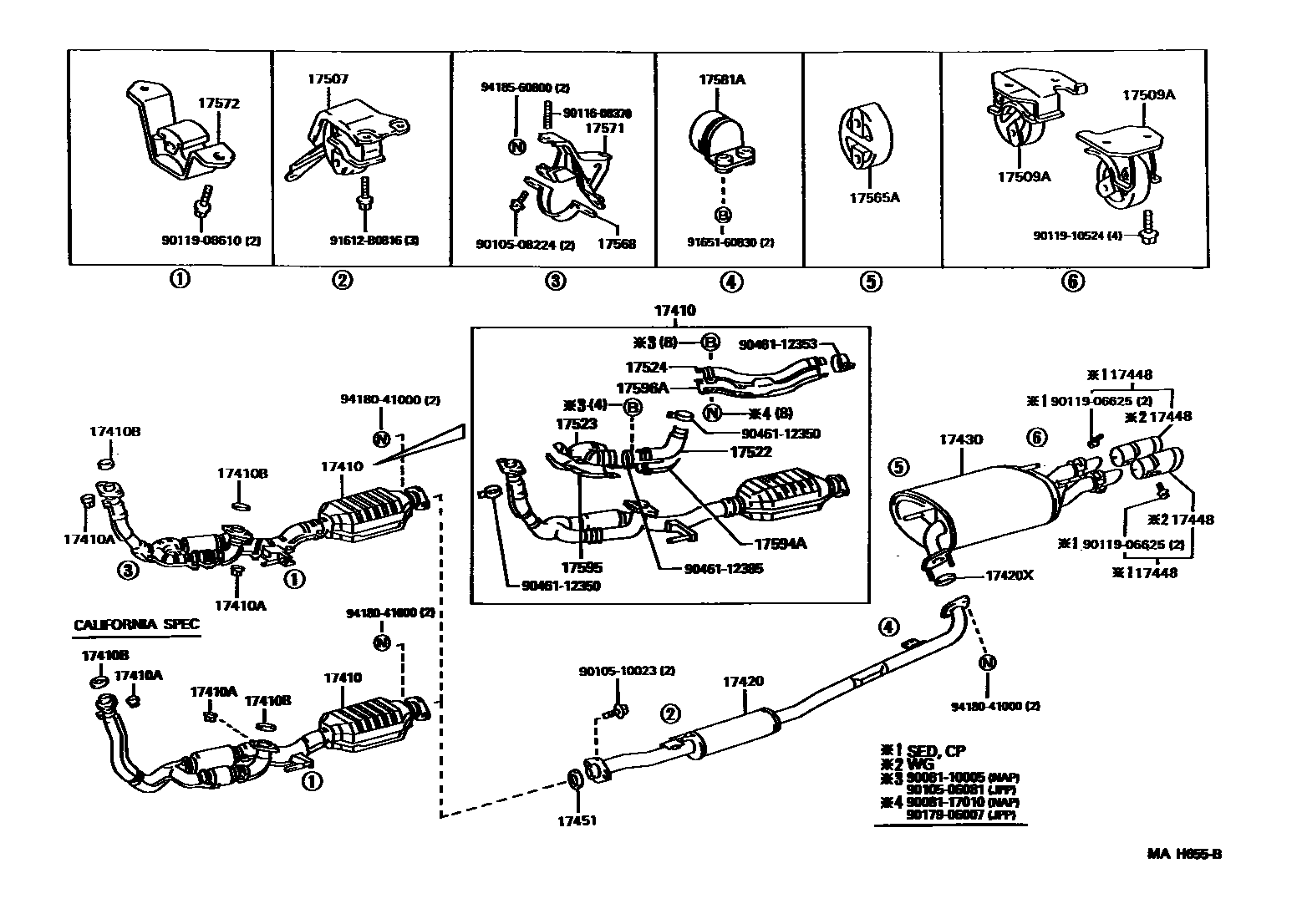

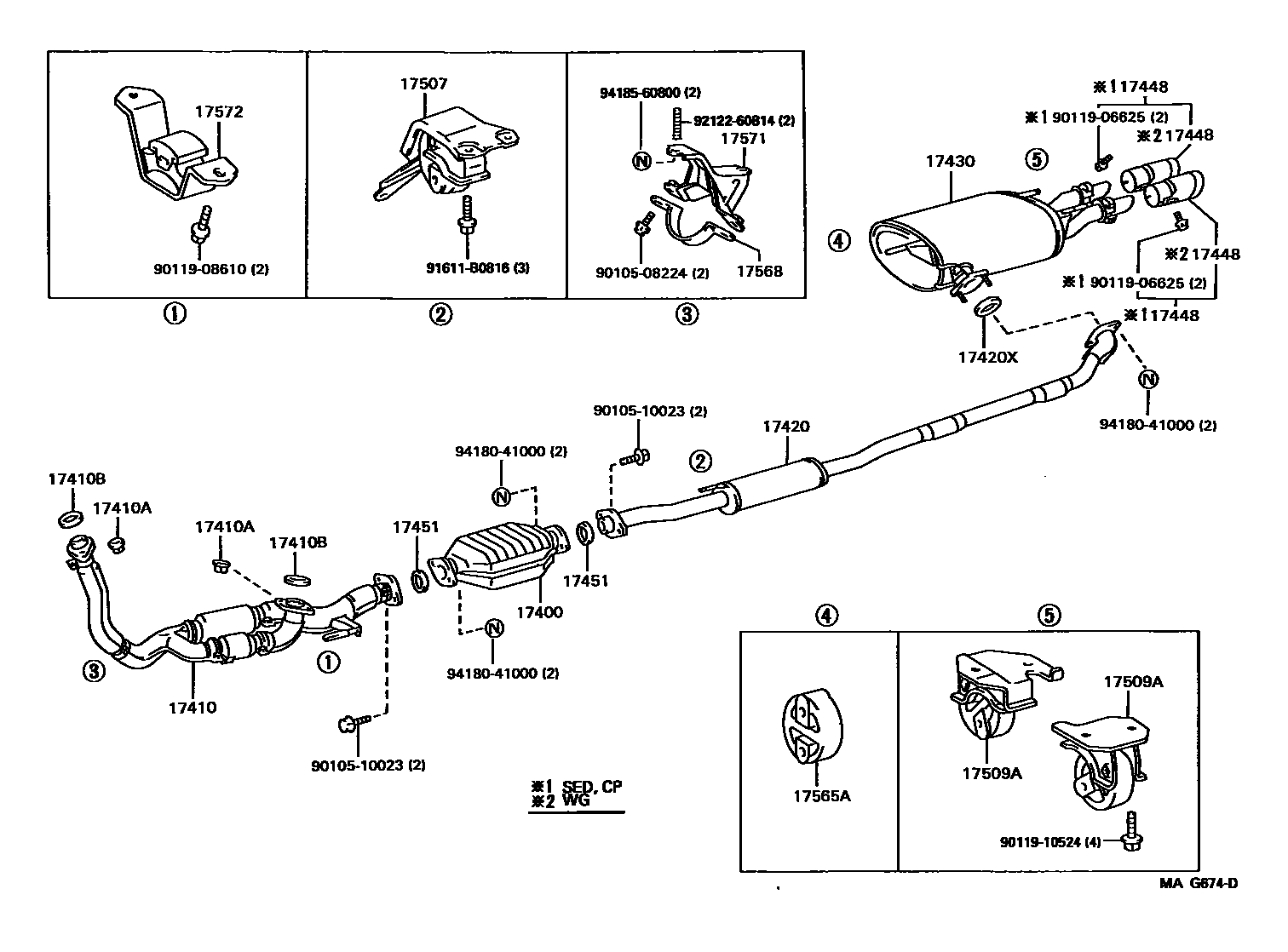

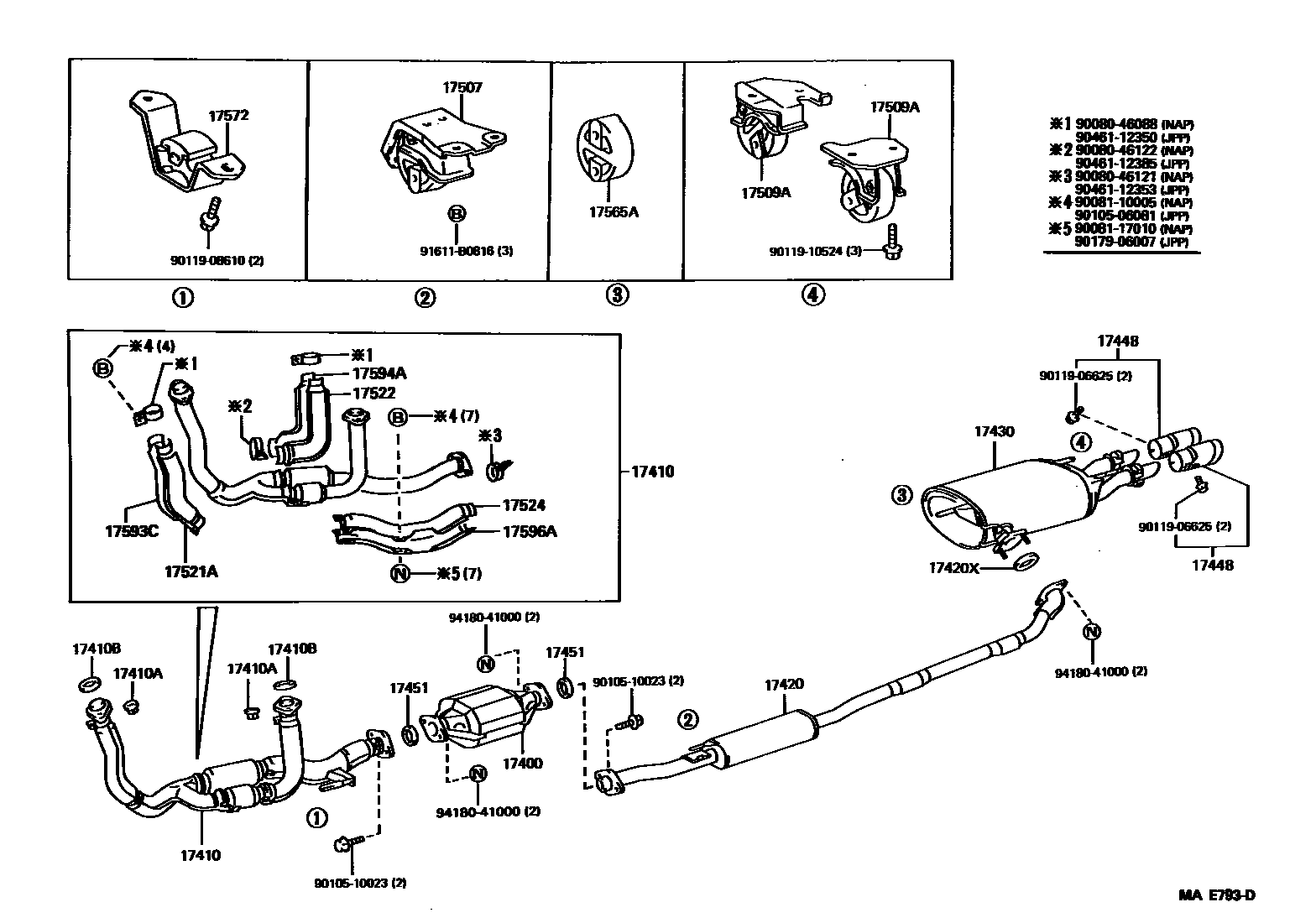

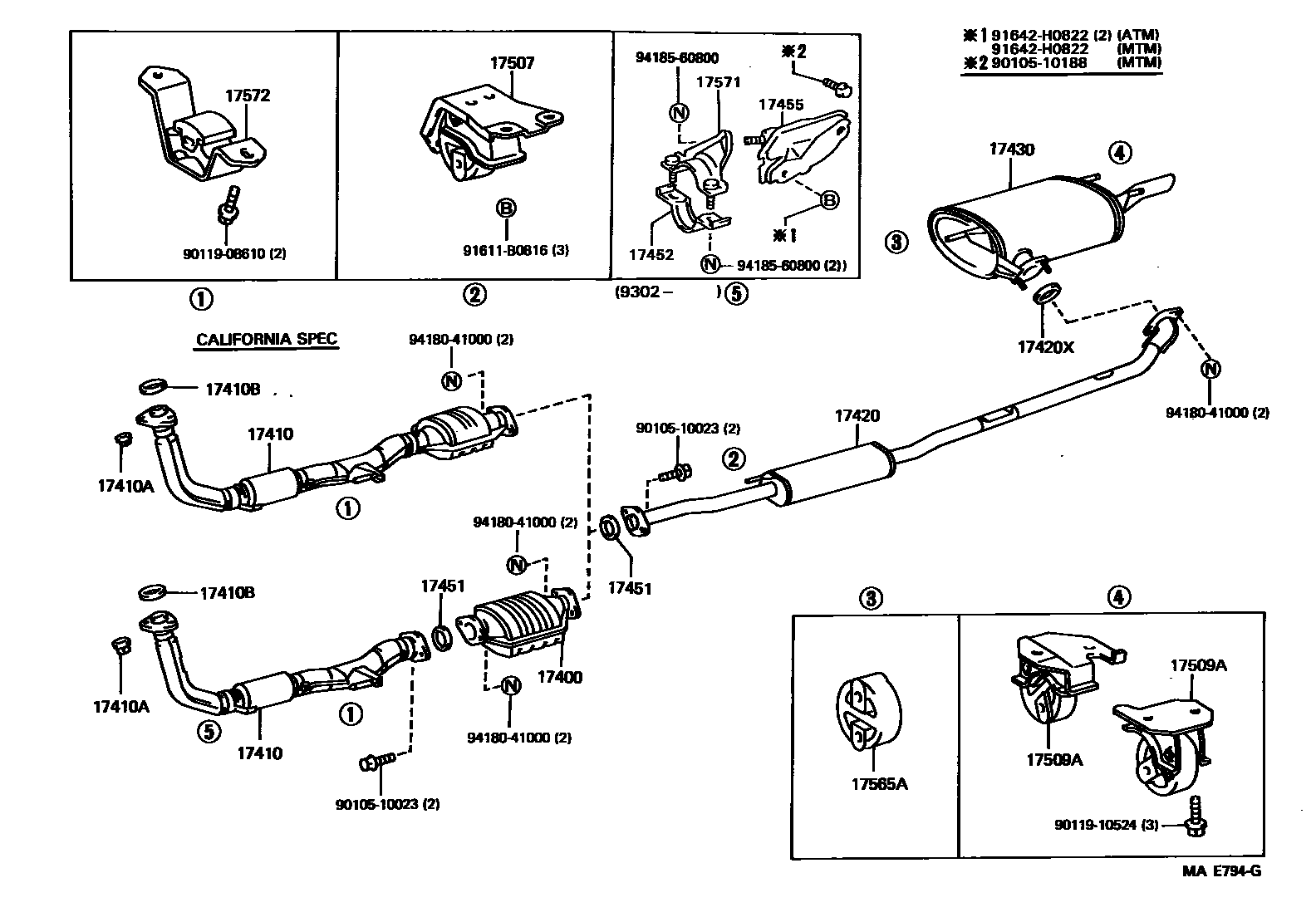

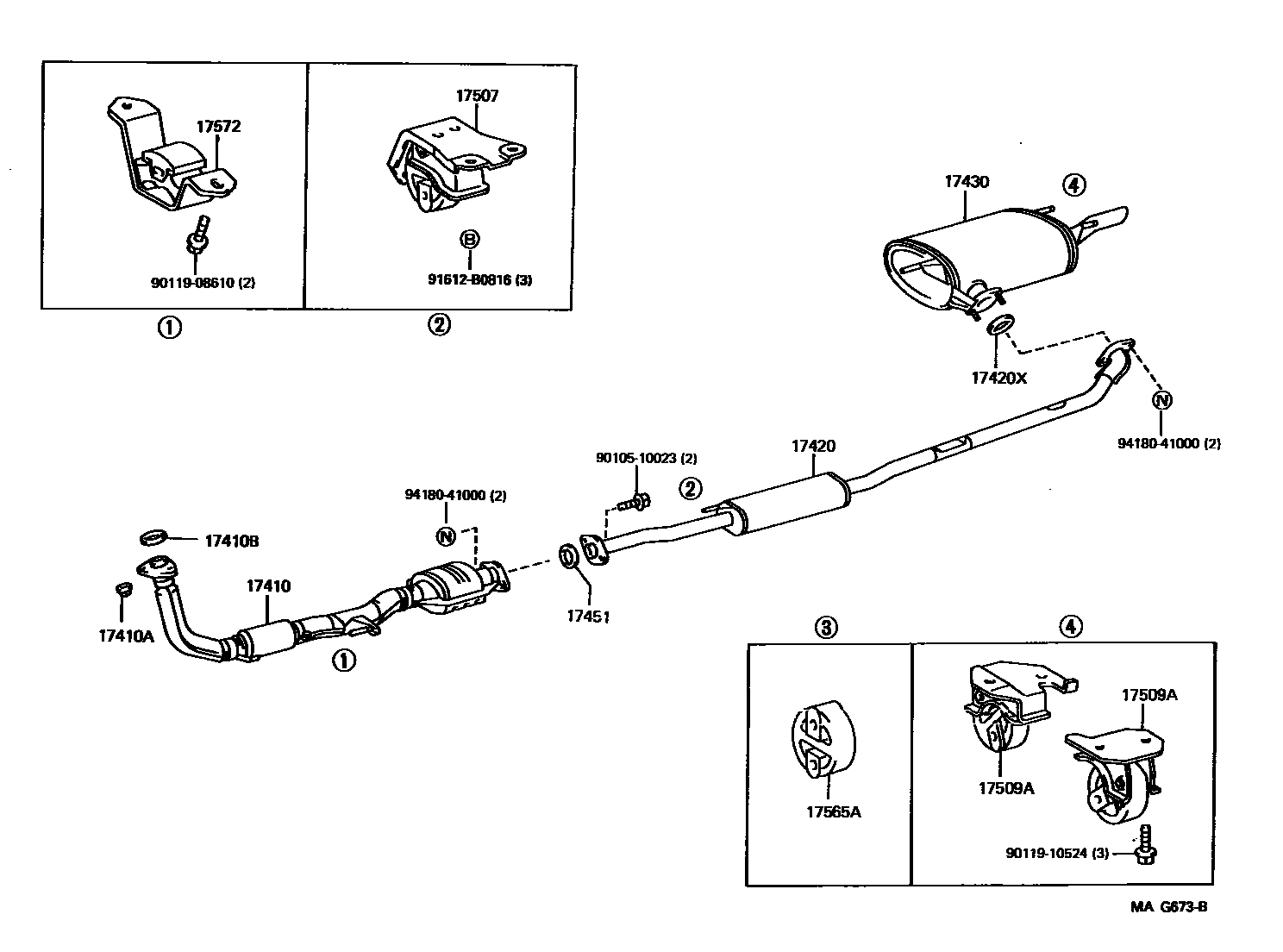

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-03030 · 18450-62080 · 18450-76060 |
| 17410 | Front exhaust pipe assembly | 17410-03040 · 17410-03041 · 17410-03050 · 17410-03051 · 17410-03090 · 17410-03100 · 17410-03190 · 17410-03200 · 17410-07020 · 17410-07021 · 17410-0A010 · 17410-0A040 · 17410-0A060 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06042 · 90917-06045 · 90917-06065 · 90917-06066 |
| 17420 | Central exhaust pipe assembly | 17420-03040 · 17420-03050 · 17420-07030 · 17420-07040 · 17420-0A010 · 17420-0A030 |
| 17420X | Center exhaust pipe liner | 90917-06045 · 90917-06046 · 90917-06073 |
| 17430 | Exhaust tailpipe assembly | 17430-03040 · 17430-03041 · 17430-03050 · 17430-03100 · 17430-03140 · 17430-03150 · 17430-07020 · 17430-07021 · 17430-07030 · 17430-0A010 · 17430-0A020 · 17430-0A040 · 17430-0A050 |
| 17448 | Exhaust pipe tail throat | 17448-74080 · 17448-79035 · 17448-79036 |
| 17451 | Exhaust pipe gasket | 90917-06043 · 90917-06045 · 90917-06054 |
| 17452 | Exhaust pipe clamp | 17452-74080 |
| 17455 | Exhaust pipe bracket | 17455-74080 |
| 17507 | No. 2 exhaust pipe bracket sub-assembly | 17507-03020 · 17507-07010 · 17507-07020 · 17507-0A010 · 17507-0A020 · 17507-0A040 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-07010 · 17509-07020 · 17509-0A020 · 17509-0A030 |
| 17521A | No. 1 upper exhaust pipe protection device | 17521-62040 |
| 17522 | No. 2 upper exhaust pipe protection device | 17522-20010 · 17522-62050 |
| 17523 | No. 3 upper exhaust pipe protection device | 17523-20010 |
| 17524 | No. 4 upper exhaust pipe protection device | 17524-62020 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-07050 |
| 17568 | Exhaust pipe bracket stay | 17568-0A020 · 17568-20020 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0A010 · 17571-20040 · 17571-74370 |
| 17572 | No. 1 exhaust pipe bracket | 17572-07020 · 17572-07030 · 17572-0A010 |
| 17581A | Exhaust pipe damper | 17581-20010 |
| 17593C | No. 1 lower exhaust pipe protection device | 17593-62040 |
| 17594A | No. 2 lower exhaust pipe protection device | 17594-20010 · 17594-62050 |
| 17595 | No. 3 lower exhaust pipe protection device | 17595-20010 |
| 17596A | No. 4 lower exhaust pipe protection device | 17596-62020 |
