Toyota CAMRY Manifold — Figure 1701

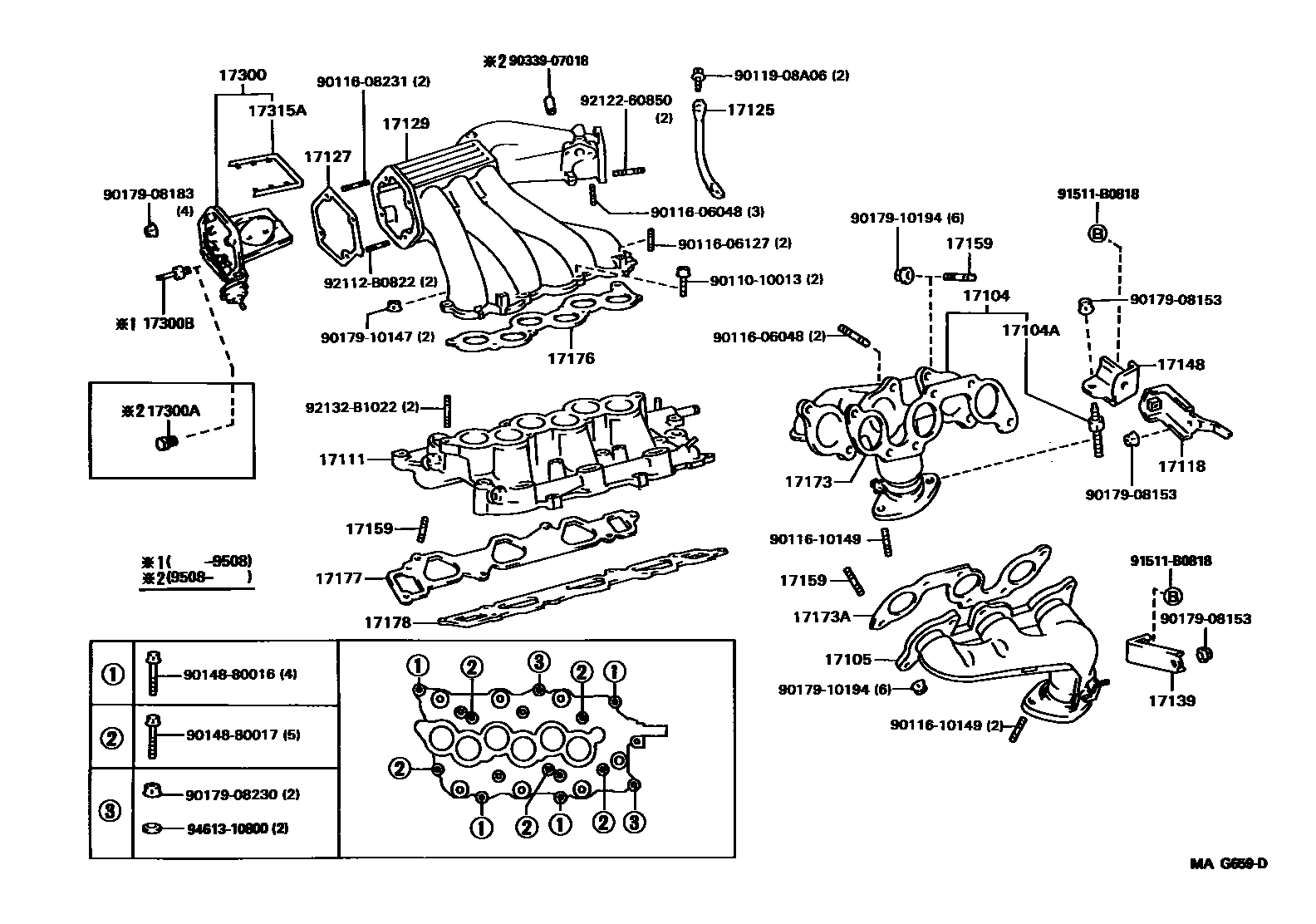

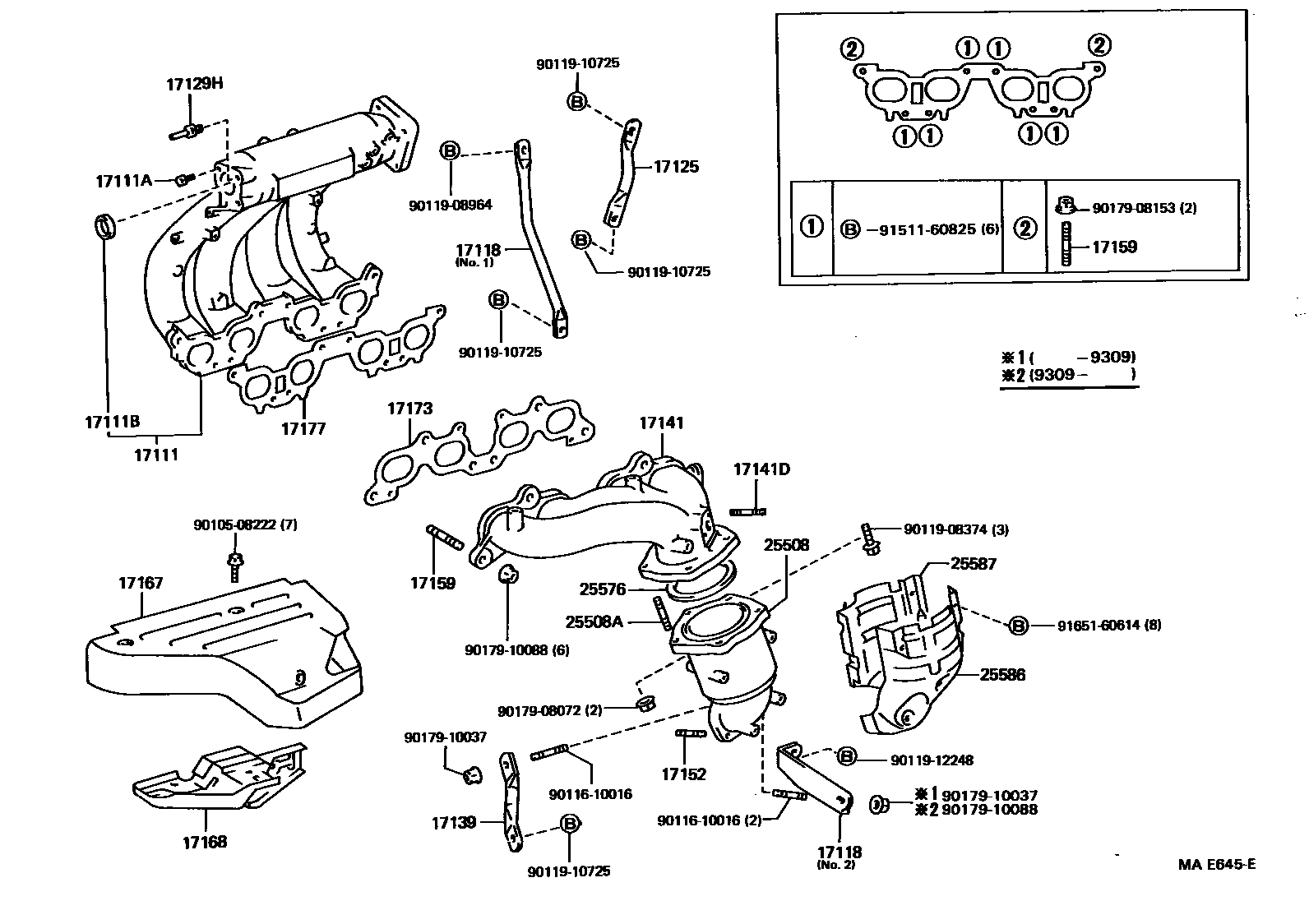

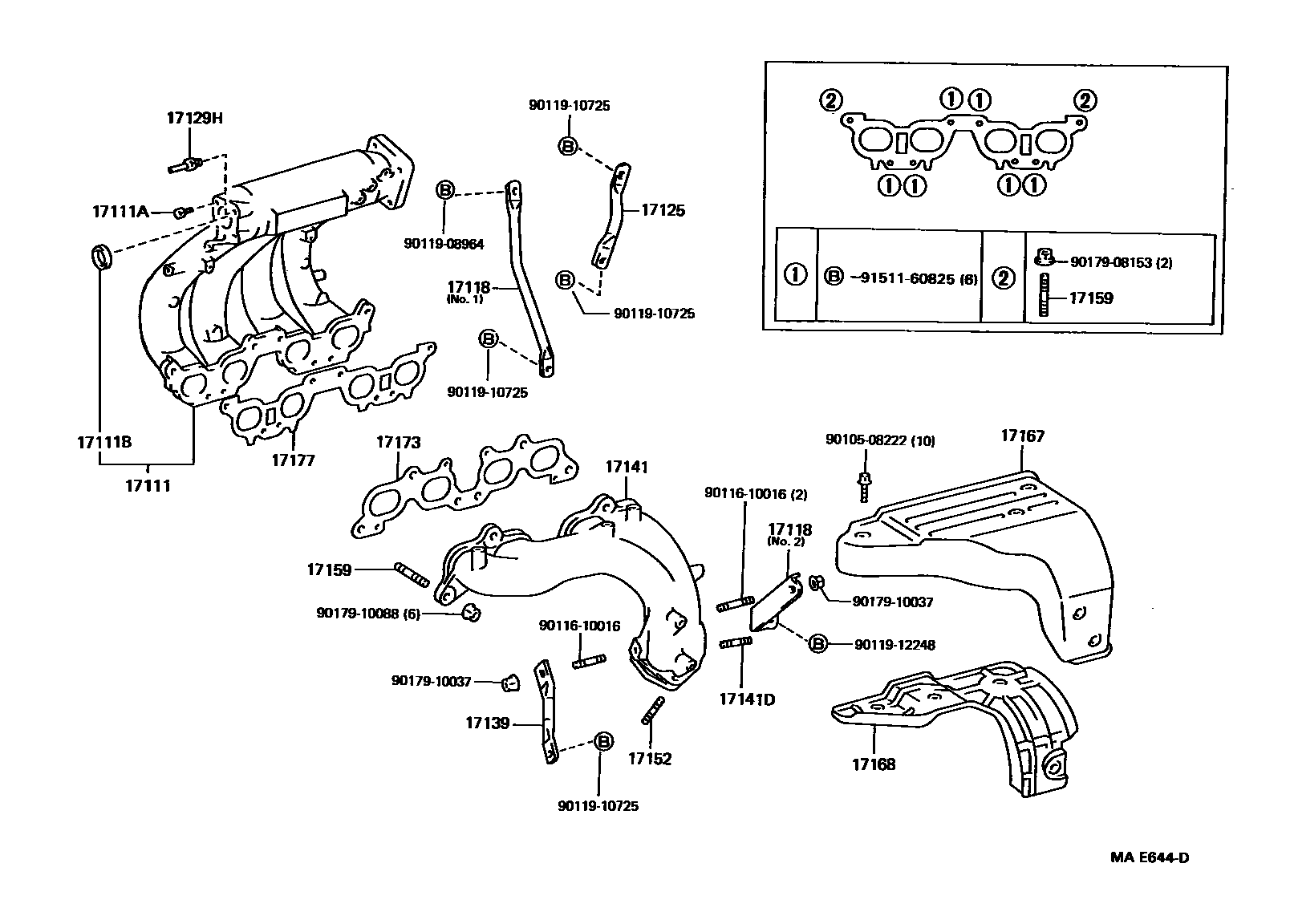

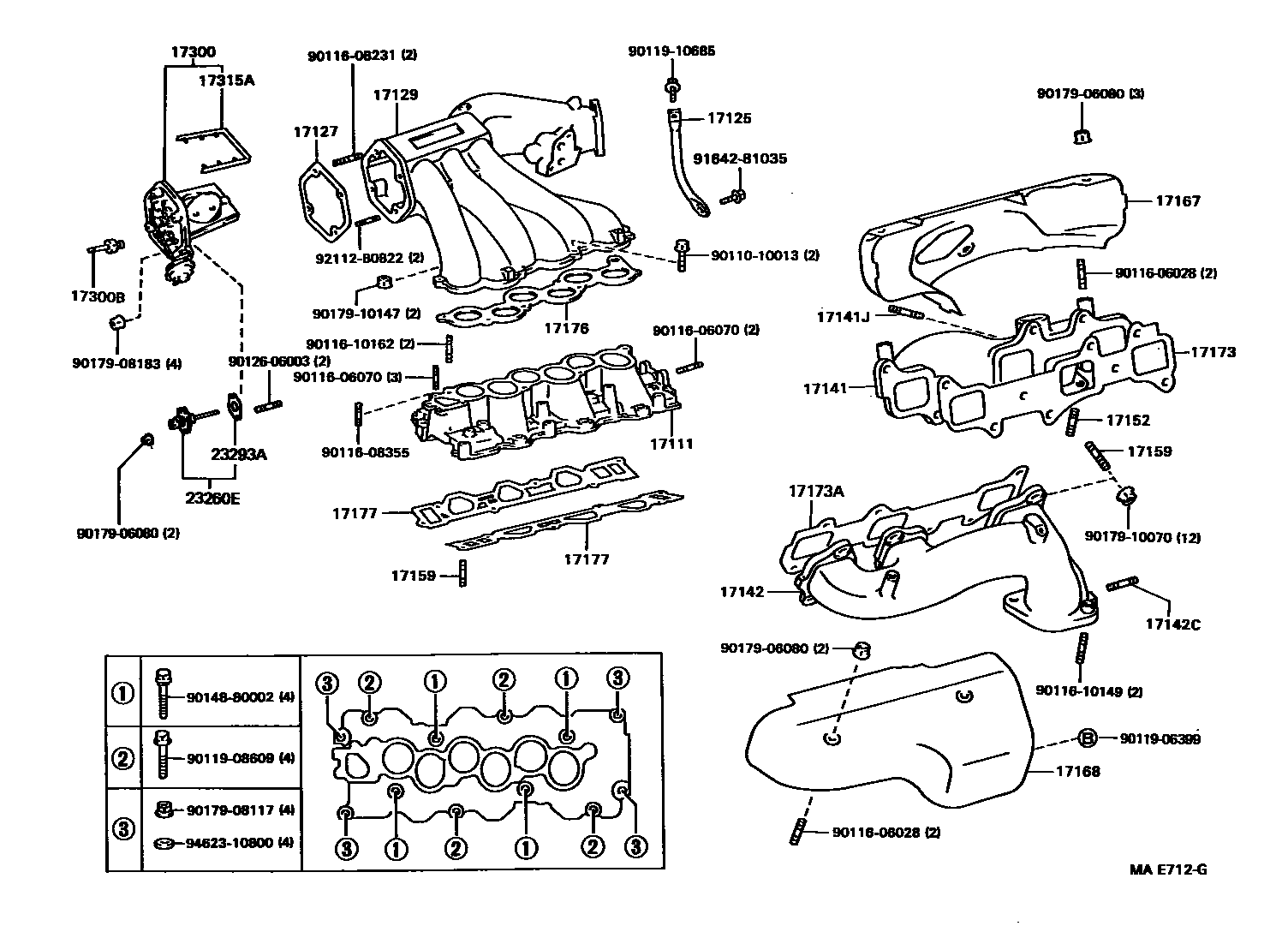

Toyota CAMRY EPC diagram 1701, Manifold, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17104 | Right exhaust manifold sub-assembly | 17140-0A010 · 17140-20010 |
| 17104A | Bolts (for head tube and stays) | 90109-08239 |
| 17105 | Left exhaust manifold sub-assembly | 17150-0A010 · 17150-20010 |
| 17111 | Intake Manifold | 17101-03030 · 17101-20010 · 17101-62010 · 17101-74180 |
| 17111A | No. 1 screw plug | 90345-51006 |
| 17111B | No. 2 screw plug | 96411-44000 |
| 17118 | Manifold stays | 17118-03030 · 17118-03031 · 17118-0A010 · 17118-20010 · 17118-74200 · 17118-74230 · 17118-74250 · 17118-74290 |
| 17125 | No. 1 pressure tank stay | 17125-03020 · 17125-0A010 · 17125-20010 · 17125-62020 · 17125-74090 |
| 17127 | Pressure tank cover gasket | 17127-0A010 · 17127-62030 |
| 17129 | Intake pressure tank | 17109-20010 · 17109-62030 |
| 17129H | Connector No. 4 | 90404-51026 |
| 17139 | No. 2 manifold stay | 17139-0A010 · 17139-20010 · 17139-74110 · 17139-74130 |
| 17141 | exhaust manifold | 17141-62050 · 17141-74130 · 17141-74150 |
| 17141D | Studs (for oxygen sensor) | 90116-08253 |
| 17141J | Studs (for right exhaust manifold) | 90116-08128 · 90126-08007 |
| 17142 | No. 2 exhaust manifold housing | 17142-62030 |
| 17142C | Studs (for left exhaust manifold) | 90116-08128 · 90126-08007 |
| 17148 | Exhaust manifold plate (for EGR intake) | 17148-0A010 · 17148-20010 |
| 17152 | Studs (for manifold to exhaust) | 90116-10058 · 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10063 · 90116-10150 · 90116-10169 · 90126-08013 · 92122-60822 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-62030 · 17167-62031 · 17167-74180 · 17167-74200 · 17167-74201 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-62030 · 17168-74080 · 17168-74100 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0A010 · 17173-20010 · 17173-62040 · 17173-74040 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-0A010 · 17173-20010 · 17173-62040 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-62030 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-03020 · 17177-20010 · 17177-62050 · 17177-74070 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-20010 |
| 17300 | Intake control valve assembly | 17300-20010 · 17300-62020 |
| 17300A | Headed tapered thread plug (for air control valves) | 90345-51006 |
| 17300B | Connector (for intake control valve) | 90404-51072 · 90404-51096 |
| 17315A | Intake control valve gasket | 17315-62020 |
| 23260E | Cold start injector assembly | 23260-69065 |
| 23293A | Cold start injector gasket | 23293-62030 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-74150 · 25508-74190 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-08171 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-74020 · 25576-74030 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-74050 |
| 25587 | No. 2 manifold three-way catalytic converter vibration isolation pad | 25587-74050 |
