Toyota CAMRY Oil Filter — Figure 1502

Toyota CAMRY EPC diagram 1502, Oil Filter, with 3 images and 3 PNC and OE references.

Toyota CAMRY Oil Filter EPC diagram — MA6613A
Oil Filter — MA6613A (199106 – 999999)

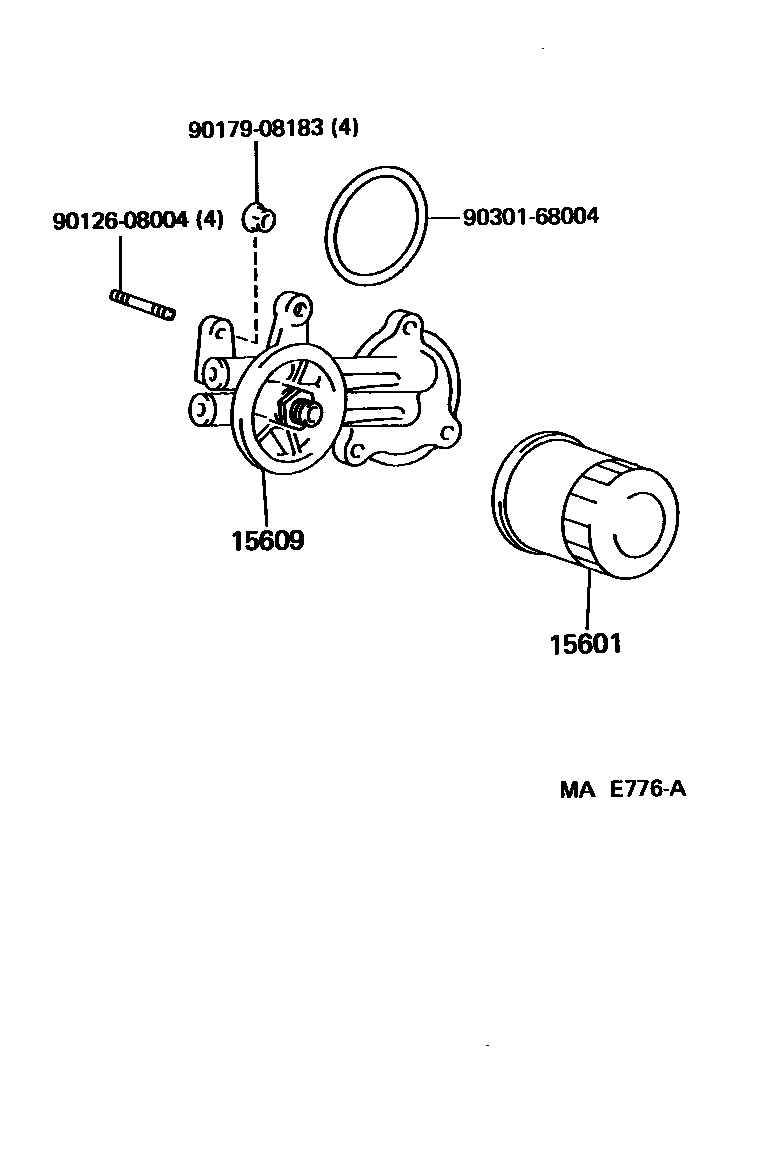

Toyota CAMRY Oil Filter EPC diagram — MAE776A
Oil Filter — MAE776A (199109 – 199309)
Toyota CAMRY Oil Filter EPC diagram — MAG653A
Oil Filter — MAG653A (199308 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19002
15601Oil filter sub-assembly90080-91034 · 90080-91058 · 90915-03001 · 90915-03002 · 90915-10001 · 90915-20001
15609Oil filter bracket sub-assembly15671-62020
