Toyota CAMRY Engine Oil Pump — Figure 1501

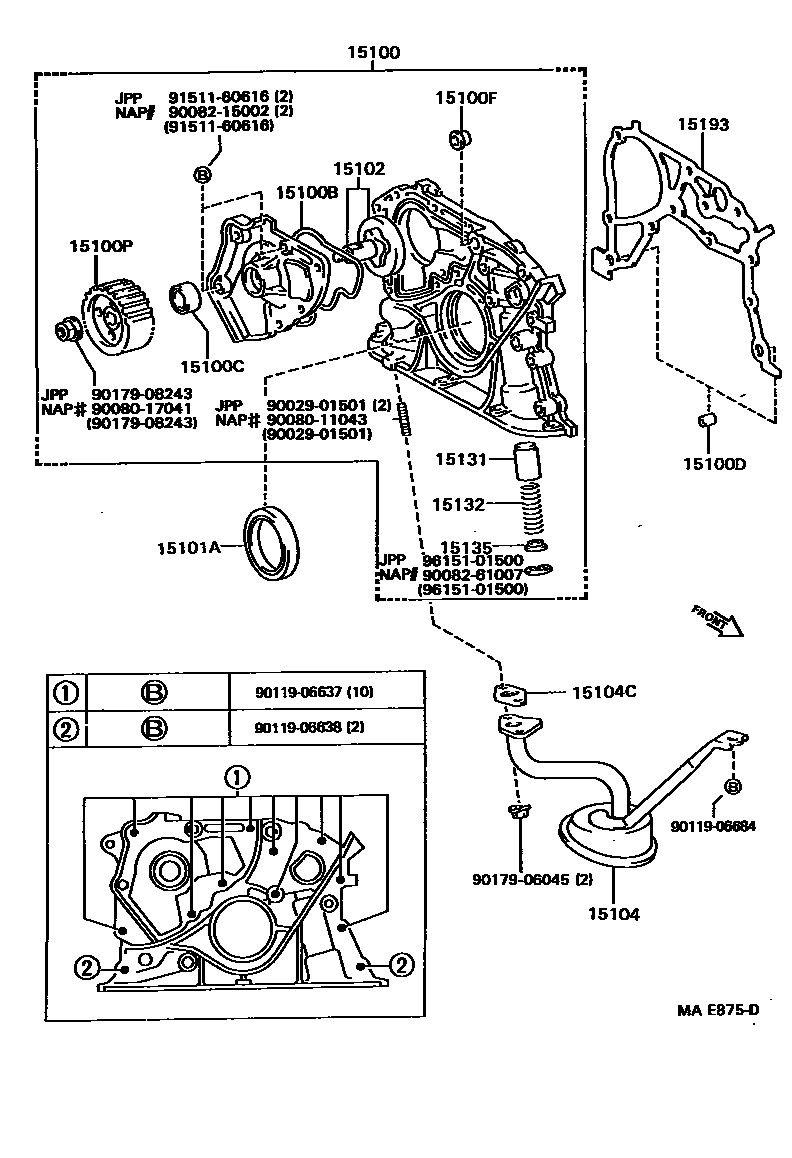

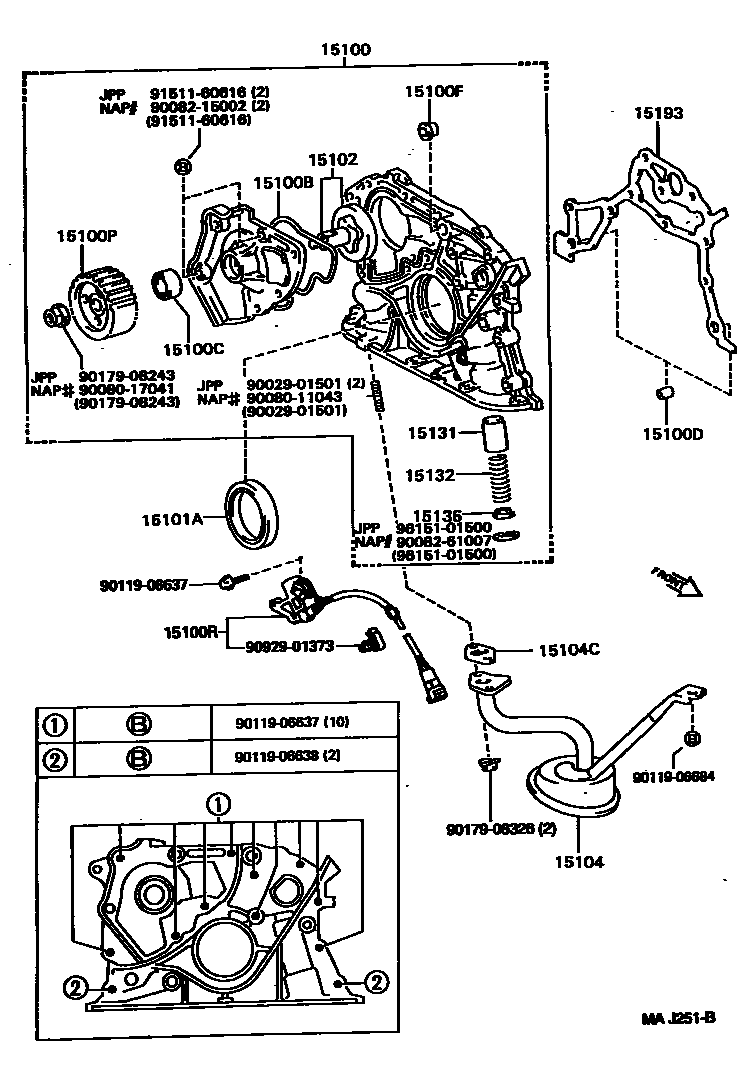

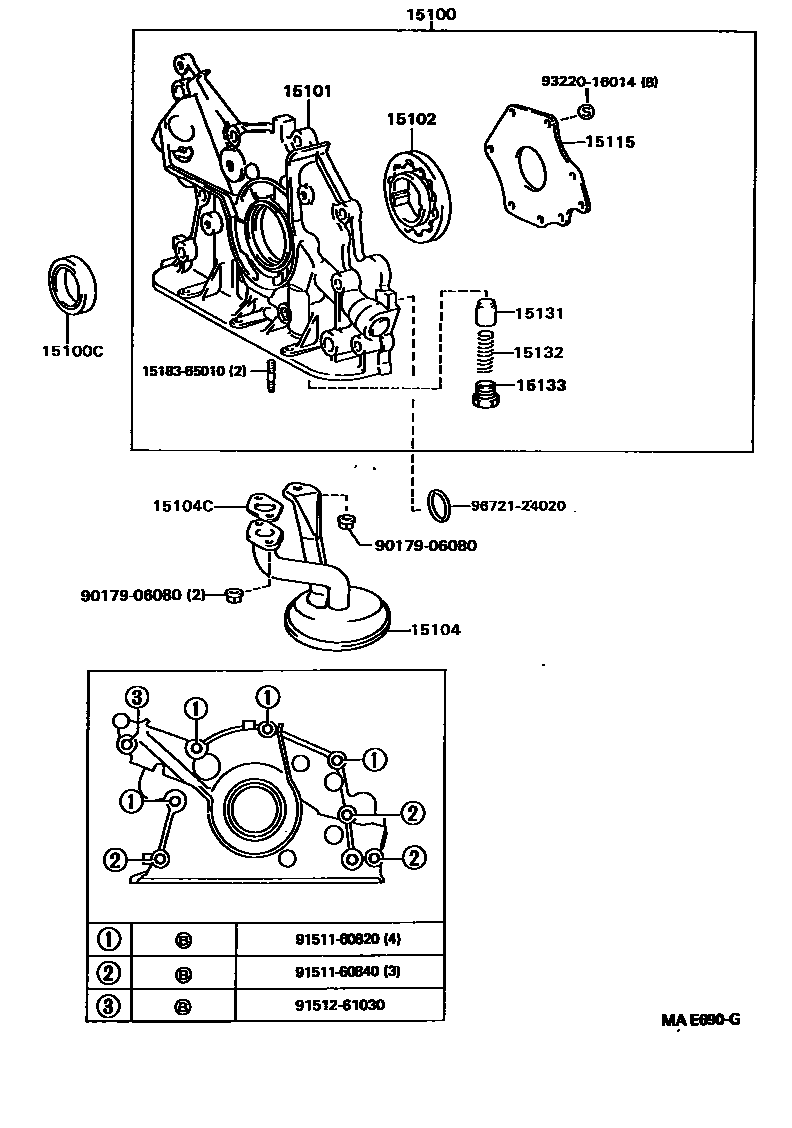

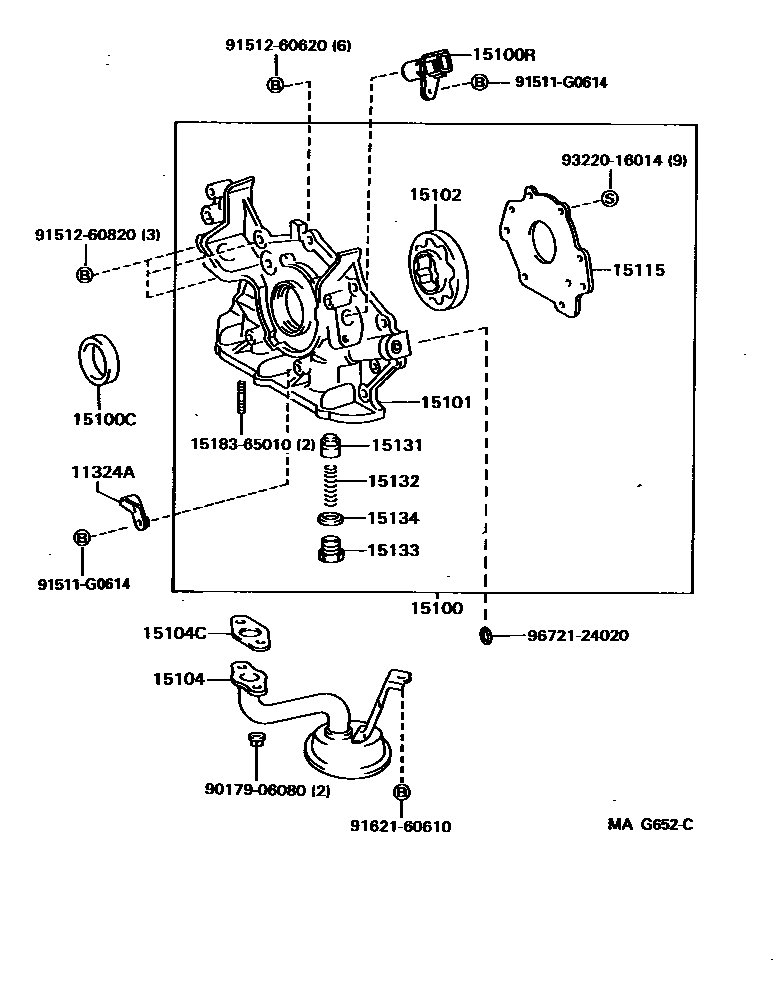

Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11324A | timing belt pulley | 11324-20010 |
| 15100 | Oil pump assembly | 15100-03020 · 15100-03030 · 15100-0A010 · 15100-20020 · 15100-62030 · 15100-74020 · 15100-74030 |
| 15100B | O-ring (for oil pump) | 15188-03010 · 15188-63010 · 15188-88382 |
| 15100C | Seals (for oil pump) | 15165-70010 · 15165-74020 · 90080-31003 · 90080-31034 · 90311-40013 |
| 15100D | Pin (for oil pump assembly) | 90253-09001 |
| 15100F | Bushing (for oil pump) | 90029-38302 · 90080-38016 |
| 15100P | Oil pump drive shaft pulley | 13524-03020 · 13524-74020 |
| 15100R | crankshaft position sensor | 90919-05012 · 90919-05017 |
| 15101 | Oil pump body sub-assembly | 15101-0A010 · 15101-20020 · 15101-62030 |
| 15101A | Seals (for crankshaft) | 90080-31022 · 90311-42026 |
| 15102 | Oil pump rotor assembly | 15102-03020 · 15102-74020 · 15103-0A010 · 15103-62030 |
| 15104 | Oil filter sub-assembly | 15104-03030 · 15104-03031 · 15104-0A010 · 15104-20020 · 15104-62030 · 15104-74060 |
| 15104C | Gasket (for oil filter) | 15147-0A010 · 15147-20010 · 15147-62020 · 15149-03020 · 15149-74020 · 15149-74030 |
| 15115 | oil pump cover | 15115-0A010 · 15115-20020 · 15115-62030 |
| 15131 | Oil pump pressure reducing valve | 15131-03021 · 15131-24010 · 15131-42021 · 15131-63011 |
| 15132 | Oil pump pressure reducing valve spring | 15132-03020 · 15132-0A010 · 15132-20020 · 15132-62030 · 15132-88380 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-62030 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-20010 · 15134-67010 · 15134-70030 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-03010 · 15135-15010 |
| 15193 | oil pump gasket | 15197-03020 · 15197-03040 · 15197-63021 · 15197-74030 · 15197-74040 |
