Toyota CAMRY Cylinder Block — Figure 1105

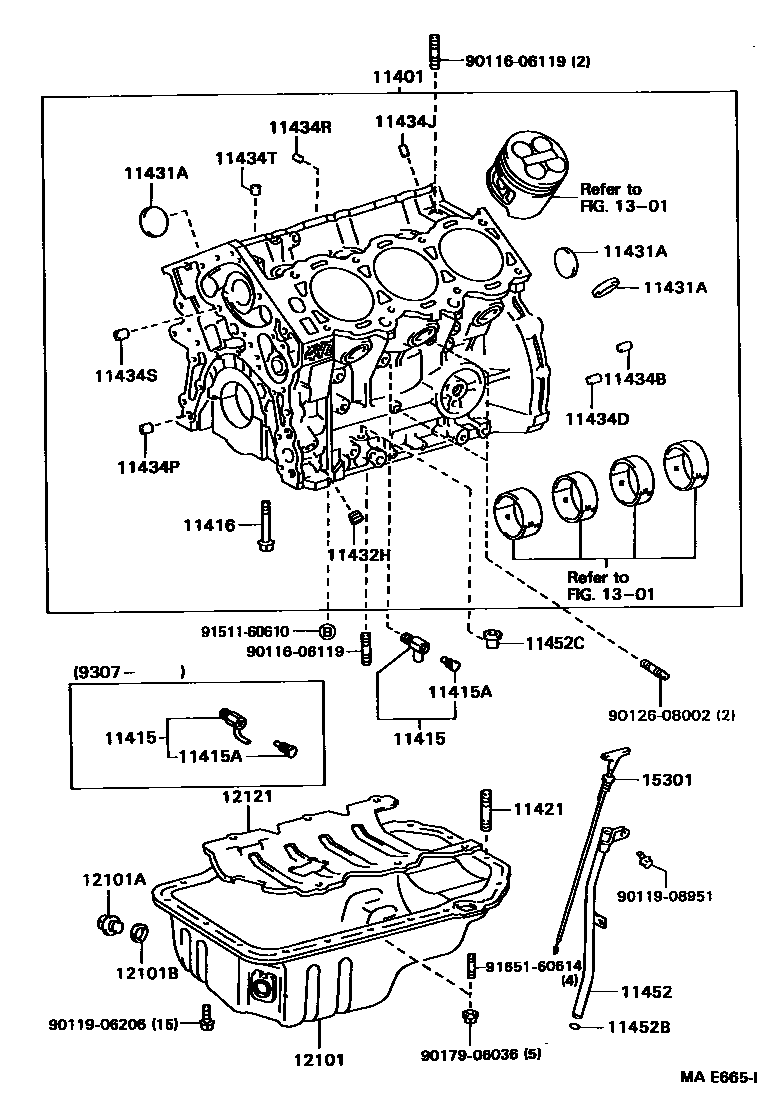

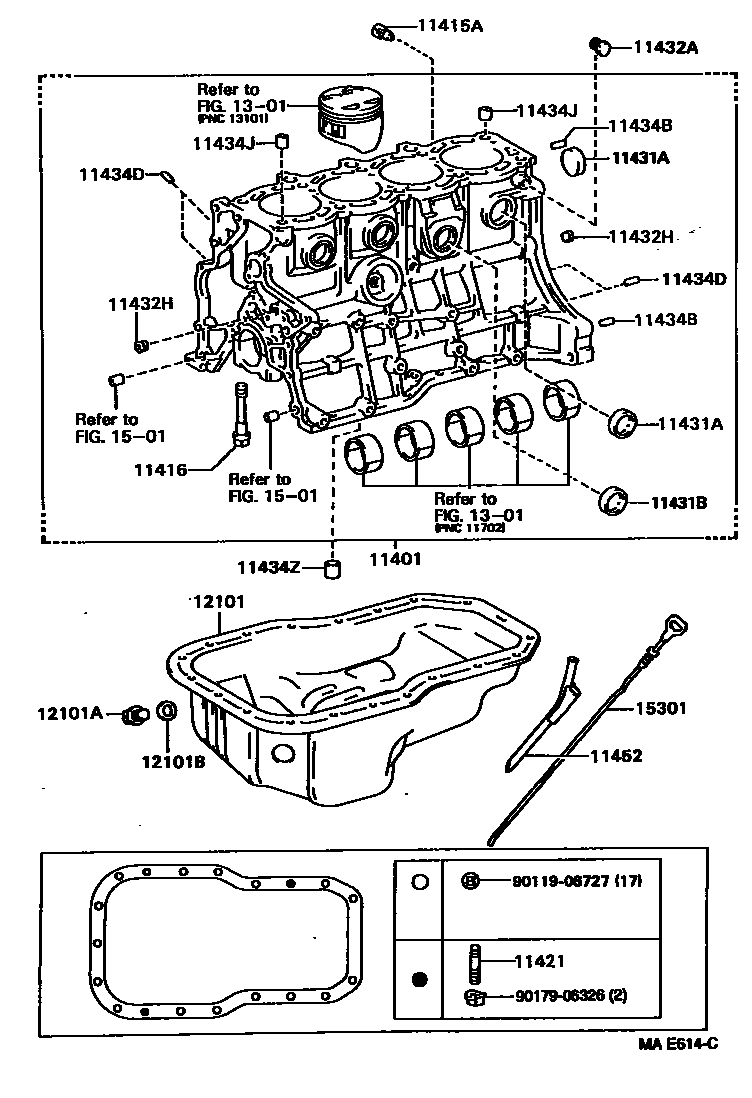

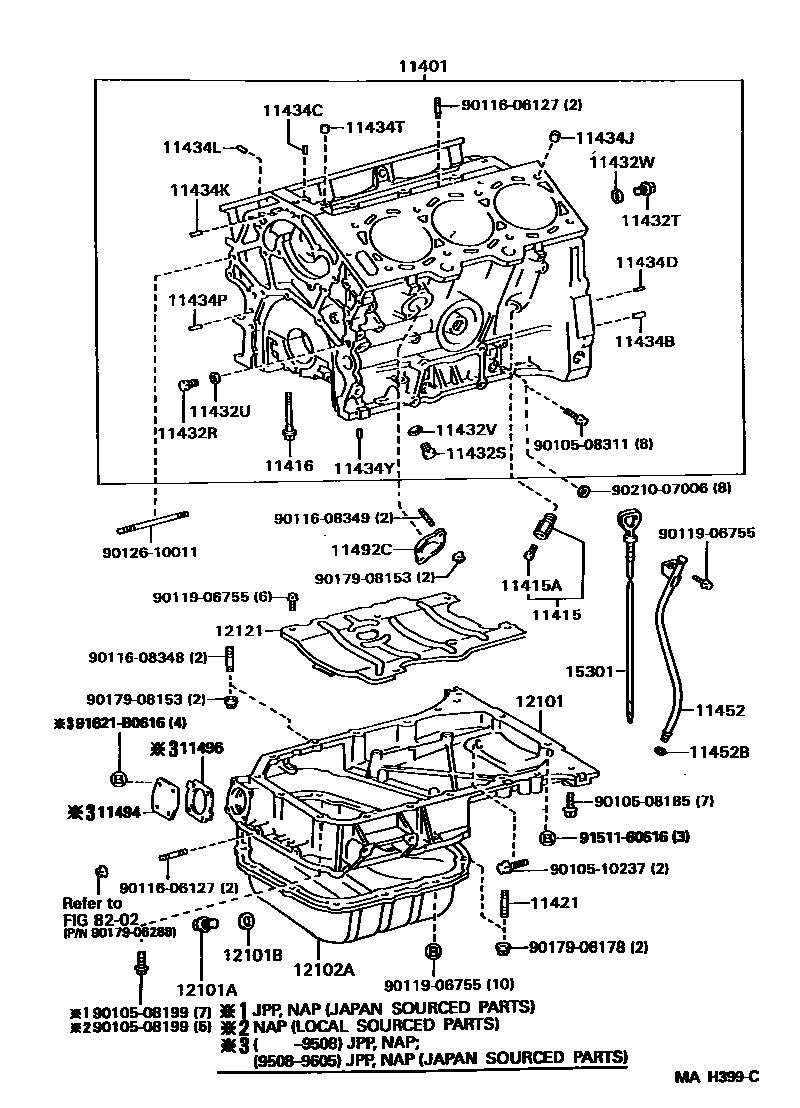

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 3 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-29515 · 11401-69456 · 11401-69457 · 11401-79555 · 11401-79556 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09095 · 90910-09100 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 · 90910-09087 · 96432-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10028 · 90910-02072 · 90910-02114 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 · 90116-06098 · 90116-06119 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-44000 |
| 11432A | No. 1 headed tapered thread plug | 90345-51006 |
| 11432H | No. 5 headed tapered thread plug | 90344-53006 · 90344-53015 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-16013 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-16013 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-20013 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-16009 |
| 11432V | No. 2 straight thread plug gasket (for cylinder block) | 90430-16009 |
| 11432W | No. 3 straight thread plug gasket (for cylinder block) | 90430-20004 · 90430-20012 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-04097 · 90250-06003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 · 90253-16001 |
| 11434K | Direct sales (for water pumps) | 90250-04097 |
| 11434L | Direct sales (for engine mounts) | 90250-04097 |
| 11434P | Direct sales (for oil pump components) | 90250-04097 · 90253-11021 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434S | Ring pin (for water pump assembly) | 90253-11021 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90253-11021 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 |
| 11434Z | Ring pin (for balancer) | 90253-13001 |
| 11452 | Engine oil level gauge guide | 11452-03020 · 11452-0A010 · 11452-0A020 · 11452-20010 · 11452-20020 · 11452-62030 · 11452-74070 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 11452C | Connector (for oil level gauge tube) | 90405-10033 |
| 11492C | coolant sealing plate | 11492-50010 |
| 11494 | Oil hole cover | 11494-46010 |
| 11496 | Oil hole cover gasket | 11496-46010 |
| 12101 | Oil pan sub-assembly | 12101-03030 · 12101-62050 · 12101-74110 · 12111-0A010 · 12111-0A020 · 12111-20020 · 12111-20030 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12027 · 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0A010 · 12102-20010 |
| 12121 | No. 1 oil pan baffle | 12121-0A010 · 12121-20020 · 12122-62020 |
| 15301 | Engine oil level scoring assembly | 15301-20020 · 15301-62040 · 15301-74070 |
