Toyota CAMRY Standard Tools — Figure 0901

Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 6 PNC and OE references.

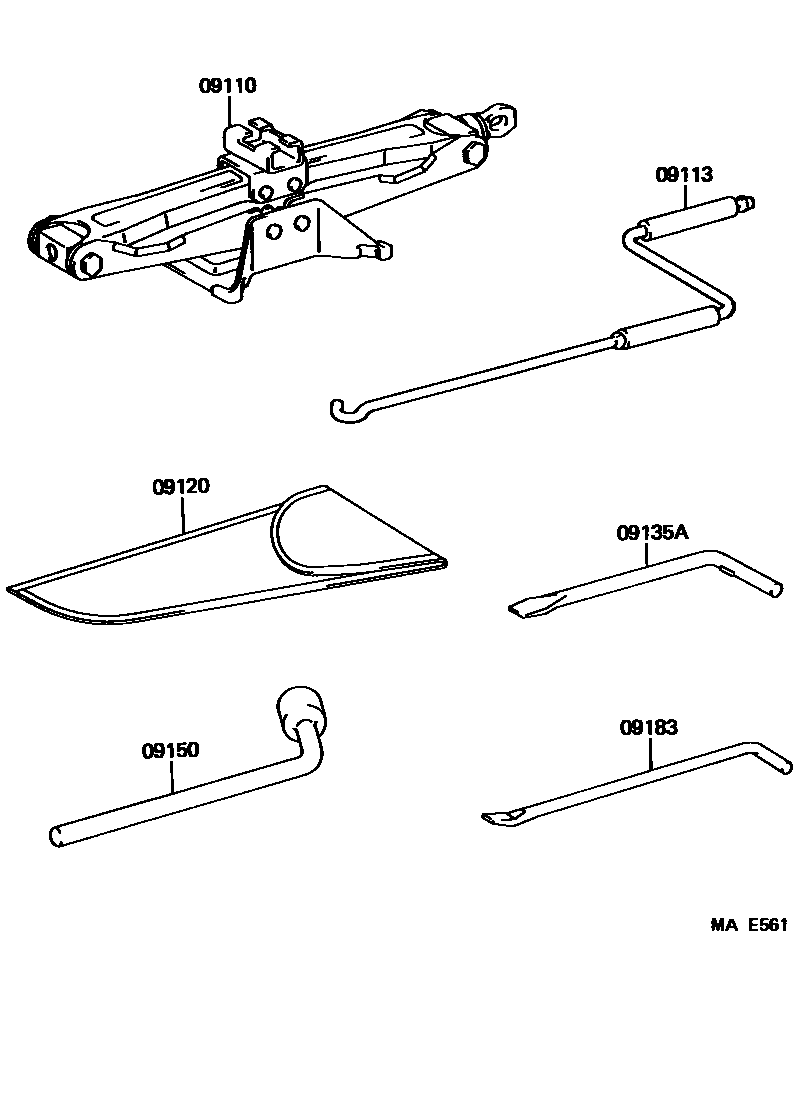

Toyota CAMRY Standard Tools EPC diagram — MAE561
Standard Tools — MAE561 (199106 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-06010 · 09111-17020 · 09111-20100 · 09111-20101
09113Jack Handle09113-06010
09120Tool Bag09120-01020
09135Ascrewdriver tip09135-03010
09150Wheel Nut Wrench09150-01010 · 09150-02020
09183Wheel Cap Remover09183-01020
