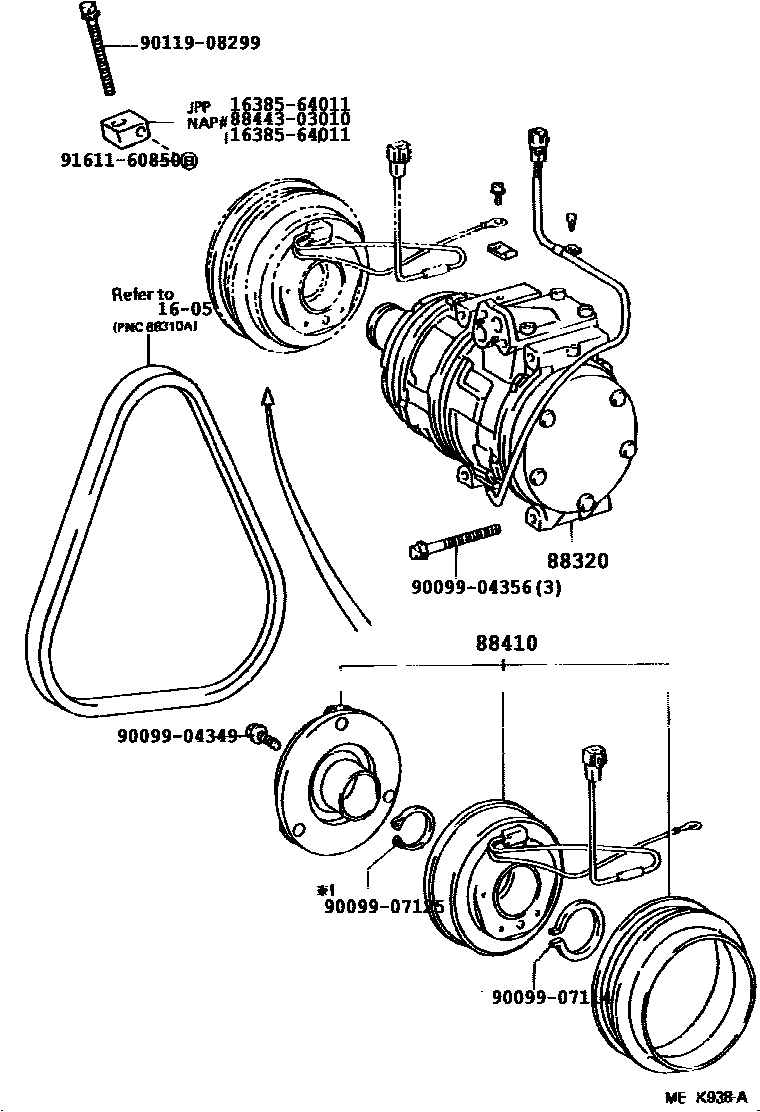

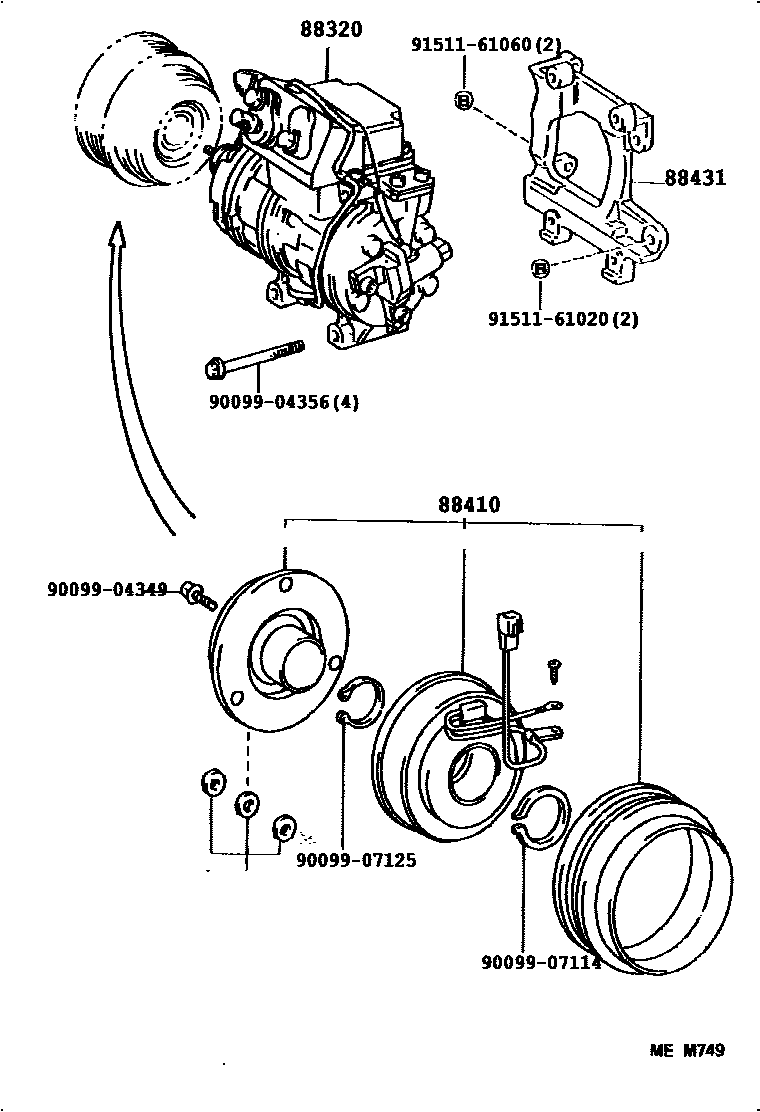

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-03010 · 88320-03020 |
| 88410 | Magnetic Clutch Assembly | 88410-03010 |
| 88431 | Compressor No. 1 mounting bracket | 88431-03011 |
