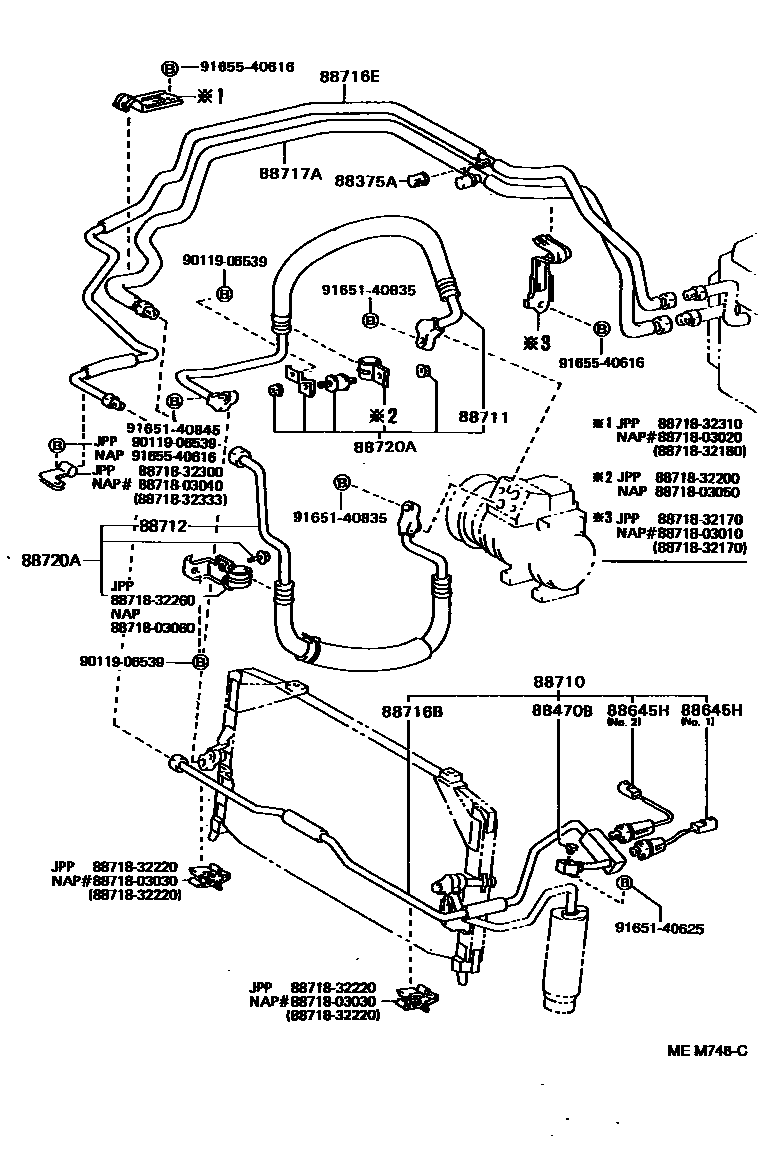

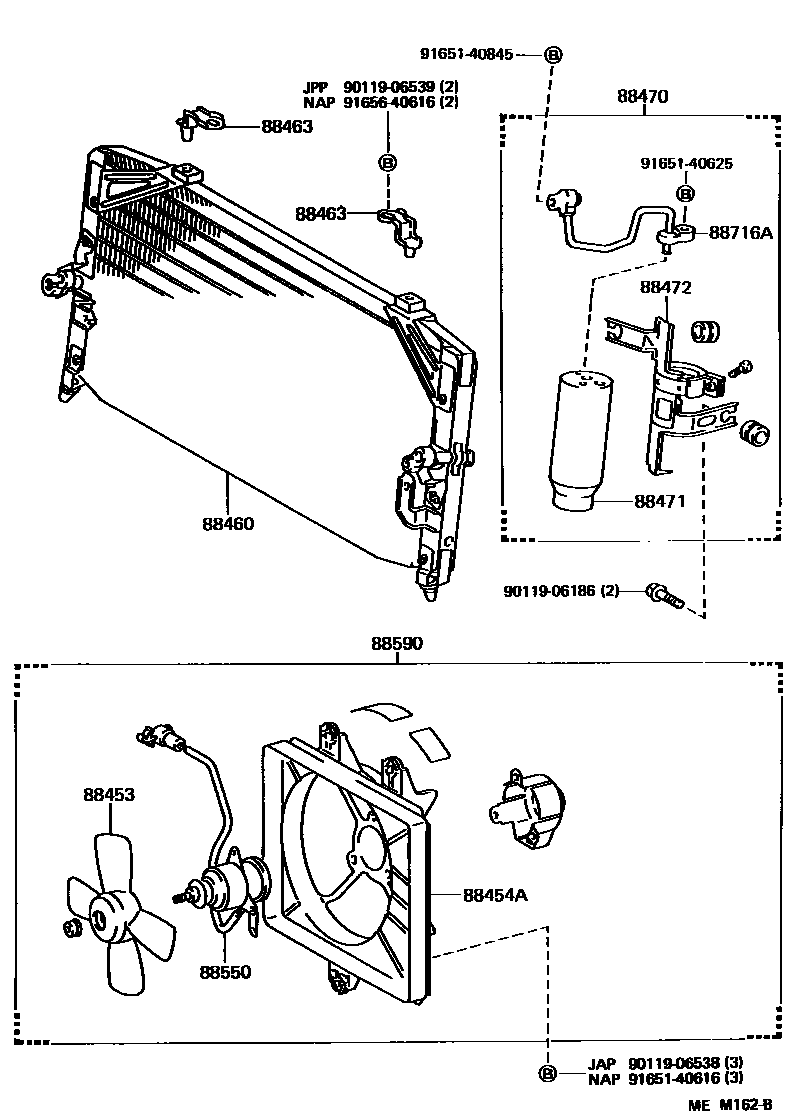

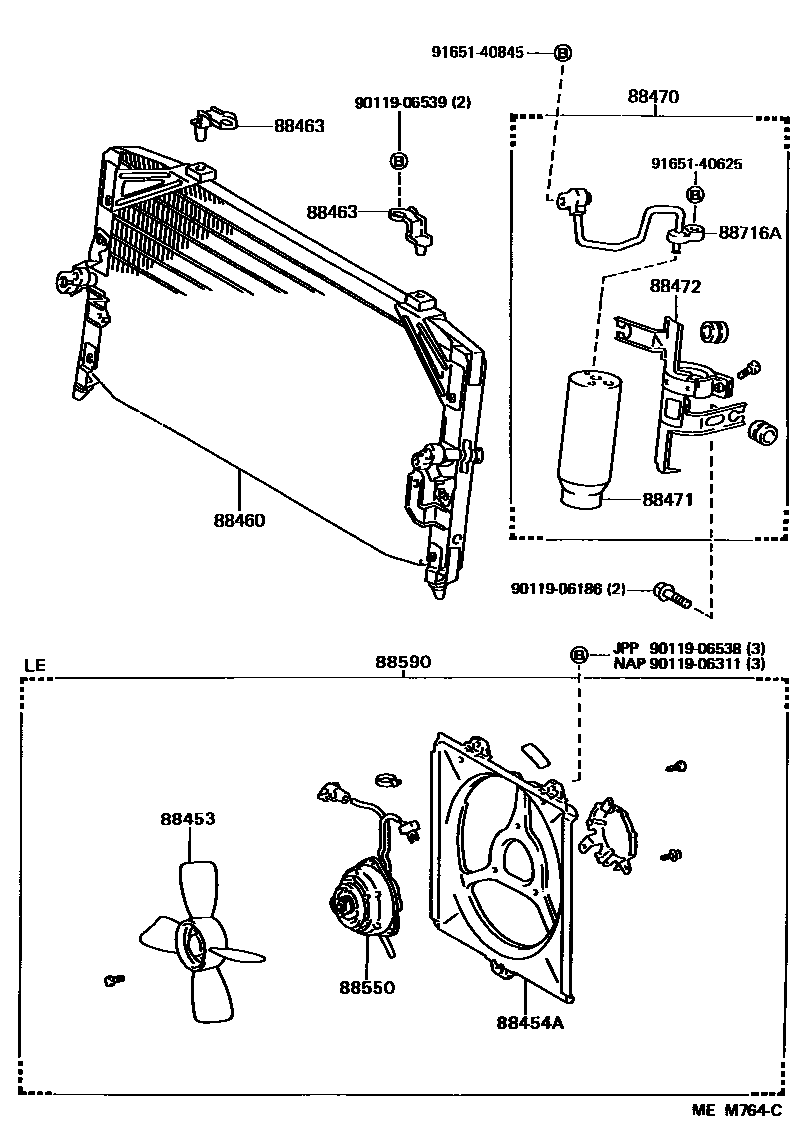

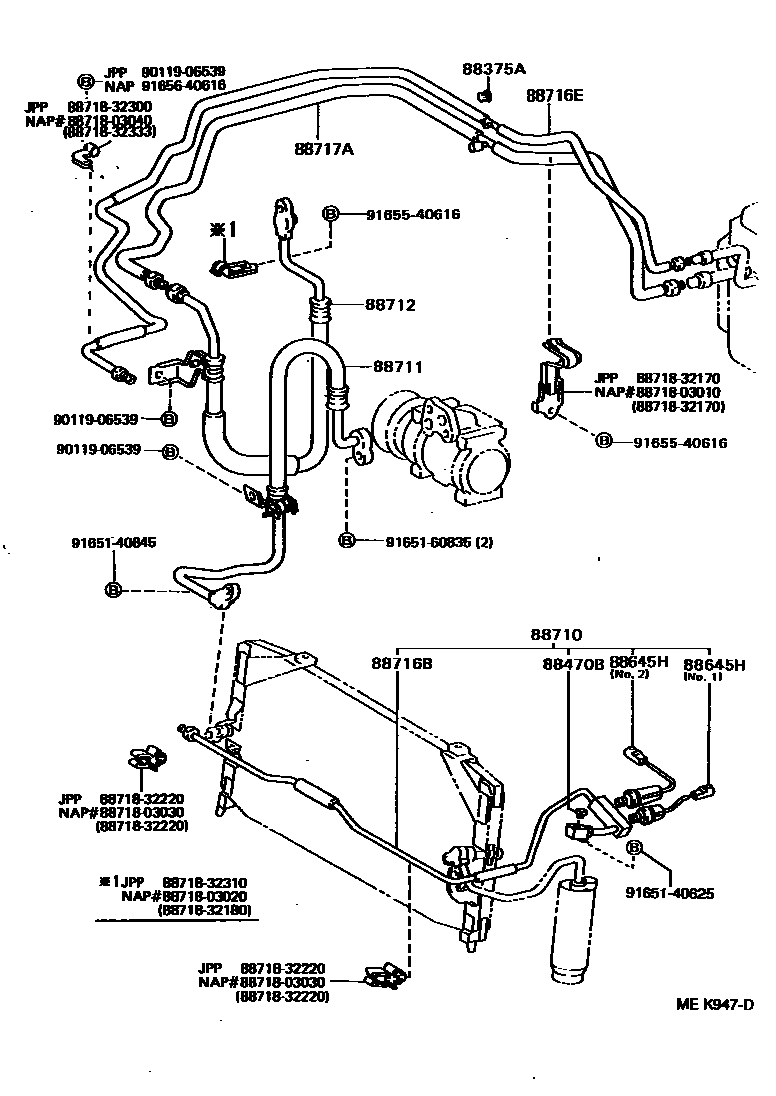

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-03010 |
| 88453 | Cooling fan (for condenser) | 88453-03010 · 88453-03020 |
| 88454A | fan cover | 88454-03010 · 88454-03020 |
| 88460 | Air conditioning condenser assembly | 88460-03010 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-03010 |
| 88470 | Cooler reservoir and dryer assembly | 88470-03010 |
| 88470B | fuse bolt | 88475-03010 |
| 88471 | Air conditioning fluid storage tank | 88471-03010 |
| 88472 | No. 1 liquid storage tank bracket | 88473-03010 |
| 88550 | Blower motor assembly (for condenser) | 88550-03010 · 88550-03020 |
| 88590 | Blower assembly with hood | 88590-03010 · 88590-03020 |
| 88645H | No. 1 pressure switch | 88645-03010 · 88645-03020 |
| 88710 | Air conditioning pipe assembly | 88710-03010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-03010 · 88711-03020 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-03010 · 88712-03011 · 88712-03020 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-03010 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-03030 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-03040 |
| 88717A | Cooler refrigerant suction pipe A | 88717-03010 · 88717-03011 |
| 88720A | Air conditioning hoses and accessories | 88720-03010 · 88720-03020 |
