Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

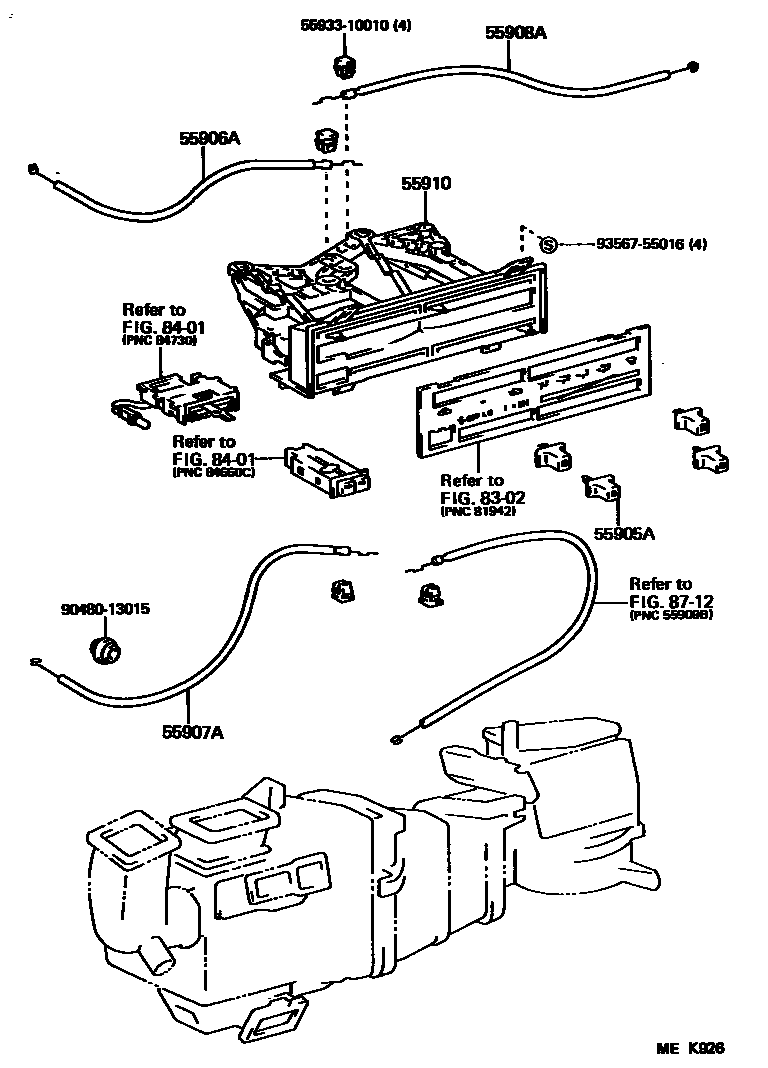

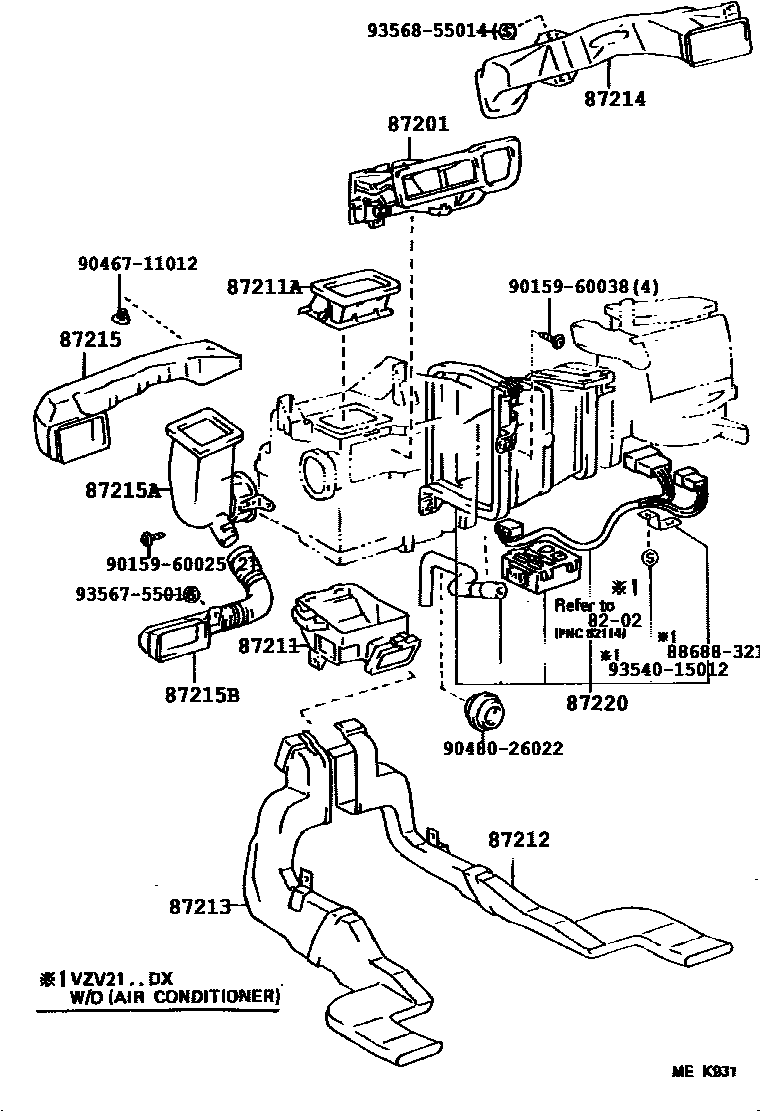

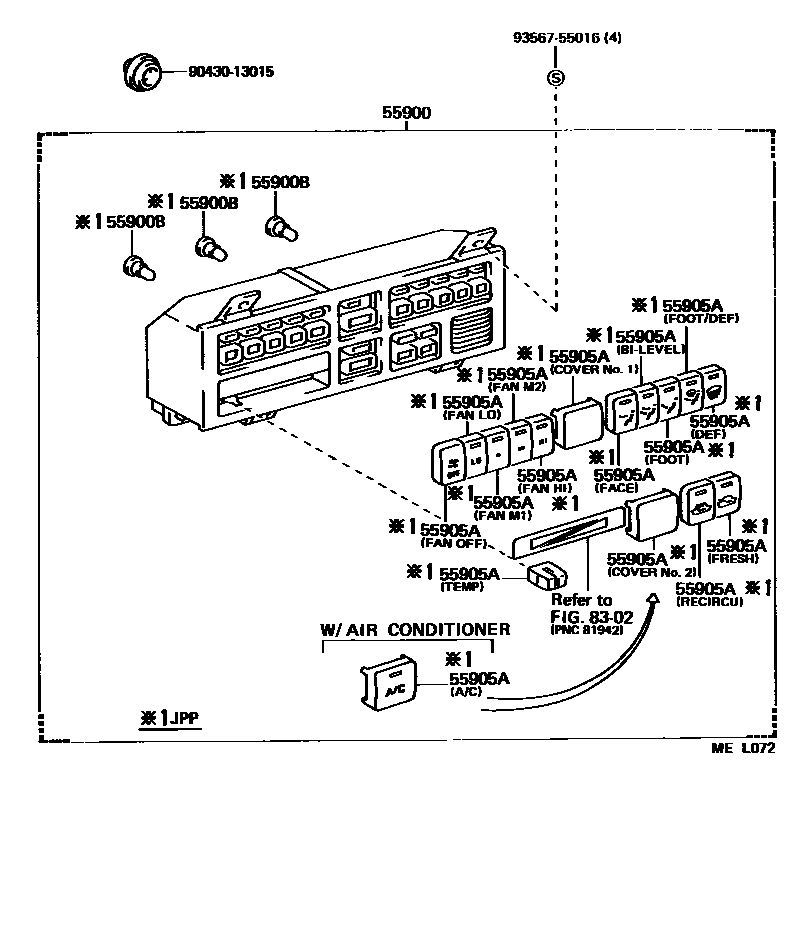

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55900 | Air conditioning control assembly | 55900-32070 · 55900-32110 |
| 55900B | air conditioning control light bulb | 84999-70004 |
| 55905A | Heater control button | 55905-32190 |
| 55906A | Defroster damper control cable sub-assembly | 55906-32070 · 55906-32071 |
| 55907A | Water valve control cable sub-assembly | 55907-32040 · 55907-32041 |
| 55908A | Intake air valve control cable sub-assembly | 55908-32060 · 55908-32061 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-32070 · 55910-32071 |
| 87201 | No. 1 air duct sub-assembly | 87201-03010 |
| 87211 | No. 1 air duct | 87201-03020 |
| 87211A | Duct No. 2 | 87211-03010 |
| 87212 | No. 1 rear air duct | 87212-03010 |
| 87213 | No. 2 rear air duct | 87213-03010 |
| 87214 | Air duct No. 1 on the right | 55086-03010 |
| 87215 | Air duct No. 1 on the left | 55084-03010 |
| 87215A | Air duct No. 2 on the left | 55085-03010 · 55085-03020 |
| 87215B | Air duct No. 3 on the left | 55088-03010 |
| 87220 | Air duct assembly | 87220-03010 · 87220-03020 |
