Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

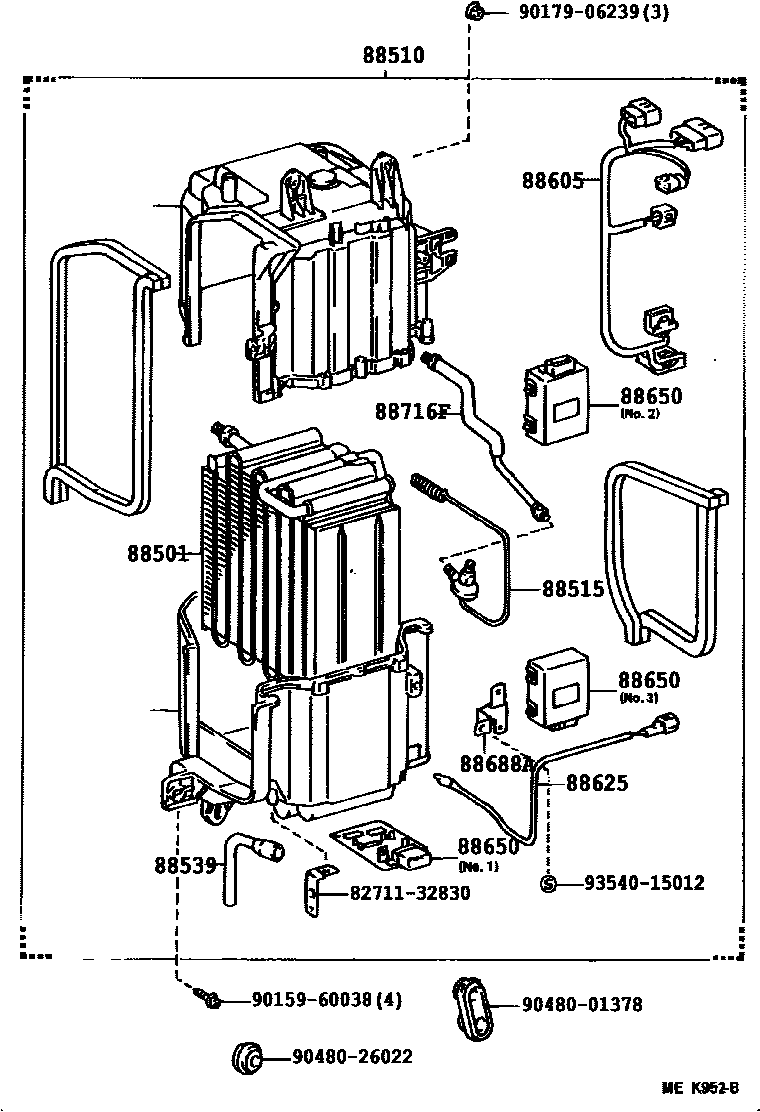

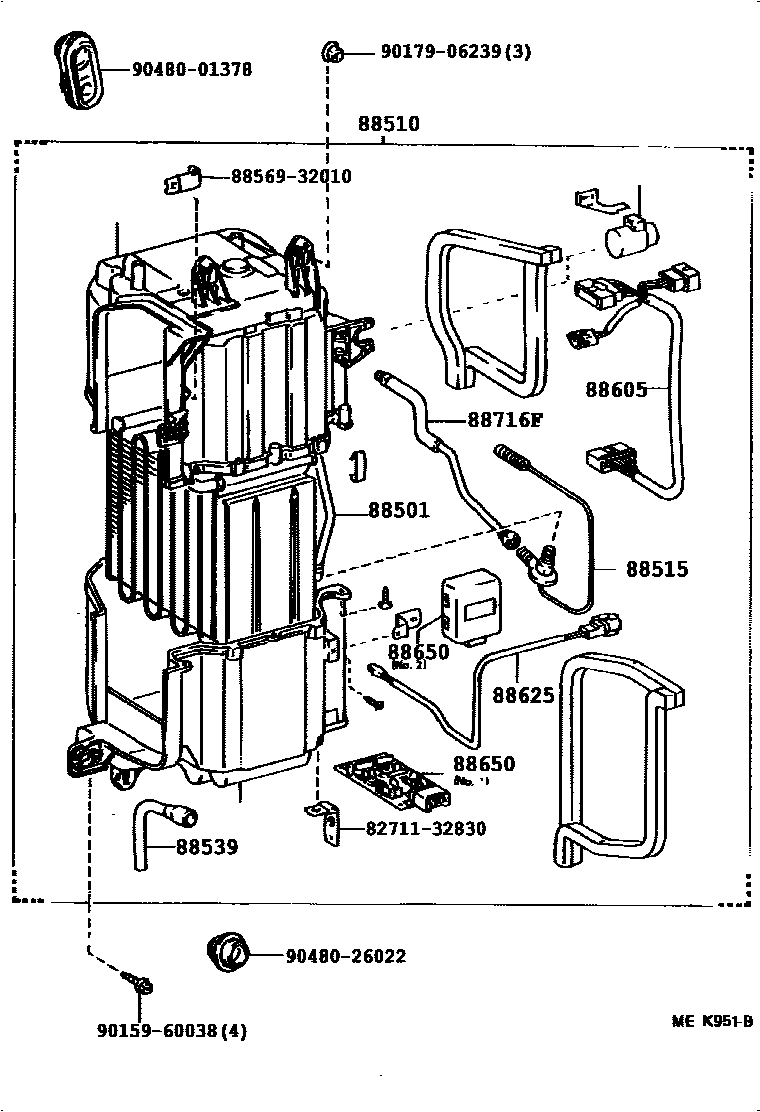

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-03010 |
| 88510 | Cooler device assembly | 88510-03010 · 88510-03020 |
| 88515 | Cooler expansion valve | 88515-03010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-03020 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-03010 · 88605-03020 |
| 88625 | Cooler No. 1 Thermistor | 88625-03010 |
| 88650 | Cooler stabilized amplifier assembly | 88650-03010 · 88650-03020 · 88650-03030 · 88650-03040 · 88650-20340 |
| 88688A | Cooler stabilized amplifier stand | 88688-32180 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-03020 |
