Toyota CAMRY 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

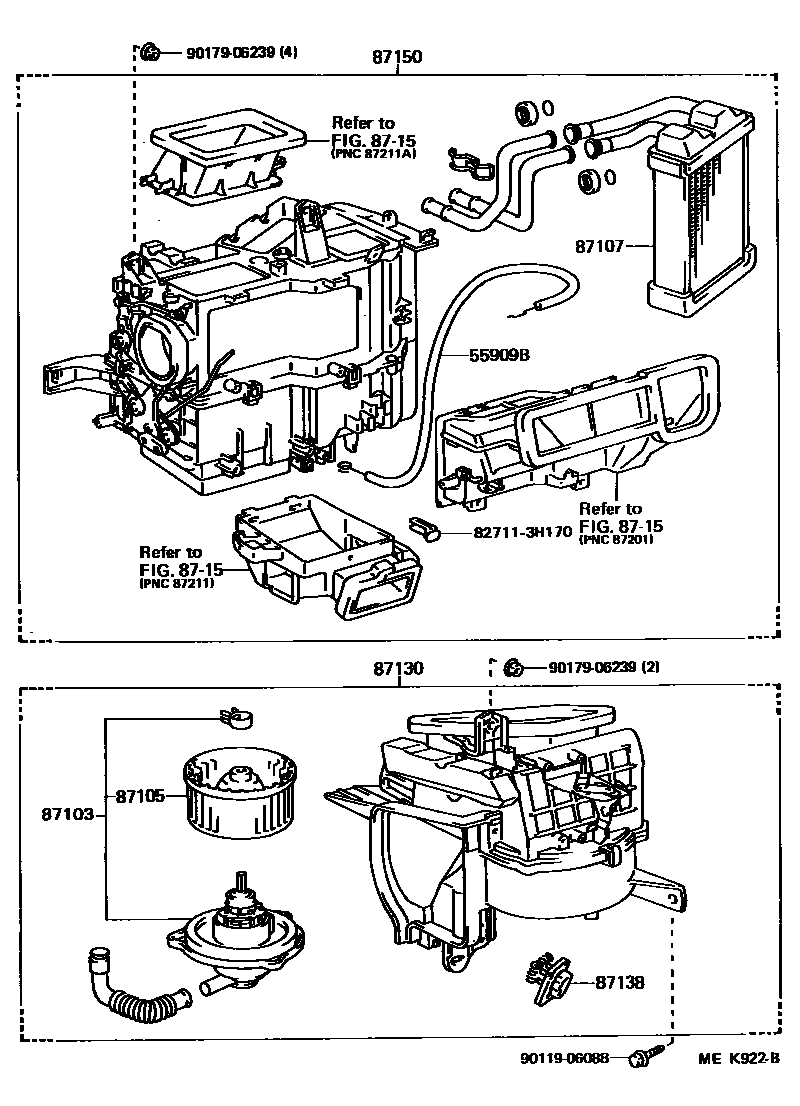

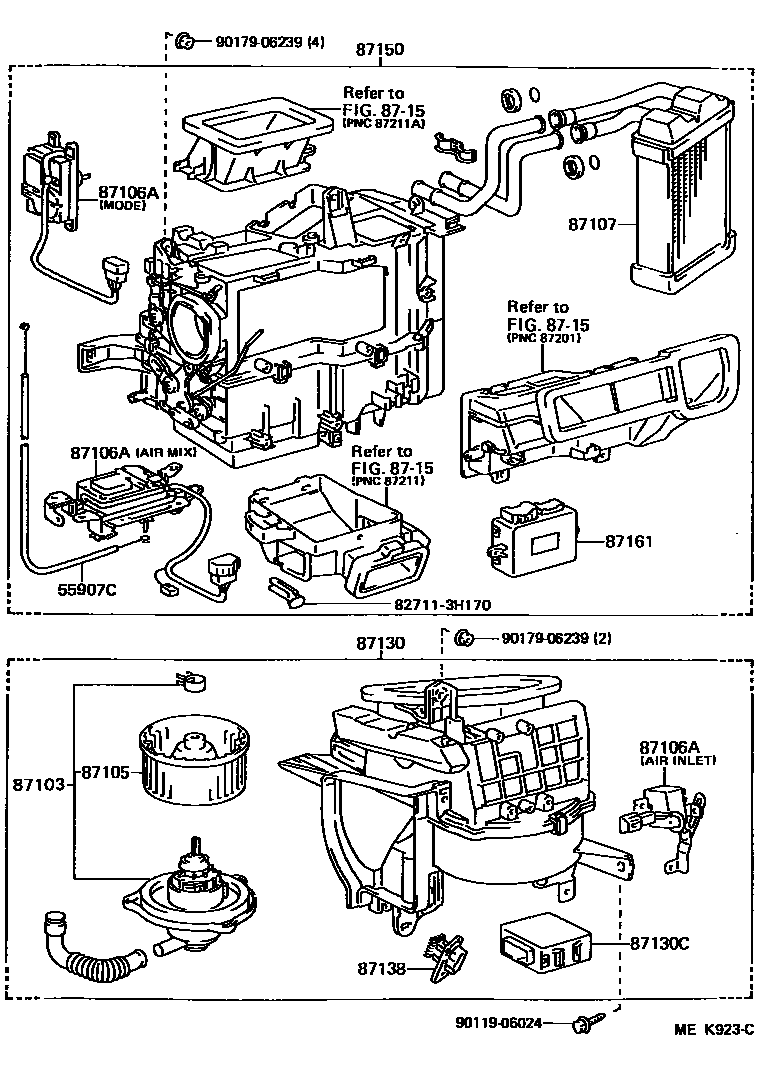

Toyota CAMRY EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 87286-03010 |
| 55909B | Air mix damper control cable sub-assembly | 55909-03010 · 55909-03011 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-03010 |
| 87105 | Heater blower fan sub-assembly | 87105-03010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-03010 · 87106-03020 · 87106-03030 |
| 87107 | Heater radiator device sub-assembly | 87107-03010 |
| 87130 | Front heater blower assembly | 87130-03010 · 87130-03020 |
| 87130C | Heater Blower Motor Relay | 88630-03010 |
| 87138 | Heater Blower Resistor | 87138-03010 · 87138-03020 |
| 87150 | Heater radiator assembly | 87150-03010 · 87150-03011 · 87150-03020 · 87150-03021 |
| 87161 | Heater servo motor amplifier | 87161-03010 |
