Toyota CAMRY 后视镜 — Figure 8701

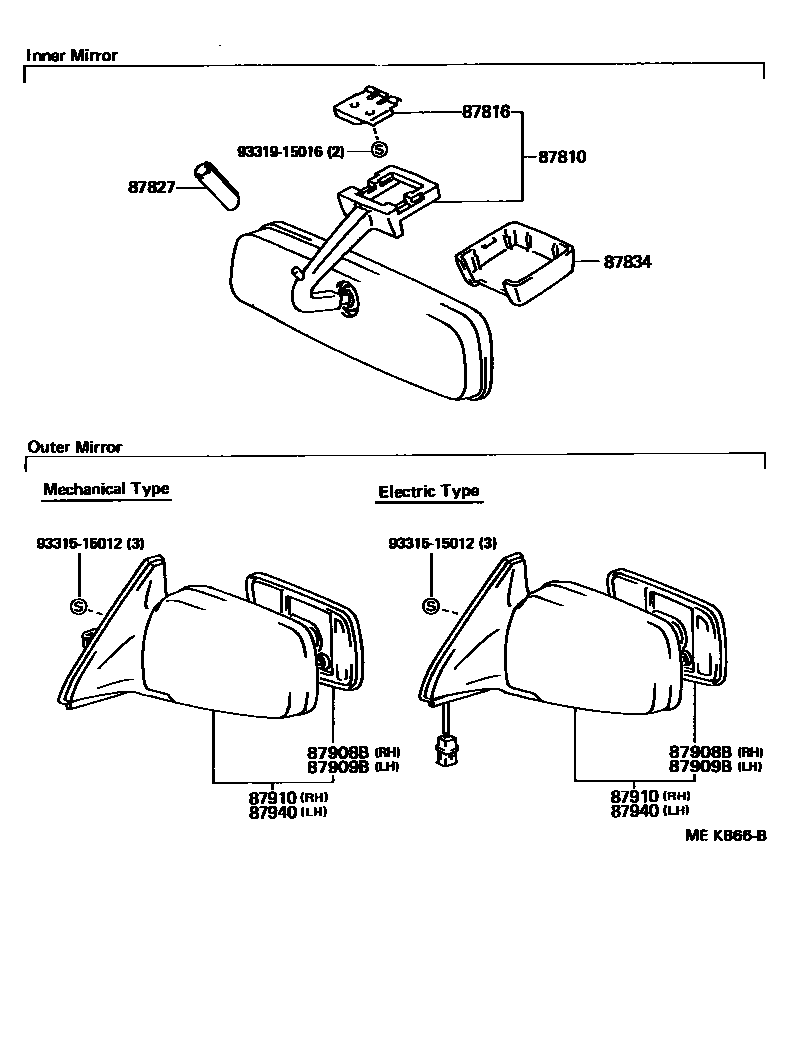

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-22190 |
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87827 | Interior rearview mirror shock absorber | 87828-03010 |
| 87908B | Right rearview mirror sub-assembly | 87931-32370 |
| 87909B | Left rearview mirror sub-assembly | 87961-32400 |
| 87910 | Right exterior rearview mirror assembly | 87910-32250 · 87910-32261 |
| 87940 | Left exterior rearview mirror assembly | 87940-32260 · 87940-32271 |
