Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

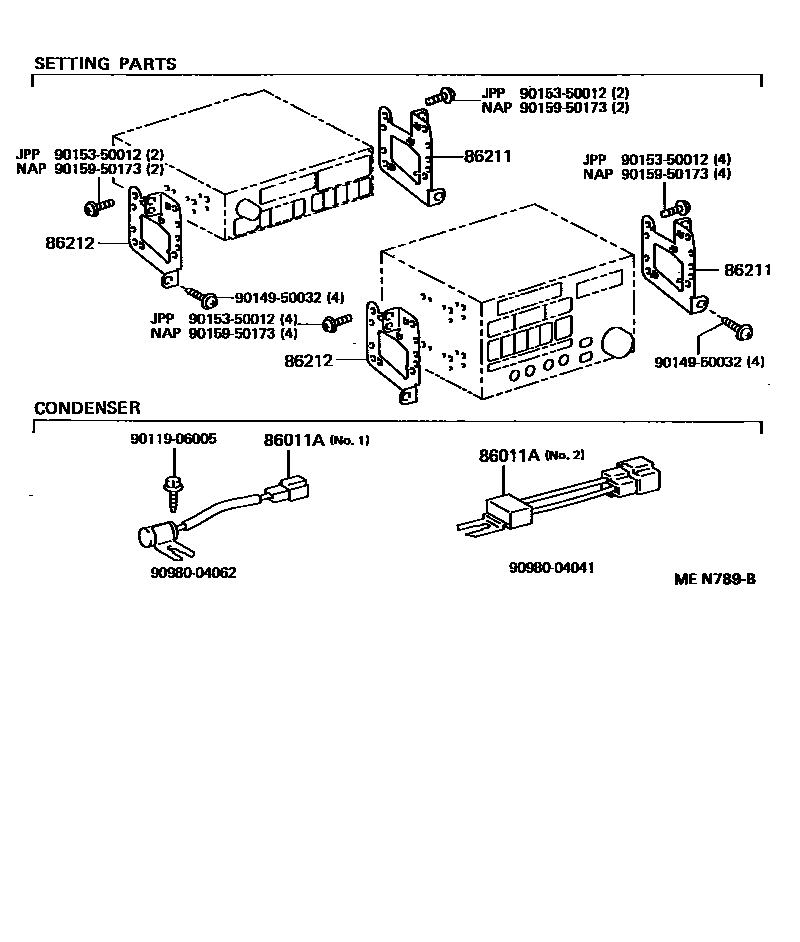

| 86011A | radio settings phase modulator | 90980-04041 · 90980-04062 |

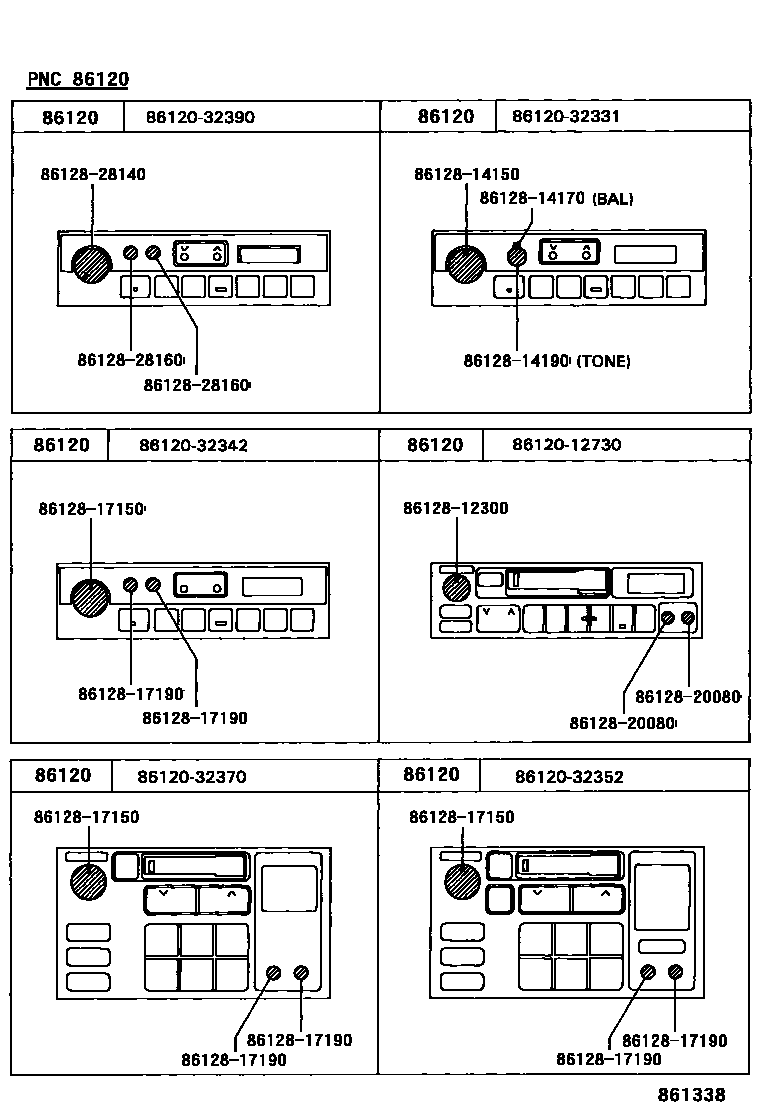

| 86120 | Radio assembly | 86120-03010 · 86120-03011 · 86120-03020 · 86120-03021 · 86120-03022 · 86120-03030 · 86120-03040 · 86120-03041 · 86120-03042 · 86120-03050 |
| 86211 | No. 1 radio bracket | 86211-03010 |
| 86212 | No. 2 radio bracket | 86212-03010 |
