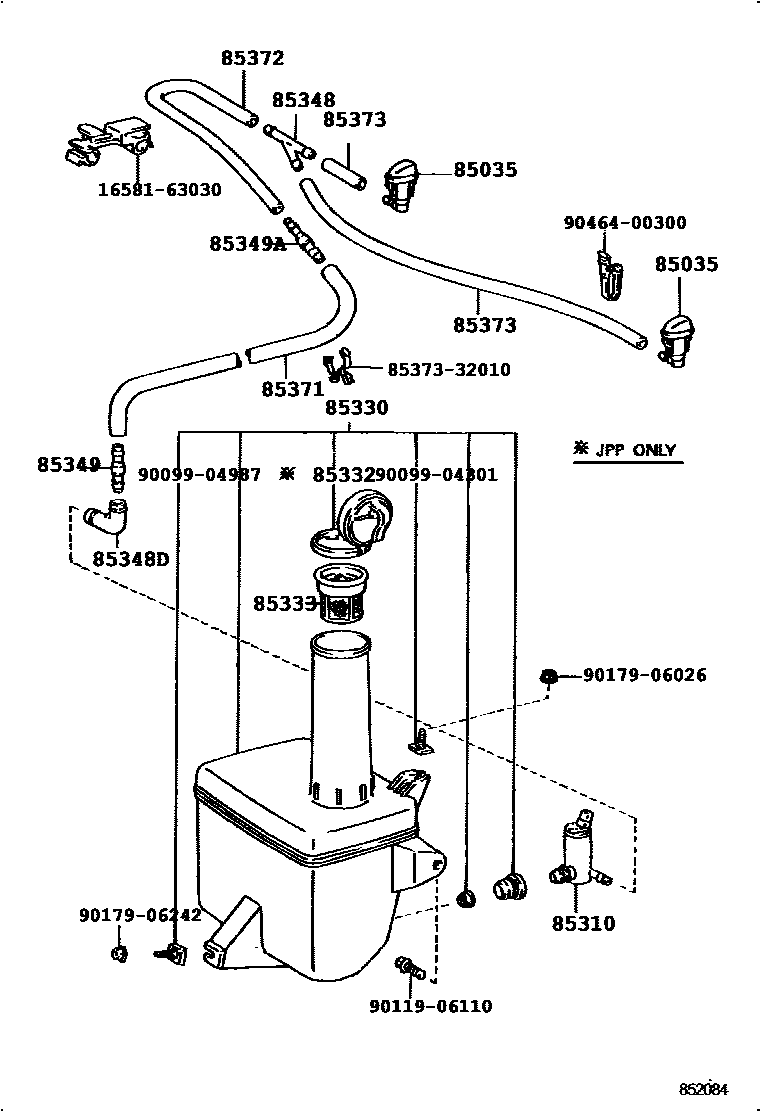

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85035-32120 · 85035-32140 |
| 85310 | Windshield washer motor and pump assembly | 85310-03010 |
| 85330 | Windshield washer fluid tank assembly | 85331-03010 |
| 85332 | Windshield washer fluid tank cap | 85332-03010 |
| 85333 | Windshield washer fluid tank filter | 85333-03010 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85378-03010 |
| 85348D | No. 1 windshield washer elbow joint | 85355-32110 · 85376-03010 |
| 85349 | Windshield washer hose connector No. 1 | 85349-20010 · 85375-03010 |
| 85349A | Windshield washer hose connector No. 2 | 85349-14010 · 85377-03010 |
| 85371 | Windshield washer hose (from motor to connector) | 90080-44022 · 90099-33192 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90080-44021 · 90099-33080 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90080-44019 · 90080-44020 |
