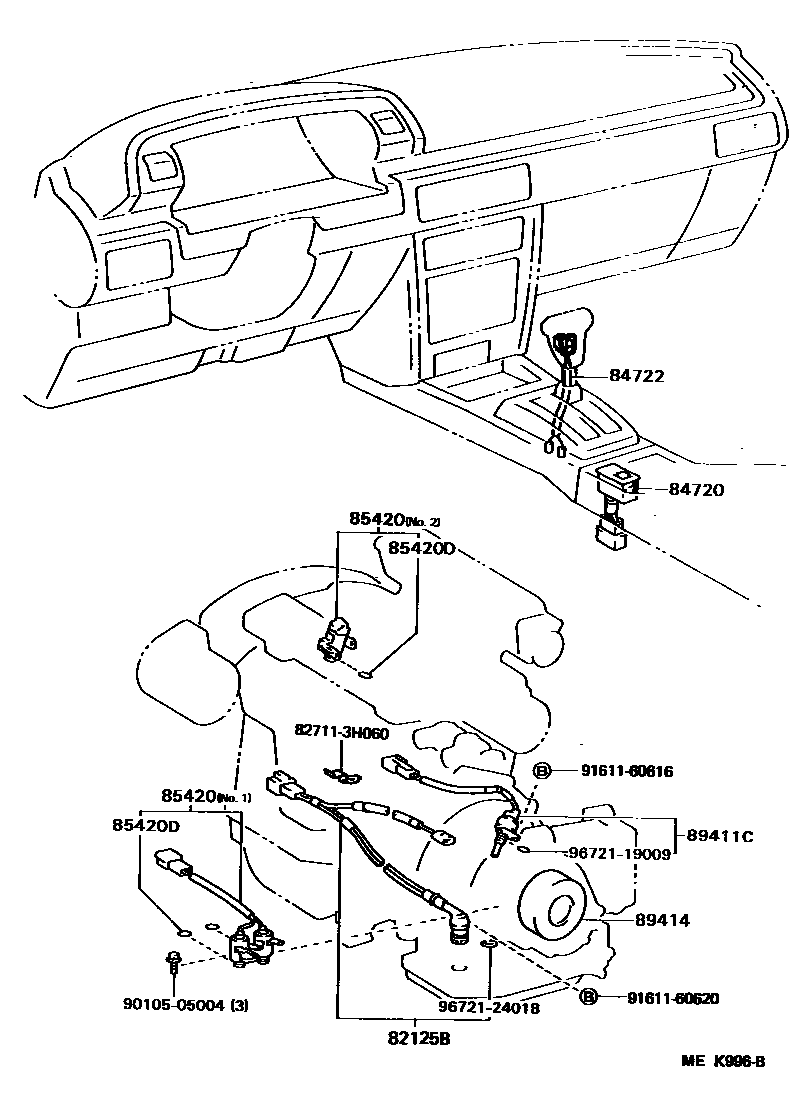

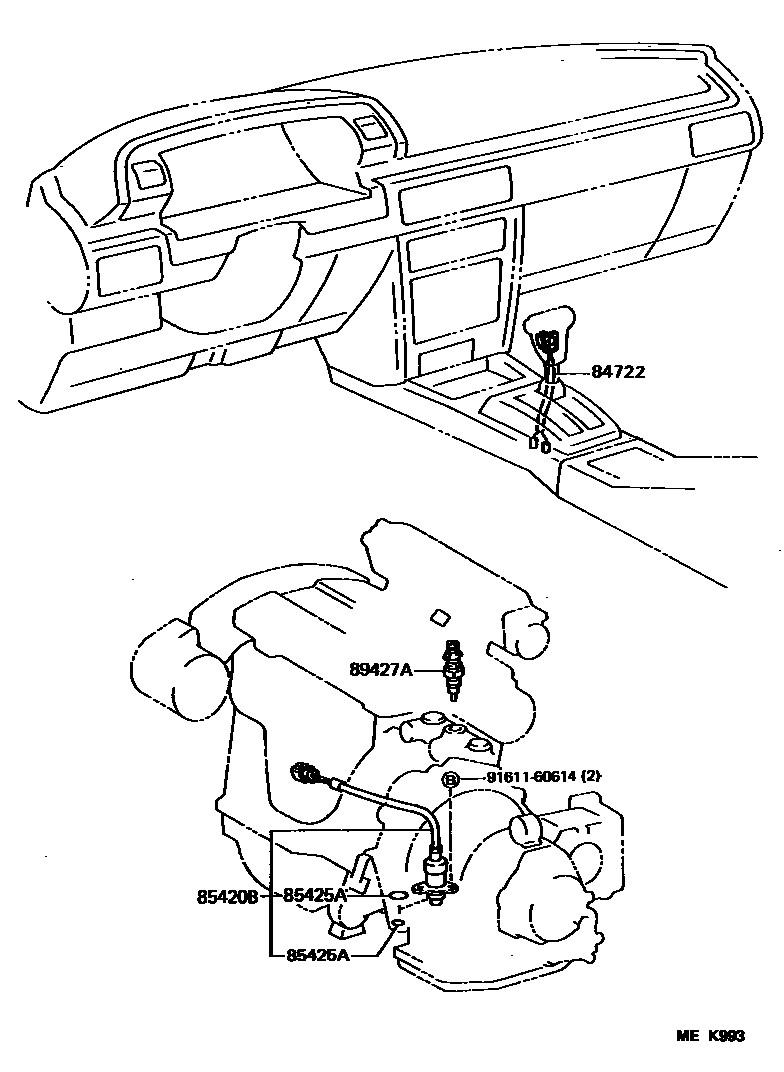

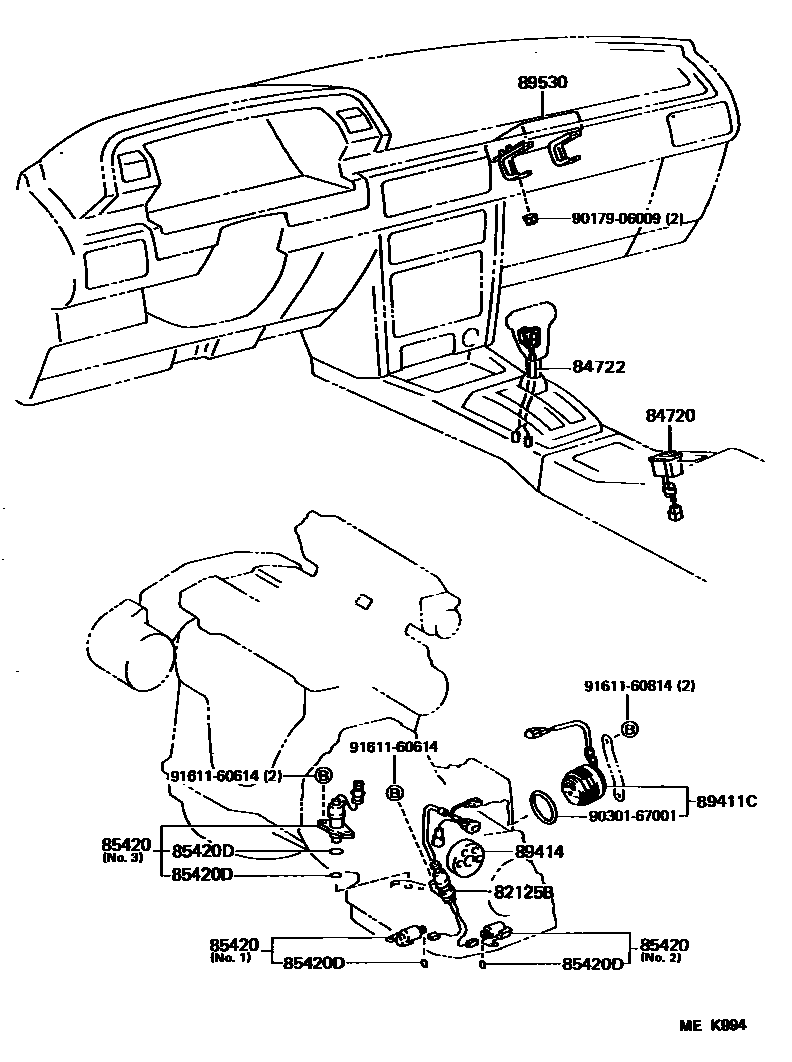

Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125B | Transmission wiring harness | 82125-20090 · 82125-32030 |
| 85420 | Transmission solenoid valve assembly | 85420-32020 · 85420-32021 · 85420-32040 · 85420-32041 · 85420-32071 · 85420-32102 · 85420-32120 |
| 85420B | Transmission solenoid valve assembly | 85420-32081 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 · 90301-06005 · 96721-19017 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-06005 · 96721-19017 |
| 89411C | Speed sensor | 89411-20020 · 89411-32020 · 89411-32040 |
| 89414 | sensor rotor | 89414-32010 · 89414-32020 · 89414-33010 |
| 89427A | temperature switch | 89427-12070 |
| 89530 | Transmission control ECU assembly | 89530-32310 |
