Toyota CAMRY indicator light — Figure 8302

Toyota CAMRY EPC diagram 8302, indicator light, with 1 images and 2 PNC and OE references.

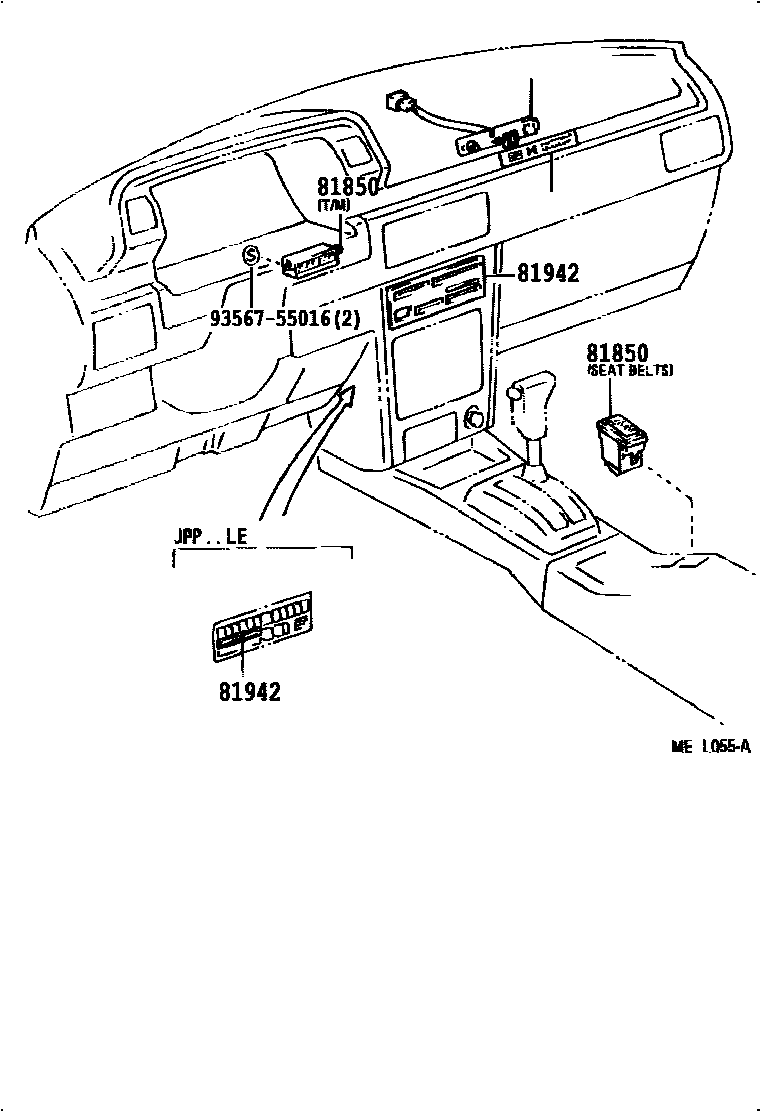

Toyota CAMRY indicator light EPC diagram — 831585
indicator light — 831585 (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
81850Indicator light assembly81850-22252 · 81850-32130 · 81850-32140
81942Heater control nameplate81942-32041
