Toyota CAMRY 仪表 — Figure 8301

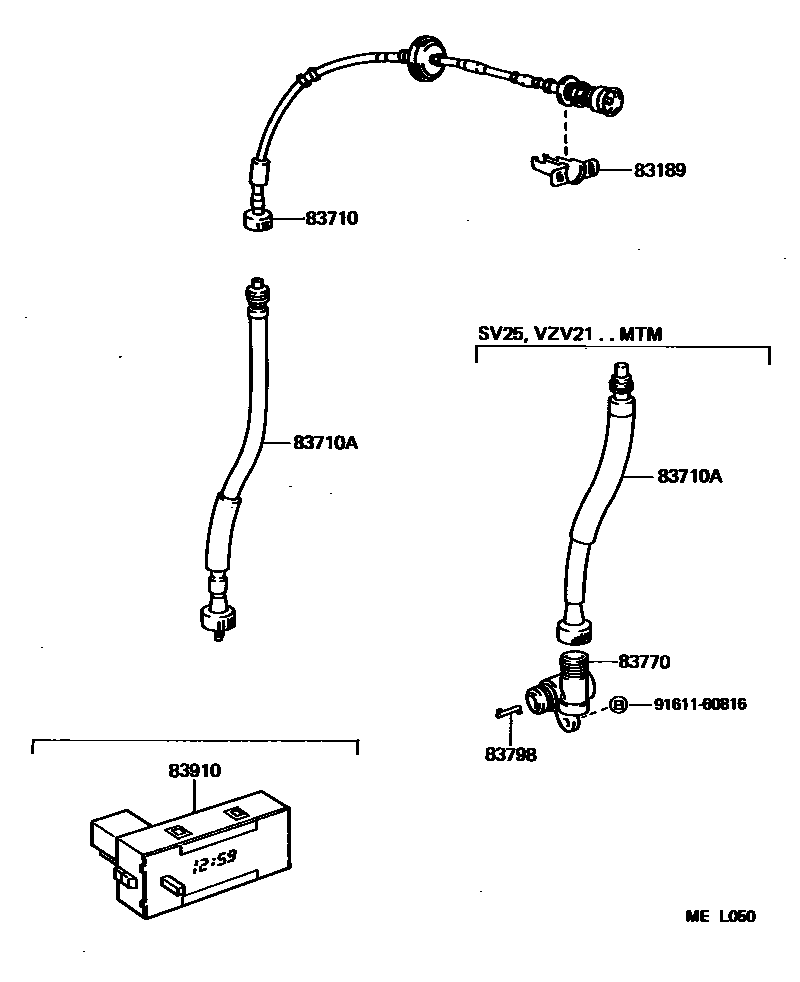

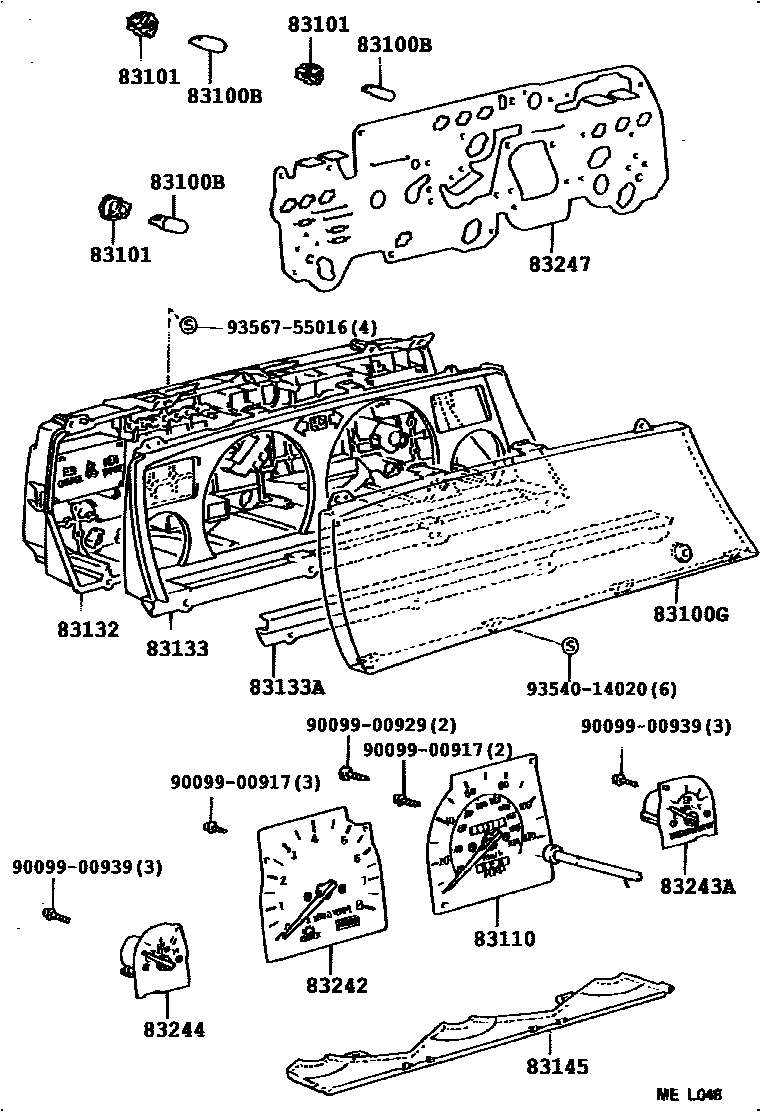

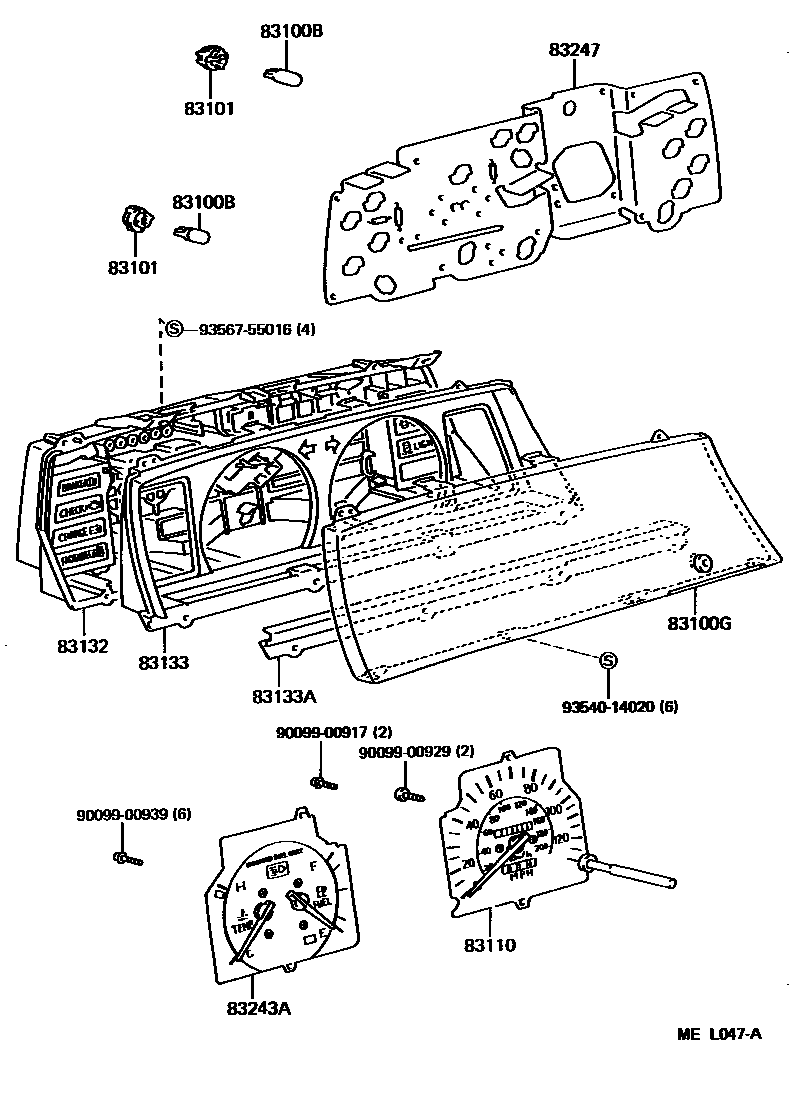

Toyota CAMRY EPC diagram 8301, 仪表, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

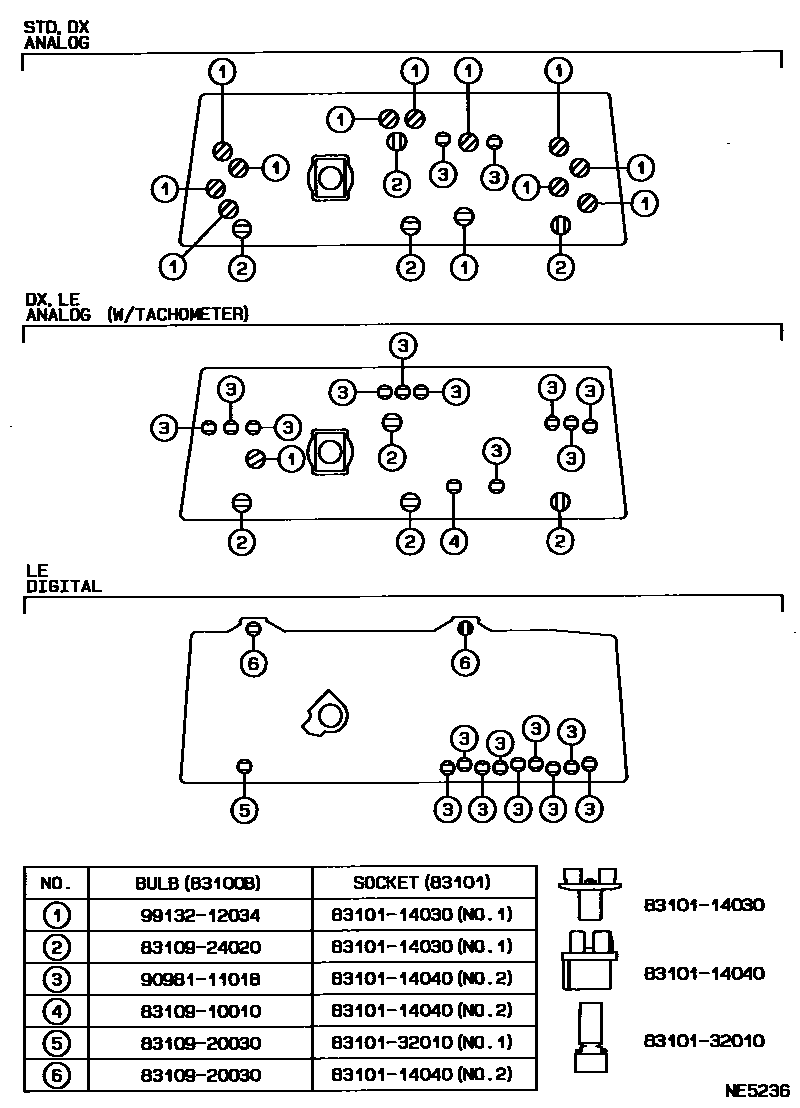

| 83100B | Combination instrument bulb No. 1 | 83109-10010 · 83109-24020 · 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83138-32050 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83110 | Speedometer assembly | 83110-03050 · 83110-03051 · 83110-03060 · 83110-03061 · 83110-03070 · 83110-03071 · 83110-03080 · 83110-03081 · 83110-32522 · 83110-32562 · 83110-32570 · 83110-32571 · 83110-32580 · 83110-32581 |
| 83132 | Instrument cluster housing | 83132-32500 · 83132-32520 · 83132-32540 |
| 83133 | Combined instrument panel No. 1 | 83133-32550 · 83133-32690 |
| 83133A | Combined instrument panel No. 2 | 83133-32610 |
| 83145 | Instrument No. 1 lampshade | 83145-32370 |
| 83189 | instrument bracket | 83189-03010 |
| 83242 | Engine tachometer assembly | 83242-32440 · 83242-32480 · 83242-32830 |
| 83243A | Fuel gauge sub-assembly | 83243-32670 · 83243-32690 · 83243-32710 |
| 83244 | Water temperature meter sub-assembly | 83244-32550 |
| 83247 | Instrument circuit board | 83247-32480 · 83247-32780 · 83247-32880 · 83247-3H310 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-32210 · 83710-32270 |
| 83710A | No. 2 speedometer transmission cable assembly | 83710-32170 · 83710-32200 · 83710-32220 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-17010 |
| 83798 | Speedometer transmission flexible shaft adapter key | 83798-17010 |
| 83910 | clock assembly | 83910-03030 · 83910-32061 |
