Toyota CAMRY 线束和卡夹 — Figure 8202

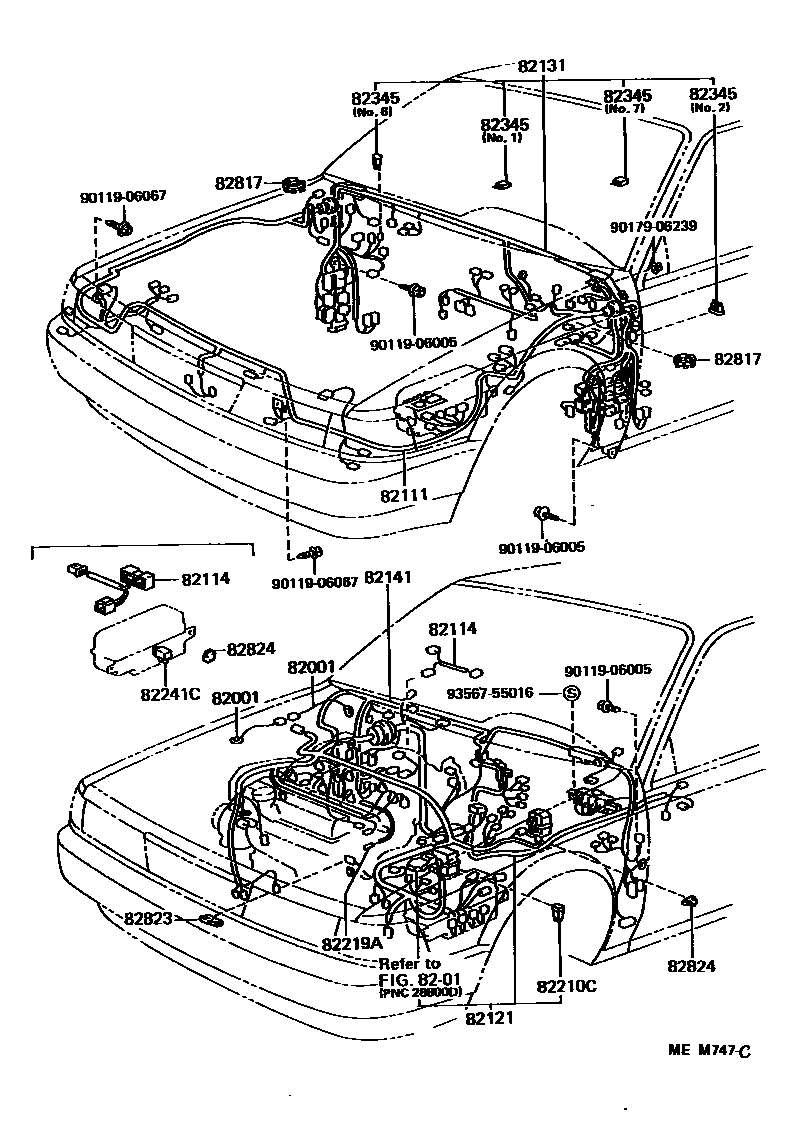

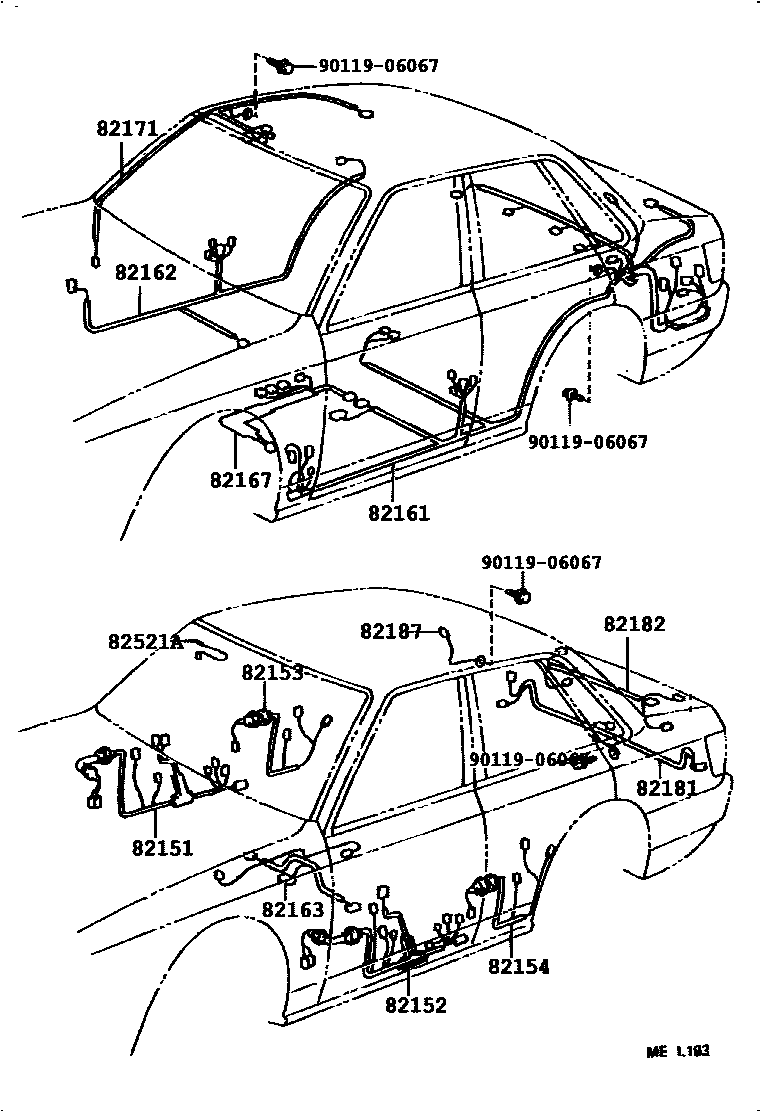

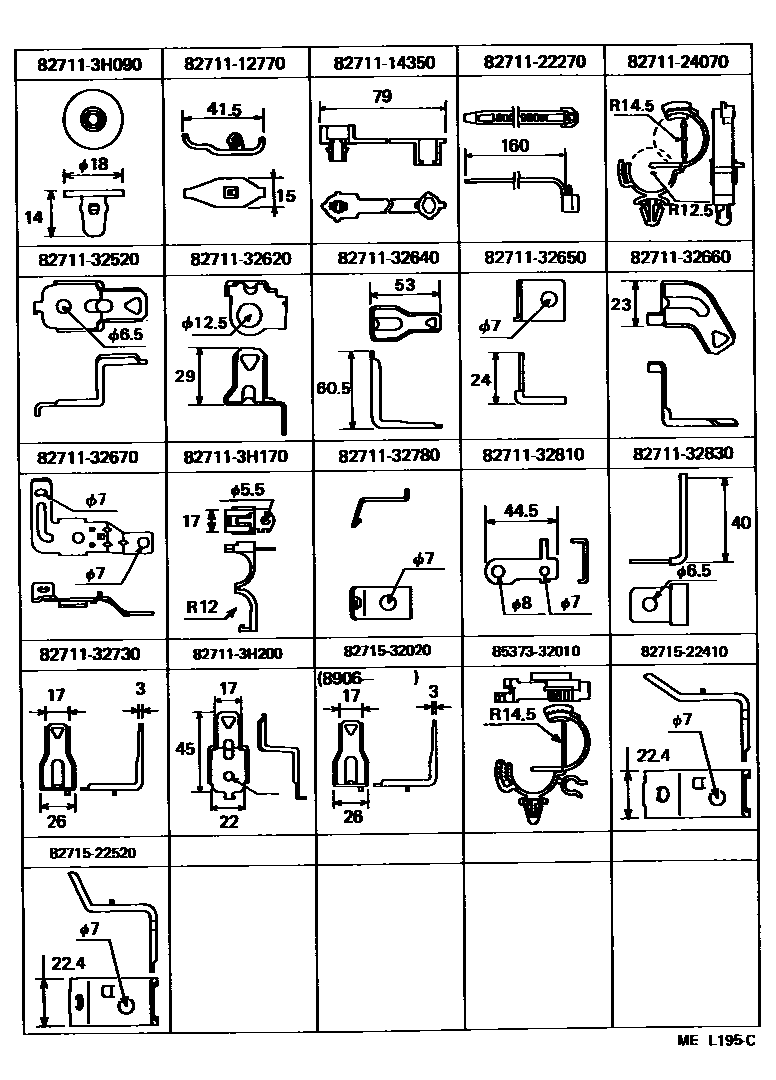

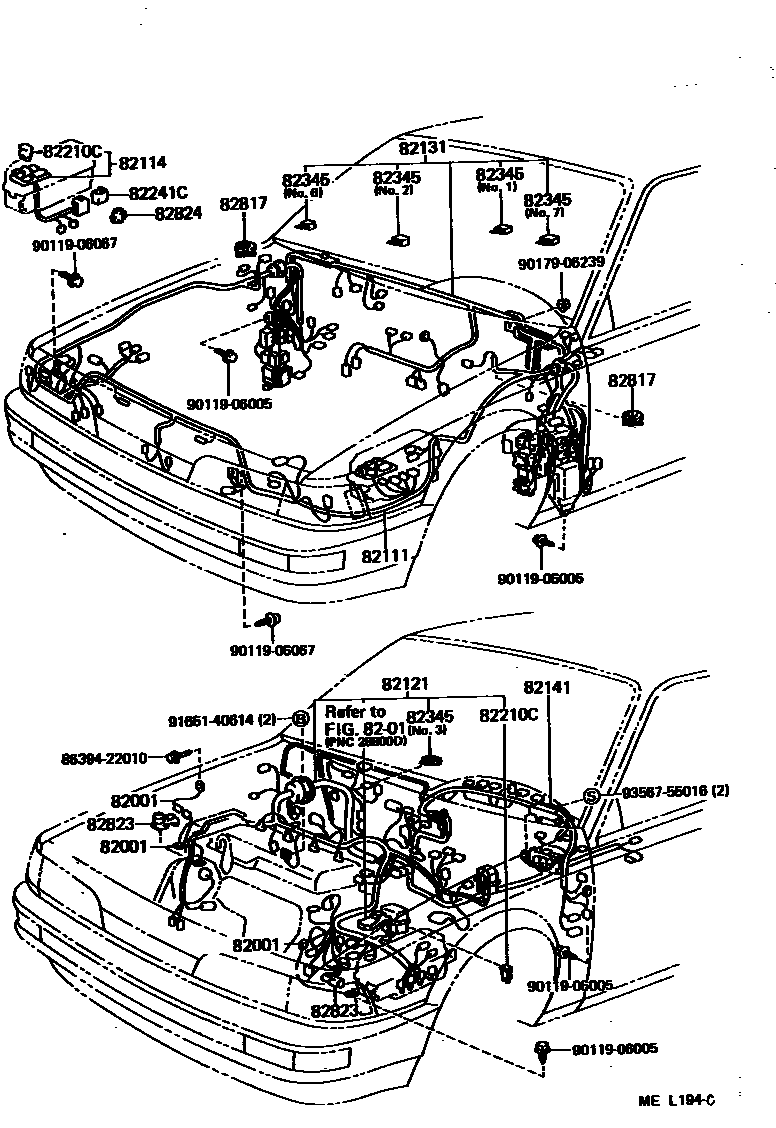

Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 6 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07136 · 90980-07270 · 90980-07280 · 90980-07287 |
| 82111 | Engine room main wiring harness | 82111-03011 · 82111-03013 · 82111-03021 · 82111-03023 · 82111-03032 |
| 82114 | Engine room wiring harness No. 4 | 82114-03010 · 82114-03011 · 82114-03021 · 82114-03030 |
| 82121 | Engine wiring harness | 82121-03010 · 82121-03011 · 82121-03020 · 82121-03021 · 82121-03030 · 82121-03031 · 82121-3H050 · 82121-3H051 · 82121-3H052 · 82121-3H053 · 82121-3H061 · 82121-3H062 · 82121-3H063 · 82121-3H064 · 82121-3H071 · 82121-3H072 · 82121-3H073 · 82121-3H074 · 82121-3H162 · 82121-3H163 · 82121-3H164 · 82121-3H172 · 82121-3H173 · 82121-3H174 |
| 82131 | Front panel wiring harness | 82131-03011 · 82131-03012 · 82131-03013 · 82131-03014 · 82131-03021 · 82131-03022 · 82131-03023 · 82131-03031 · 82131-03032 · 82131-03033 · 82131-03041 · 82131-03042 · 82131-03043 · 82131-03051 · 82131-03052 · 82131-03060 · 82131-03061 · 82131-03070 · 82131-03071 · 82131-03072 · 82131-03080 · 82131-03090 |
| 82141 | Dashboard wiring harness | 82141-03011 · 82141-03013 · 82141-03014 · 82141-03015 · 82141-03030 · 82141-03031 · 82141-03032 · 82141-03033 · 82141-03040 · 82141-03042 · 82141-03043 · 82141-03044 |
| 82151 | Right front door wiring harness | 82151-03011 · 82151-03012 · 82151-03021 · 82151-03022 · 82151-03031 · 82151-03032 · 82151-03040 · 82151-03041 |
| 82152 | Left front door wiring harness | 82152-03011 · 82152-03012 · 82152-03021 · 82152-03022 · 82152-03031 · 82152-03032 · 82152-03040 · 82152-03041 |
| 82153 | Rear door wiring harness No. 1 | 82153-03011 |
| 82154 | Rear door wiring harness No. 2 | 82153-03011 |
| 82161 | floor wiring harness | 82161-03011 · 82161-03012 · 82161-03013 · 82161-03014 · 82161-03021 · 82161-03022 · 82161-03023 · 82161-03024 · 82161-03030 · 82161-03031 · 82161-03032 · 82161-03033 |
| 82162 | Floor wiring harness No. 2 | 82162-03011 · 82162-03012 · 82162-03021 · 82162-03022 · 82162-03031 |
| 82163 | Floor wiring harness No. 3 | 82163-03011 · 82163-03012 · 82163-03013 |
| 82167 | Seat No. 1 wiring harness | 82167-32030 |
| 82171 | Roof No. 1 wiring harness | 82171-03011 · 82171-03012 · 82171-03021 · 82171-03022 · 82171-03031 · 82171-03032 · 82171-03040 · 82171-03041 · 82171-03050 · 82171-03051 |
| 82181 | Luggage No. 1 wiring harness | 82181-03011 · 82181-03012 |
| 82182 | Luggage No. 2 wiring harness | 82182-03011 · 82182-03012 |
| 82187 | Rear window wiring harness No. 2 | 82187-03010 |
| 82210C | fuse | 90982-08188 · 90982-08189 · 90982-08203 · 90982-08253 |
| 82219A | sensor harness | 82219-32060 |
| 82241C | Relay harness | 82241-32020 |
| 82345 | diode | 82345-12050 · 82345-20040 · 82345-20050 · 82345-32010 · 82345-32020 |
| 82521A | Vanity light wiring harness | 82521-32010 |
| 82817 | No. 1 wire harness protection device | 82817-32420 |
| 82823 | No. 1 terminal cover | 82823-20030 · 82823-22050 · 82823-22060 |
| 82824 | Harness connector | 82824-32030 |

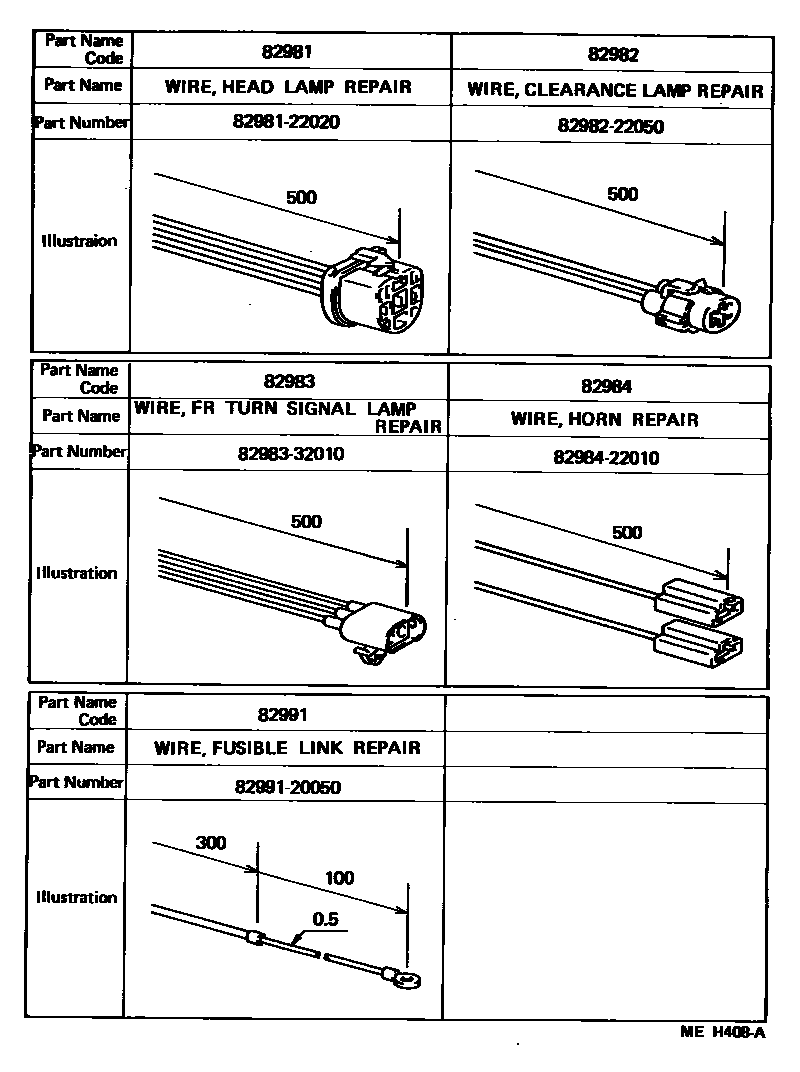

| 82981 | Headlight repair line | 82981-22020 |
| 82982 | Width light repair line | 82982-22050 |
| 82983 | Front turn signal lamp repair line | 82983-32010 |
| 82984 | Speaker repair line | 82984-22010 |
| 82991 | Fuse repair line | 82991-20050 |
