Toyota CAMRY 后牌照灯 — Figure 8113

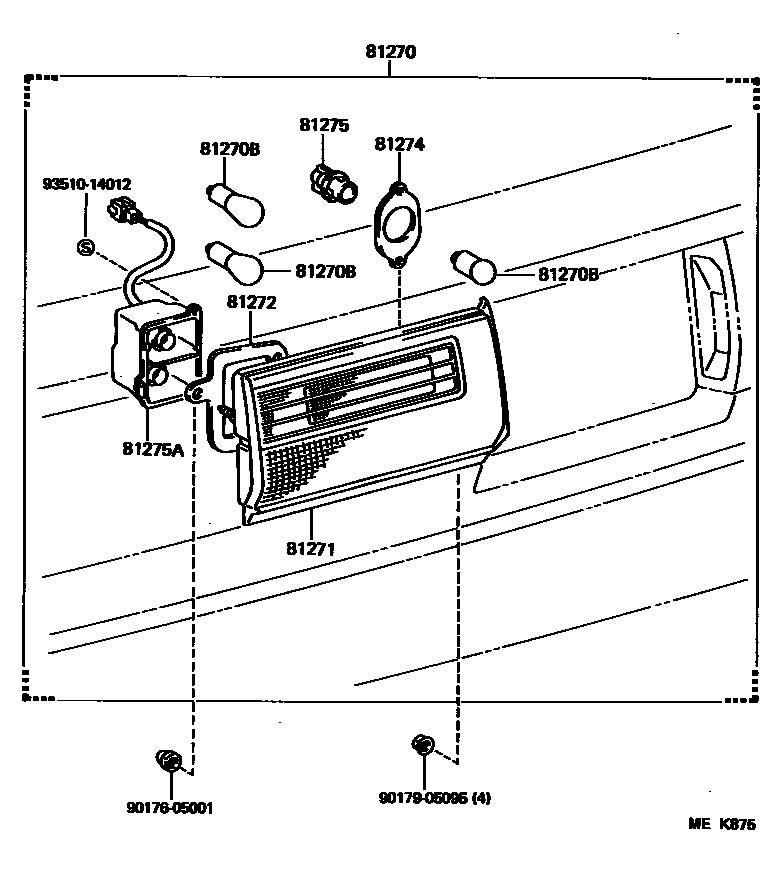

Toyota CAMRY EPC diagram 8113, 后牌照灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-03011 · 81270-03021 · 81690-03011 · 81690-03021 |
| 81270B | Bulb (for license plate light) | 90081-81002 · 90081-81004 · 90081-81005 |
| 81271 | license plate lamp shade | 81271-03010 · 81271-03020 · 81691-03010 · 81691-03020 |
| 81272 | License plate lamp shade gasket | 81272-03010 |
| 81274 | License plate light body gasket | 81274-03010 |
| 81275 | License plate lamp holder and wiring harness | 81275-03020 |
| 81275A | License plate light wire | 81275-03010 · 81275-03030 · 81695-03010 · 81695-03020 |
