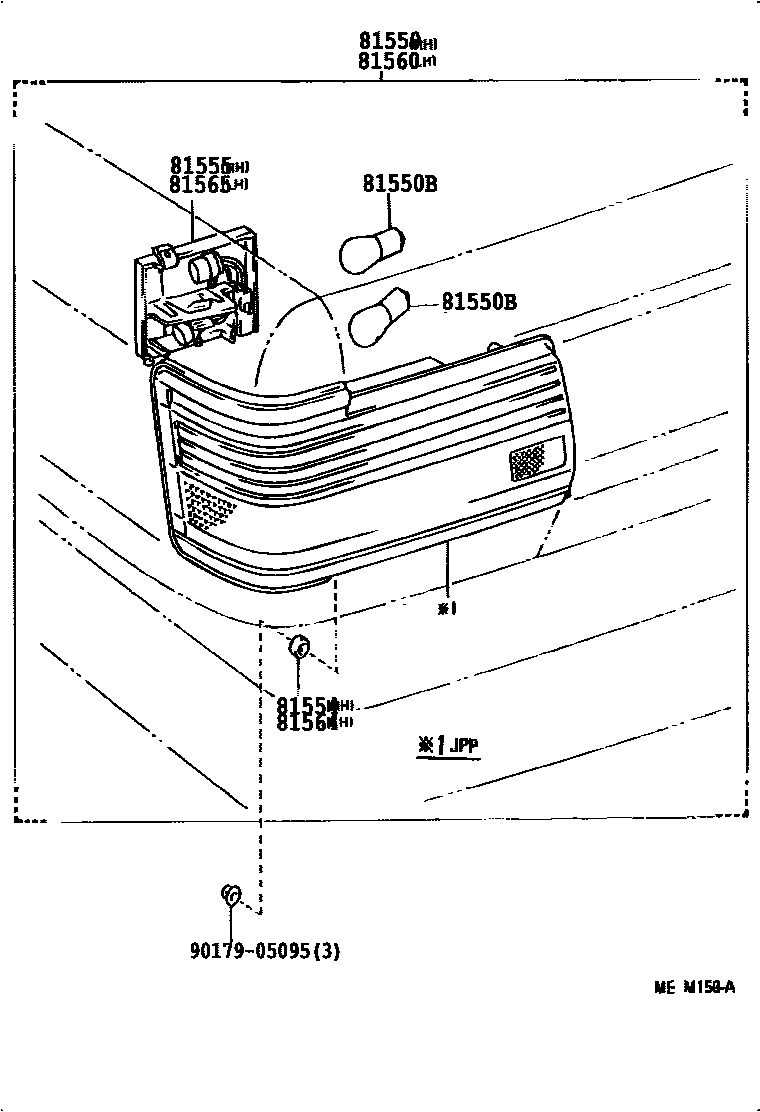

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-03011 · 81550-03021 |
| 81550B | Bulb (for rear combination lights) | 90081-81003 · 90081-81004 |
| 81554 | Right rear combination lamp body gasket | 81558-03010 · 81558-03020 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-03010 · 81555-03020 |
| 81560 | Left rear combination light assembly | 81560-03011 · 81560-03021 |
| 81564 | Left rear combination lamp body gasket | 81558-03010 · 81558-03020 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-03010 · 81565-03020 |
