Toyota CAMRY 前转向灯 — Figure 8103

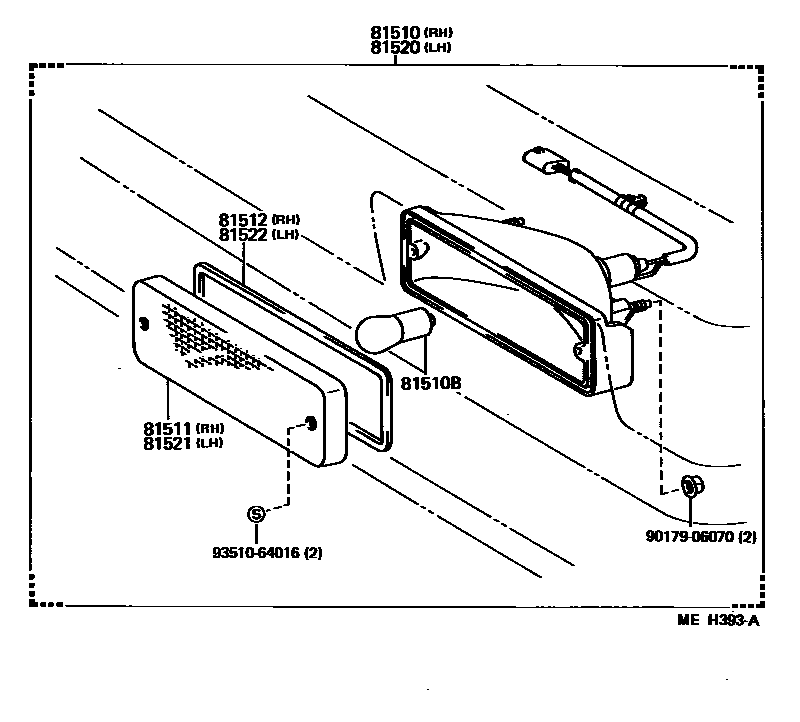

Toyota CAMRY EPC diagram 8103, 前转向灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-09020 · 81510-09021 |
| 81510B | Bulb (for front turn signal lamp) | 90080-81010 · 99132-11270 |
| 81511 | Right front turn signal lamp cover | 81511-03010 · 81511-03011 |
| 81512 | Right front turn signal lamp housing gasket | 81512-03010 |
| 81520 | Left front turn signal lamp assembly | 81520-09020 · 81520-09021 |
| 81521 | Left front turn signal lamp cover | 81521-03010 · 81521-03011 |
| 81522 | Left front turn signal lamp housing gasket | 81512-03010 |
