Toyota CAMRY Headlamp — Figure 8101

Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 11 PNC and OE references.

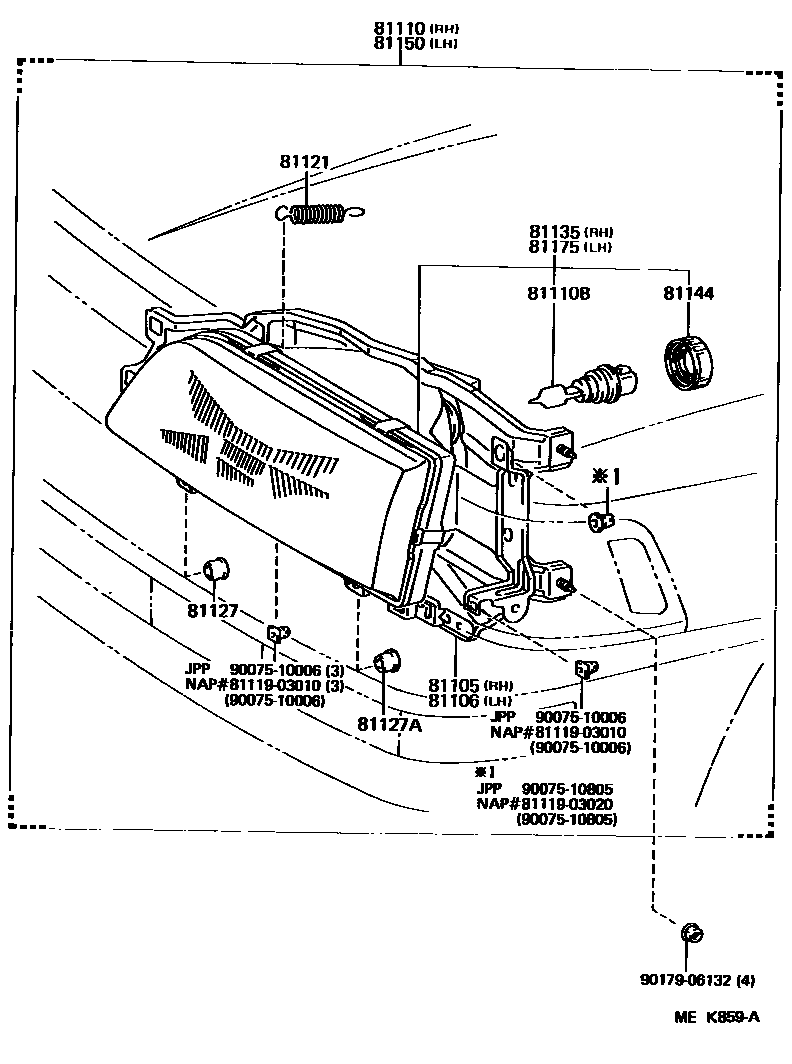

Toyota CAMRY Headlamp EPC diagram — MEK859A
Headlamp — MEK859A (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
81105Right headlight housing sub-assembly81101-03010
81106Left headlight housing sub-assembly81102-03010
81110Right headlight assembly81110-03010
81110BBulb (for headlight No. 1)90981-13032
81121headlight spring81121-03010
81127No. 1 headlight support81127-03010
81127ANo. 2 headlight support81127-03020
81135Right headlight assembly81130-03010
81144No. 1 headlight cover81139-03010
81150Left headlight assembly81150-03010
81175Left headlight assembly81170-03010
