Toyota CAMRY 后防护条 — Figure 7504

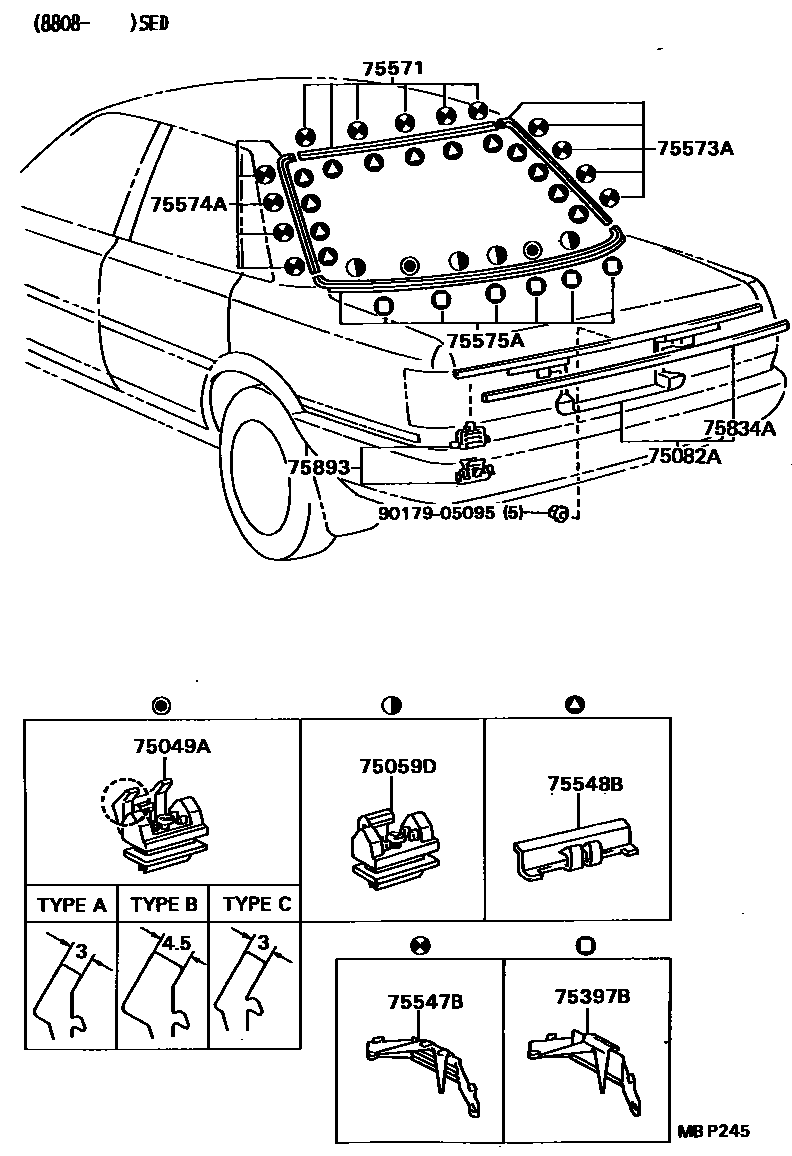

Toyota CAMRY EPC diagram 7504, 后防护条, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75049A | No. 2 clip sub-assembly of outer protective strip | 75049-03010 · 75049-32010 |
| 75059D | No. 3 clip sub-assembly of outer protective strip | 75059-03010 · 75059-32010 |
| 75082A | Trunk door decorative panel sub-assembly | 75082-03010 · 75082-32200 |
| 75397B | No. 3 rear window protective strip clip | 75397-03010 |
| 75547B | No. 3 windshield outer protective strip clip | 75547-03010 |
| 75548B | Rear window protective strip fasteners | 75548-03010 · 75548-20060 |
| 75571 | Protective strips on the outside of the rear window | 75571-03010 |
| 75573A | Right outer protective strip of back window | 75501-03010 |
| 75574A | Rear window left outer protective strip | 75502-03010 |
| 75575A | Lower protective strip on the outside of the rear window | 75507-03010 |
| 75834A | Rear lower decorative panel protective strip | 75834-03010 · 75834-03020 · 75834-32050 |
| 75893 | Trunk door protective strip fixings | 75893-32010 · 75893-32020 |
