Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 20 PNC and OE references.

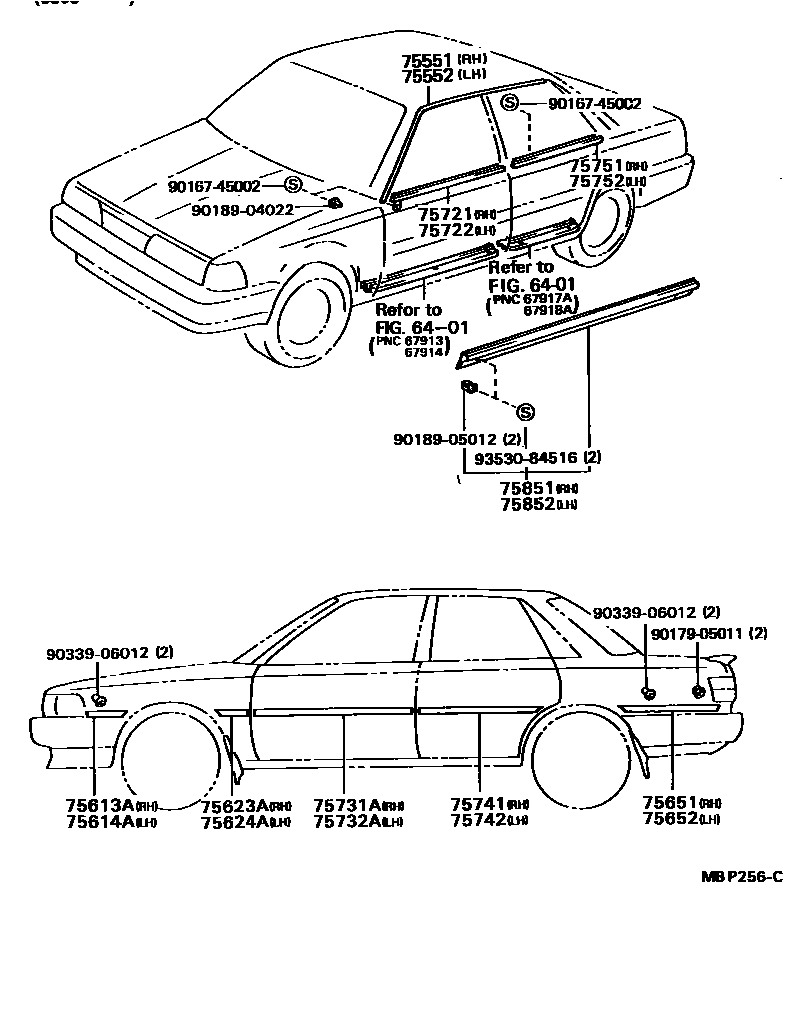

Toyota CAMRY 侧防护条 EPC diagram — MBP256C
侧防护条 — MBP256C (198807 – 199003)

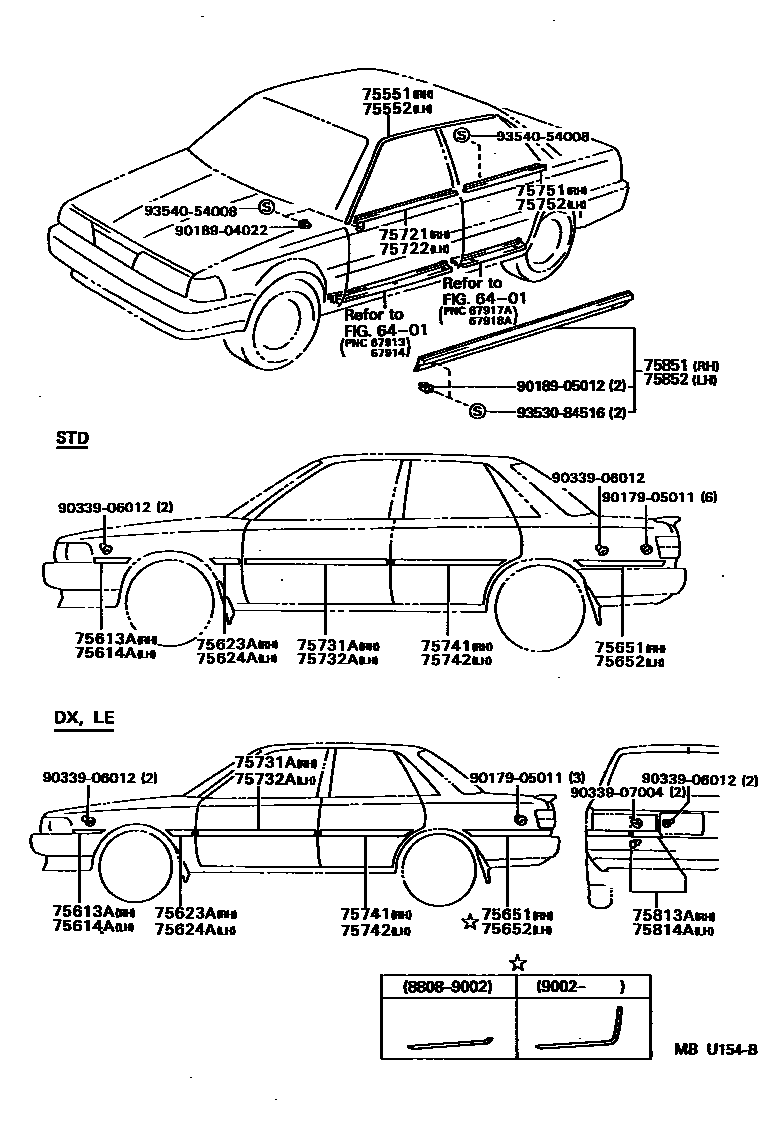

Toyota CAMRY 侧防护条 EPC diagram — MBU154B
侧防护条 — MBU154B (199003 – 999999)

PNC and OE references

PNCPart nameOE numbers
75551Drainage groove side decorative strip on the right side of the roof75551-03010
75552Drainage groove side decorative strip on the left side of the roof75552-03010
75613ARight front fender front protective strip75613-32010 · 75613-32020 · 75613-32021
75614ALeft front fender front protective strip75614-32010 · 75614-32020 · 75614-32021
75623ARight front fender outer rear protective strip75623-03010 · 75623-32080
75624ALeft front fender outer rear protective strip75624-03010 · 75624-32080
75651Right side outer protective strip75651-32010 · 75651-32020 · 75651-32070
75652Left side outer protective strip75652-32010 · 75652-32020 · 75652-32070
75721Right front door waistline protection strip75710-03010
75722Left front door waistline protection strip75720-03010
75731ARight front door outer protective strip75731-03010 · 75731-32270
75732ALeft front door outer protective strip75732-03010 · 75732-32270
75741Right rear door outer protective strip75741-03010 · 75741-32350
75742Left rear door outer protective strip75742-03010 · 75742-32350
75751Right rear door waistline protection strip75730-03010
75752Left rear door waistline protection strip75740-03010
75813ALuggage door right side protective strip75813-32030
75814ALuggage door left protective strip75814-32010
75851Right side door sill panel protective strip75850-09010 · 75850-09020 · 75850-09021
75852Left side door sill panel protective strip75850-09010 · 75850-09020 · 75850-09021
