Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

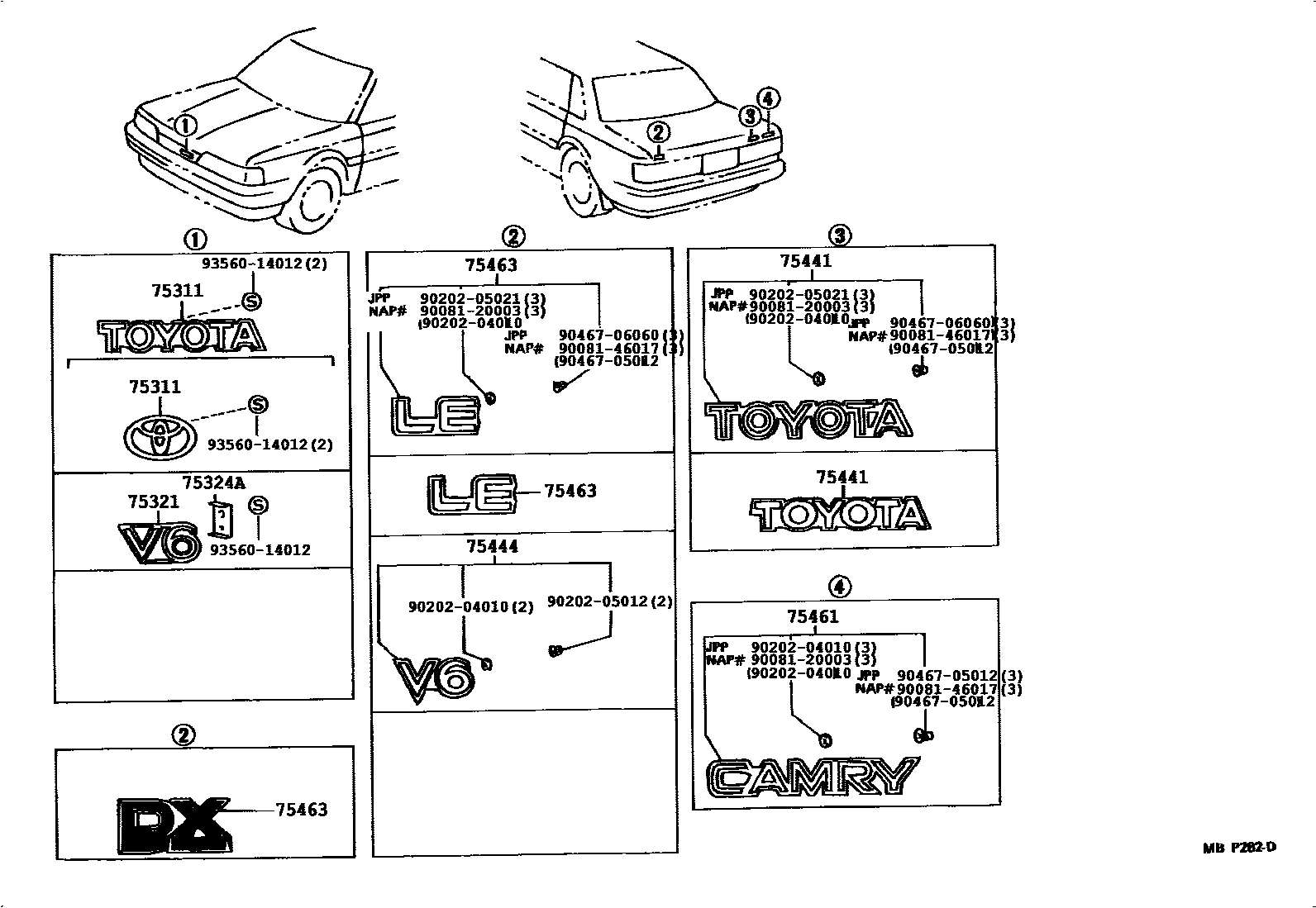

Toyota CAMRY 丰田徽标和铭牌(车外和车内) EPC diagram — 752445
丰田徽标和铭牌(车外和车内) — 752445 (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-03010 · 75311-32080 · 75311-32160
75321Radiator grille or front plate75321-03010 · 75321-32050
75324ARadiator grille nameplate fasteners75324-32100
75441Rear No. 1 nameplate (factory mark)75441-03010 · 75441-32020
75444Trunk door No. 4 nameplate75444-03010 · 75444-32100
75461Rear No. 2 nameplate (model mark)75442-03010 · 75442-32050
75463Rear No. 4 nameplate (grade mark)75443-03010 · 75443-03020 · 75443-03030 · 75443-32290 · 75443-32370 · 75443-32470
