Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102

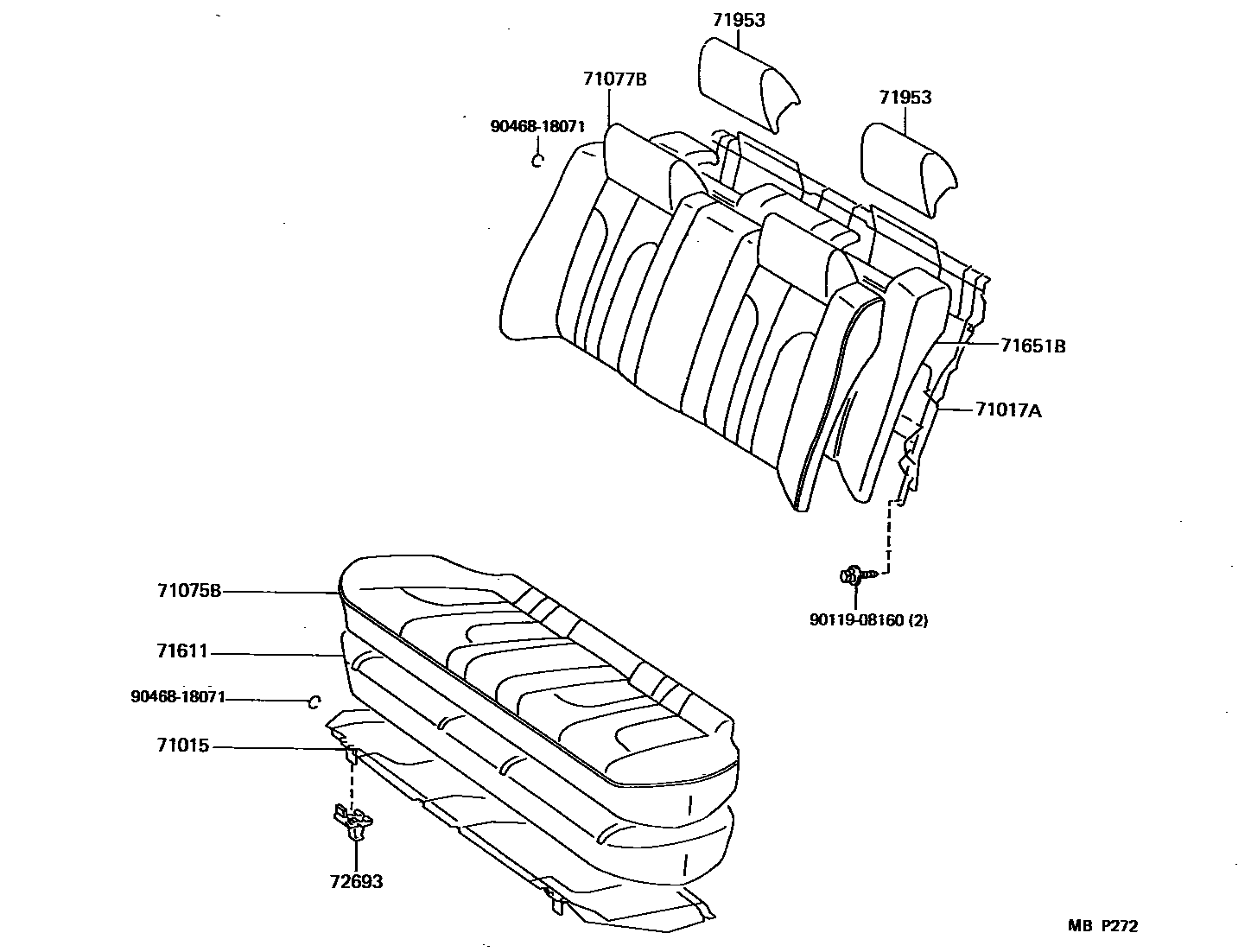

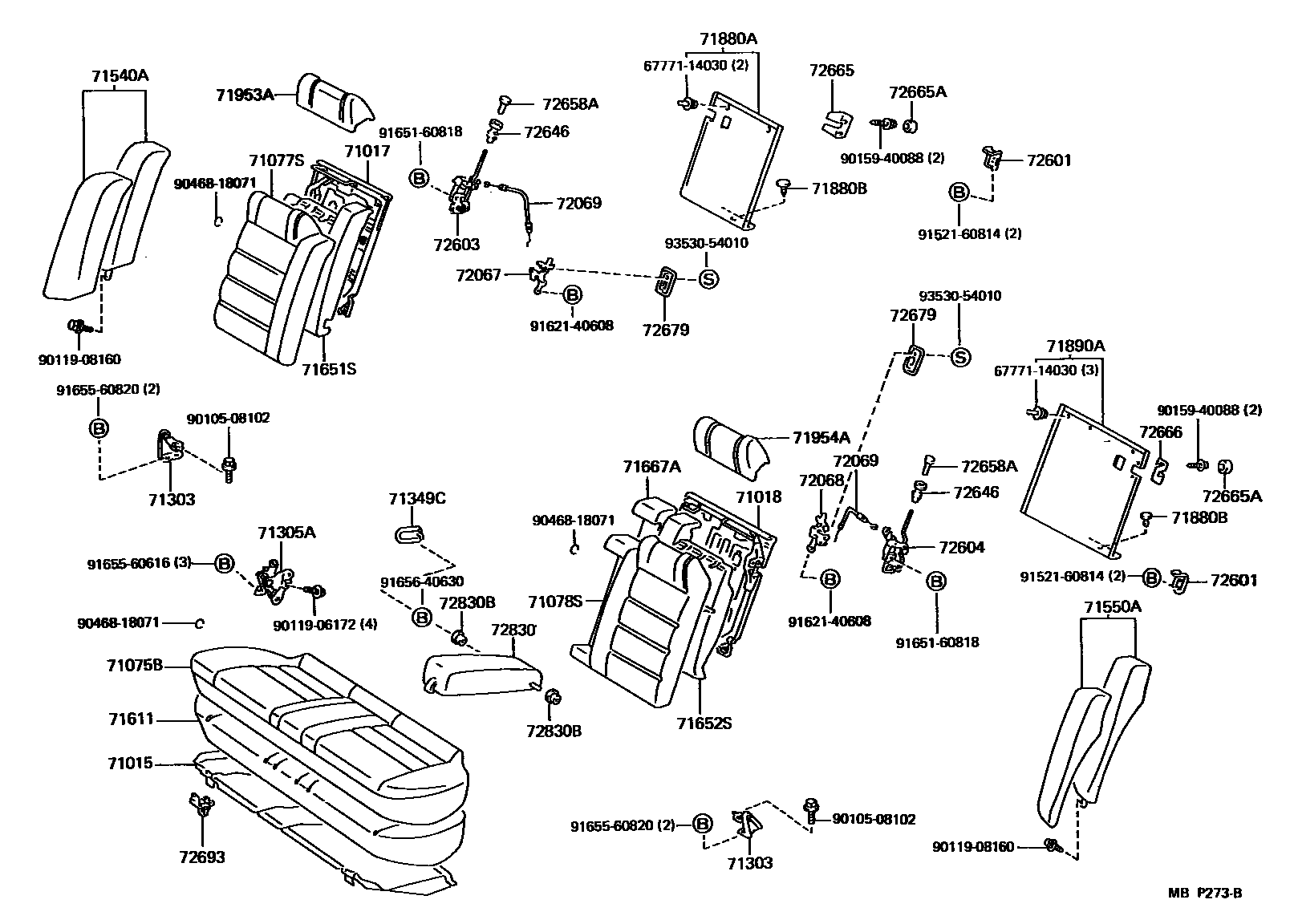

Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-03010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-03020 |
| 71017A | Rear seat back frame sub-assembly | 71017-03010 |
| 71018 | Rear left seat back frame sub-assembly | 71018-03010 |
| 71303 | Rear seat back hinge sub-assembly | 71303-32030 · 71304-32030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-32040 |
| 71611 | Rear seat cushion cushion | 71611-03010 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-03010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-03020 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-03010 |
| 71667A | Rear center A seat back cushion | 71667-03010 |
| 71953 | Rear seat headrest cushion | 71953-03010 |
| 71953A | Rear right seat headrest cushion | 71953-03020 |
| 71954A | Rear left seat headrest cushion | 71954-03010 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-20010 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-20010 |
| 72069 | Rear seat back lock control cable sub-assembly | 72069-32010 |
| 72601 | Rear seat lock sub-assembly | 72601-32010 |
| 72603 | Rear right seat back lock sub-assembly | 72603-32010 |
| 72604 | Rear left seat back lock sub-assembly | 72604-32010 |
| 72693 | Rear seat cushion hook | 72693-20010 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06002 · 90386-06028 · 90386-06036 |
