Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

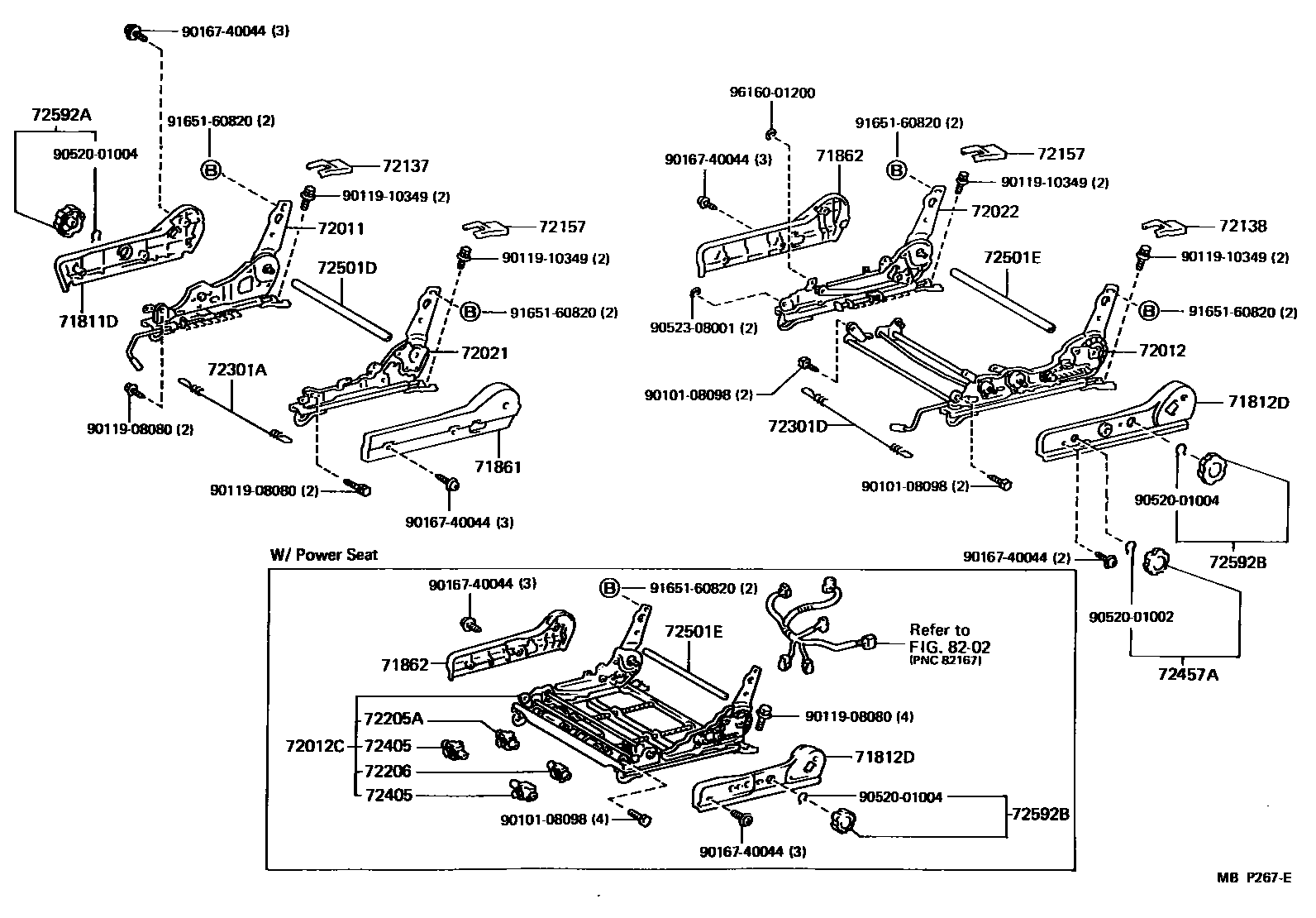

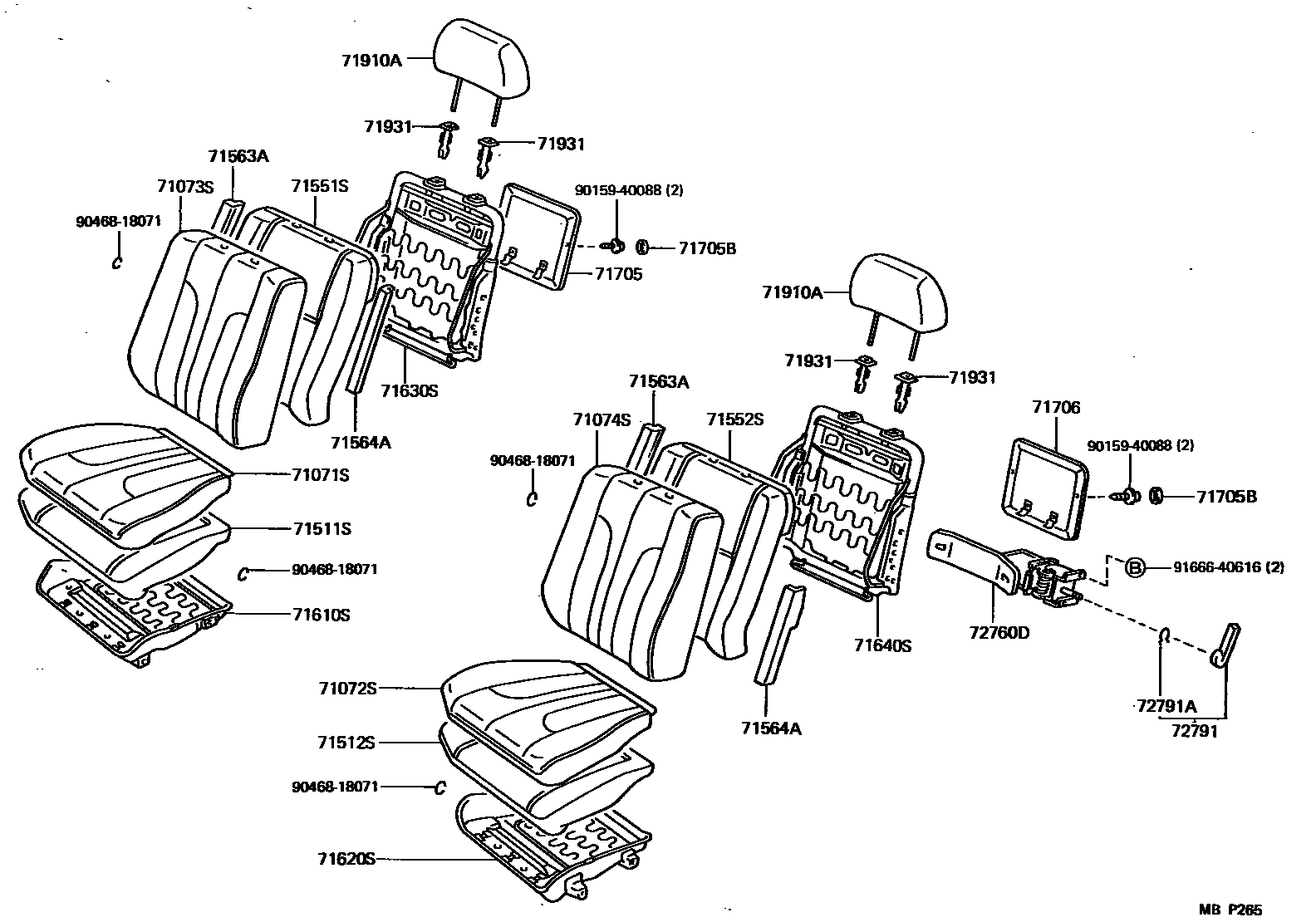

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-03010 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-03010 |
| 71551S | Front right seat back cushion (for split seats) | 71551-03010 |
| 71552S | Front left seat back cushion (for split seats) | 71551-03010 |
| 71563A | Front right seat backrest side cushion | 71563-32030 |
| 71564A | Front left seat backrest side cushion | 71564-32030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-03010 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-03010 · 71610-03020 · 71610-03030 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-03020 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-03010 · 71630-03020 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-32060 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-32070 · 72012-32080 |
| 72012C | Front left seat adjuster sub-assembly | 72012-32060 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-32060 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-32060 · 72022-32070 |
| 72205A | No. 1 electric seat shell sub-assembly | 72205-30040 |
| 72206 | No. 2 electric seat shell sub-assembly | 72206-30030 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-32020 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-32020 |
| 72405 | Front vertical seat shell sub-assembly | 72405-24020 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-32020 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-32020 |
| 72760D | Left lumbar support adjuster assembly | 72760-32020 |
| 72791A | Shaft snap ring (for lumbar support rod) | 90520-01002 |
