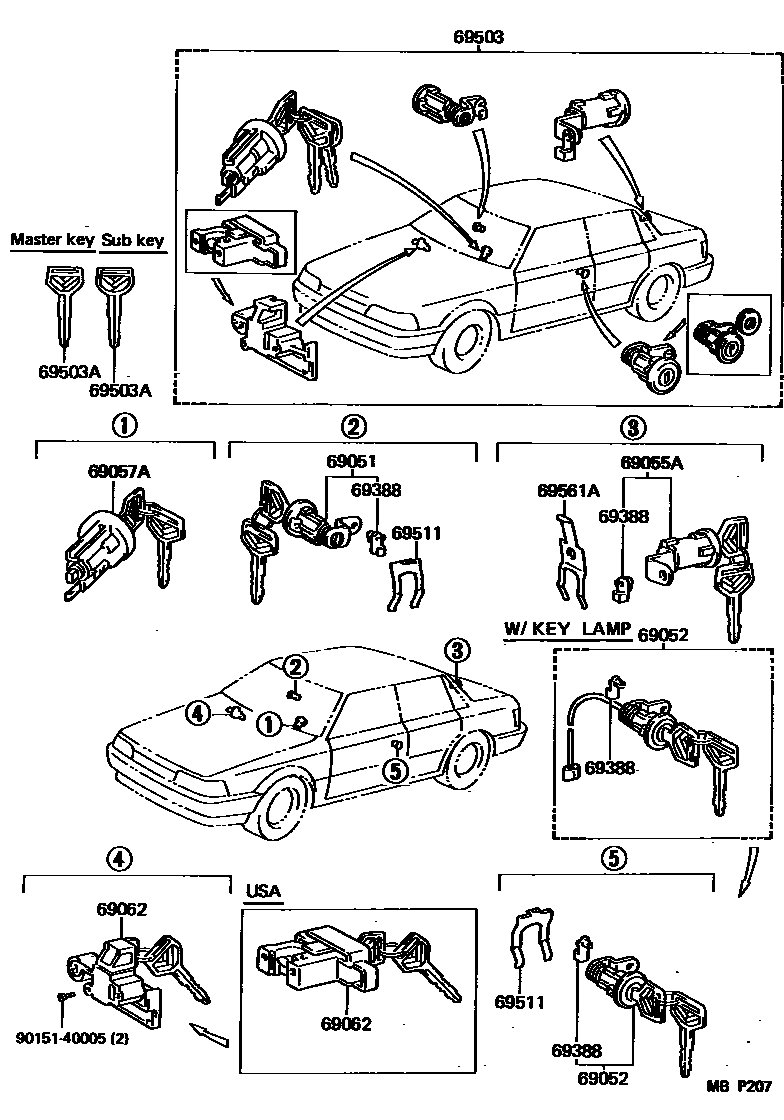

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-32070 |
| 69052 | Left door lock cylinder and key assembly | 69052-32070 · 69052-32080 |
| 69055A | Luggage lock cylinder and key assembly | 69055-32150 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-32080 |
| 69388 | Lever clip (for door lock) | 69759-24080 · 69759-32070 · 69759-32080 |
| 69503A | external tooth key | 90999-00099 · 90999-00100 · 90999-00118 |
| 69511 | Front door lock cylinder fixing parts | 69511-32020 |
| 69561A | Luggage lock core fixing parts | 69561-32020 |
