Toyota CAMRY 后门板和后门玻璃 — Figure 6705
Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

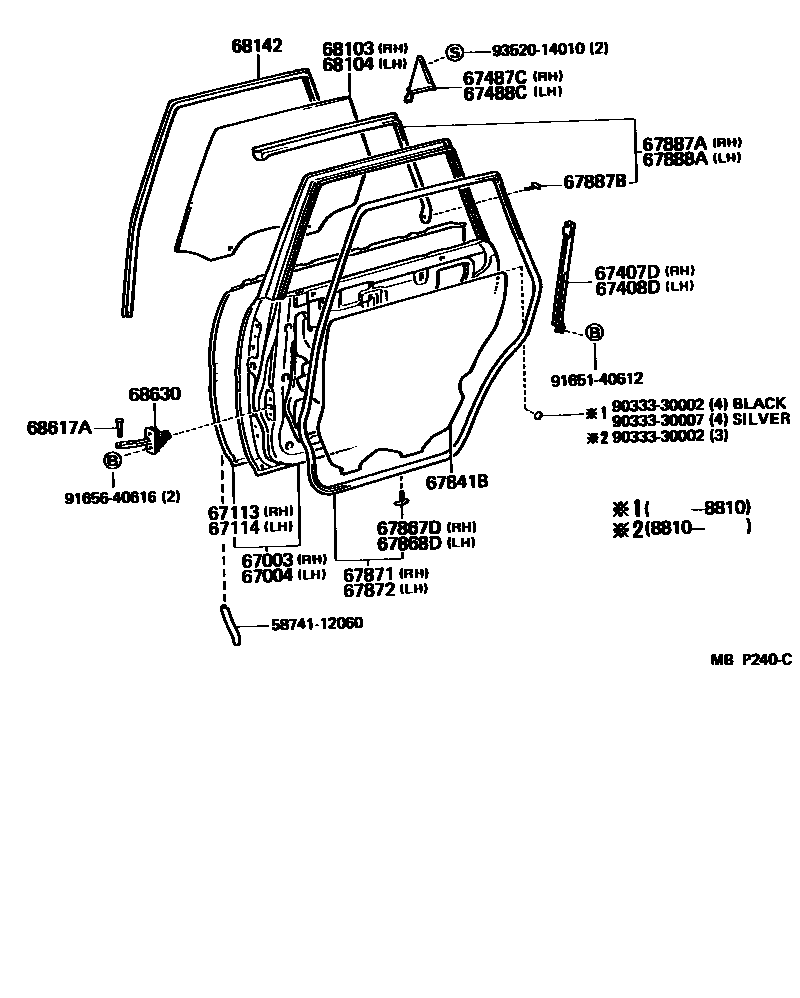

| 67003 | Right rear door panel sub-assembly | 67003-03010 |
| 67004 | Left rear door panel sub-assembly | 67004-03010 |
| 67113 | Right rear door outer panel | 67113-03010 |
| 67114 | Left rear door outer panel | 67114-03010 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-03010 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-03010 |
| 67487C | Right rear door rear rail seal | 67487-32030 |
| 67488C | Left rear door rear rail seal | 67488-32030 |

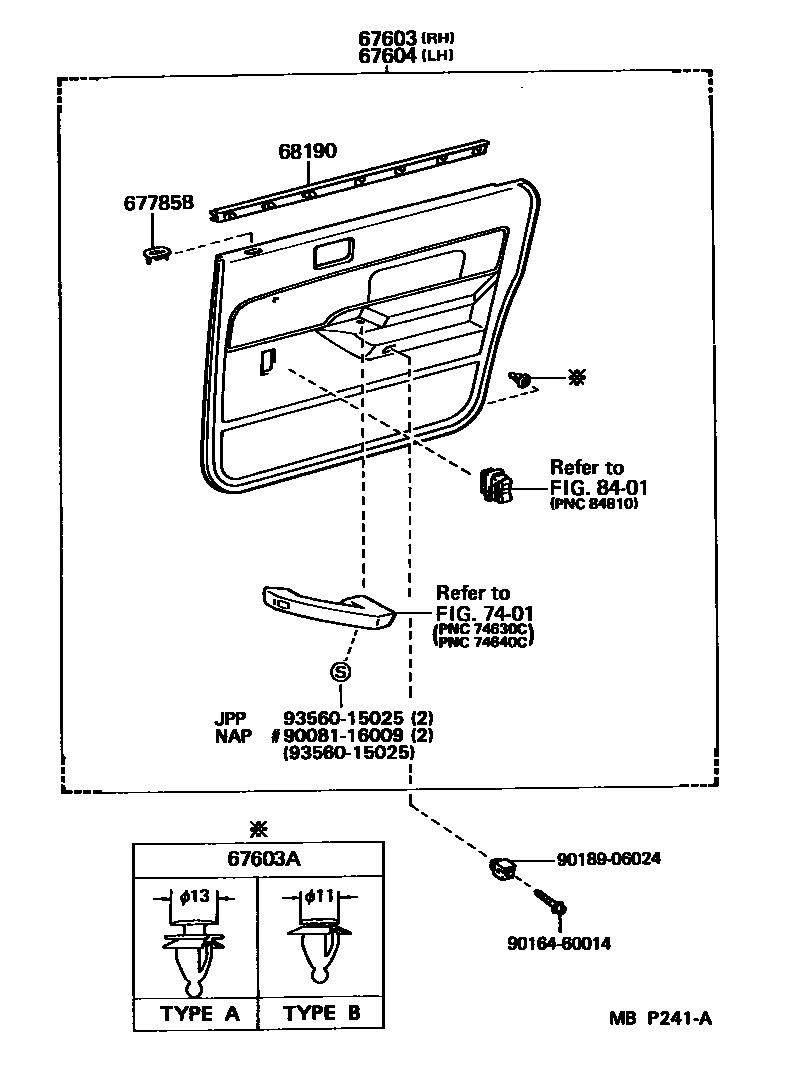

| 67603A | Fixings (for rear door trim) | 67771-03020 · 67771-03030 · 67771-03040 · 67771-03050 |
| 67841B | Rear door access hole cover | 67841-32050 |
| 67867D | Right rear door seal strip fixing | 67868-03040 |
| 67868D | Left rear door seal strip fixing | 67868-03040 |
| 67871 | Right rear door sealing strip | 67871-03010 |
| 67872 | Left rear door sealing strip | 67872-03010 |
| 67887A | Right rear door seal No. 2 | 67887-03010 |
| 67887B | Catch (for rear door seal strip) | 67869-02010 |
| 67888A | Left rear door seal No. 2 | 67888-03010 |
| 68103 | Right rear door glass sub-assembly | 68113-03010 · 68113-03020 |
| 68104 | Left rear door glass sub-assembly | 68114-03010 · 68114-03020 |
| 68142 | Rear door glass lift chute | 68142-32050 · 68152-32010 |
| 68190 | Rear door glass inner sealing strip assembly | 68190-03010 |
| 68617A | Rear door opening limiter pin | 68617-32010 |
| 68630 | Rear door opening limiter assembly | 68630-32031 |
