Toyota CAMRY 前门板和前门玻璃 — Figure 6701

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 5 images and 30 PNC and OE references.

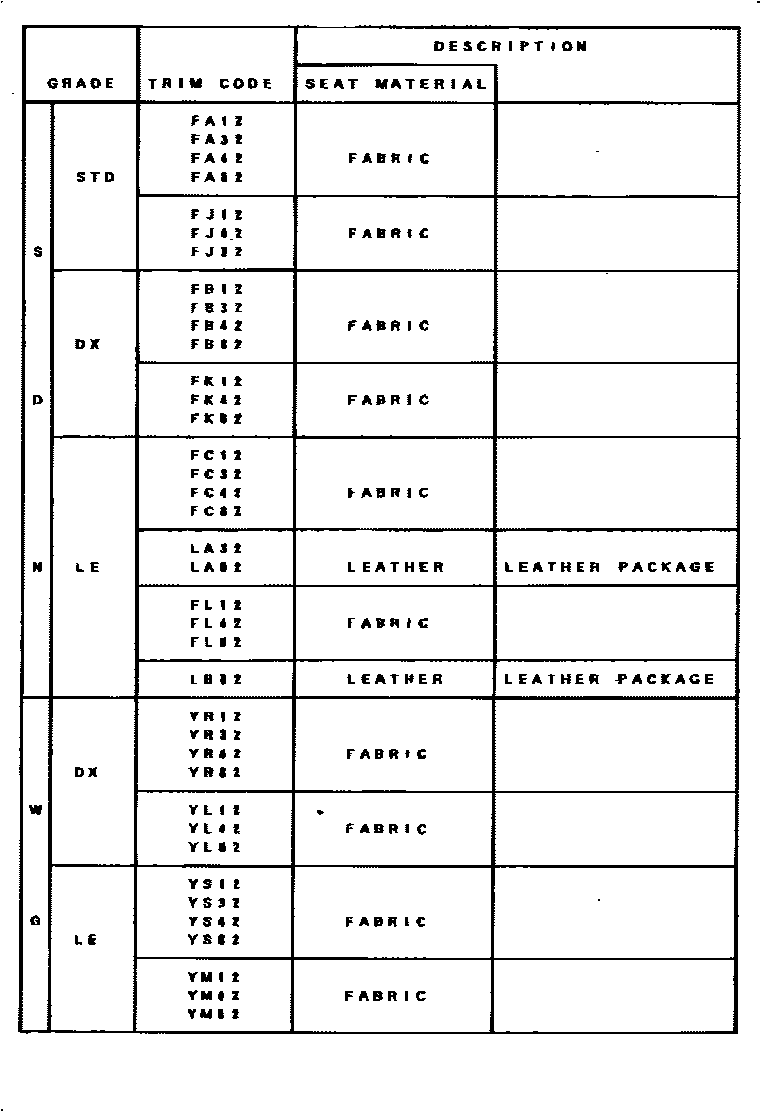

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676788
前门板和前门玻璃 — 676788 (198807 – 198909)

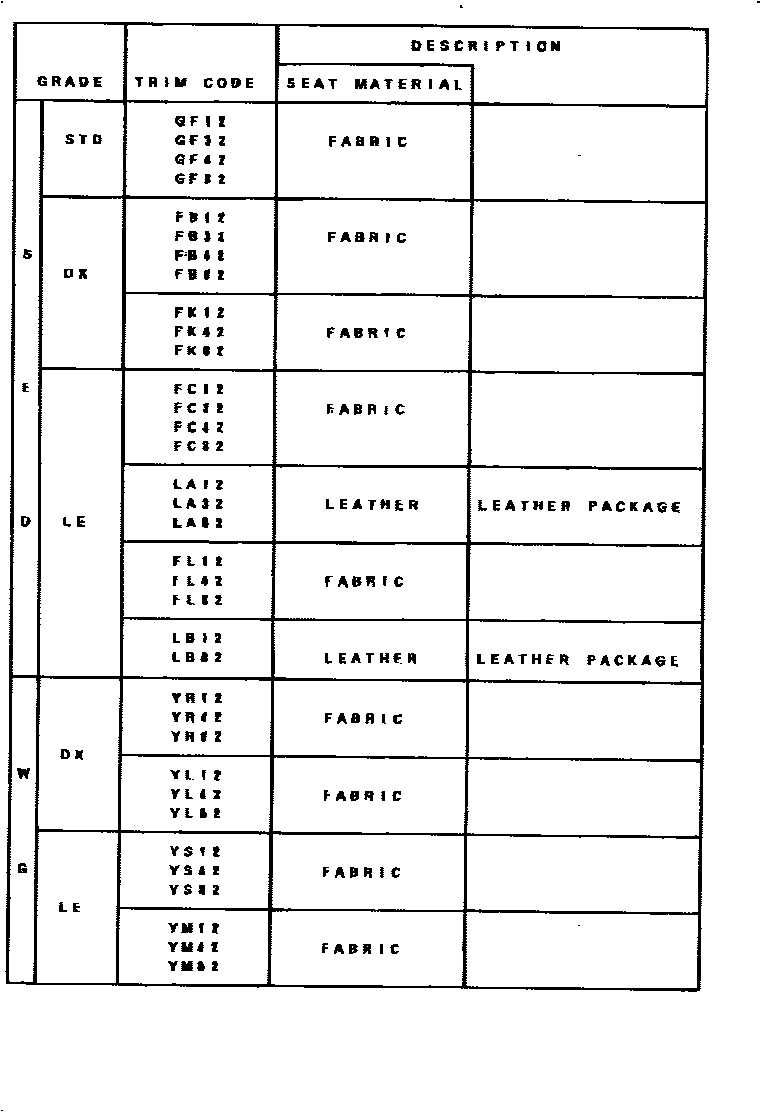

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676789
前门板和前门玻璃 — 676789 (198909 – 199009)

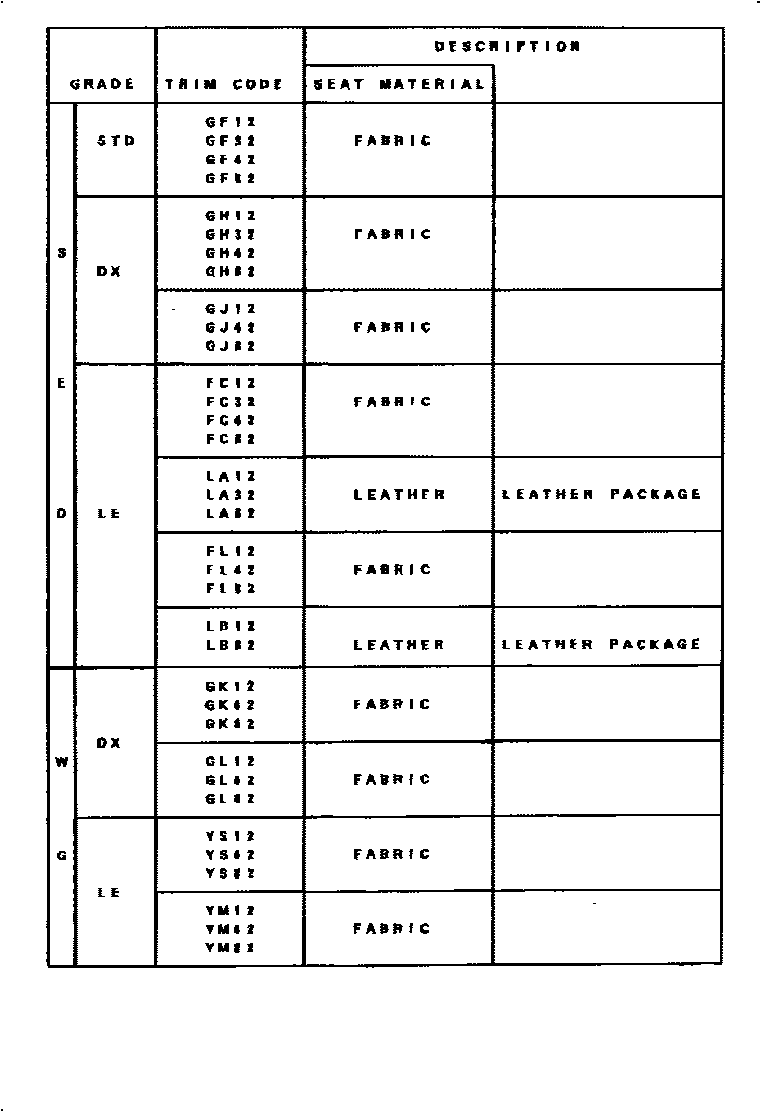

Toyota CAMRY 前门板和前门玻璃 EPC diagram — 676790
前门板和前门玻璃 — 676790 (199009 – 999999)

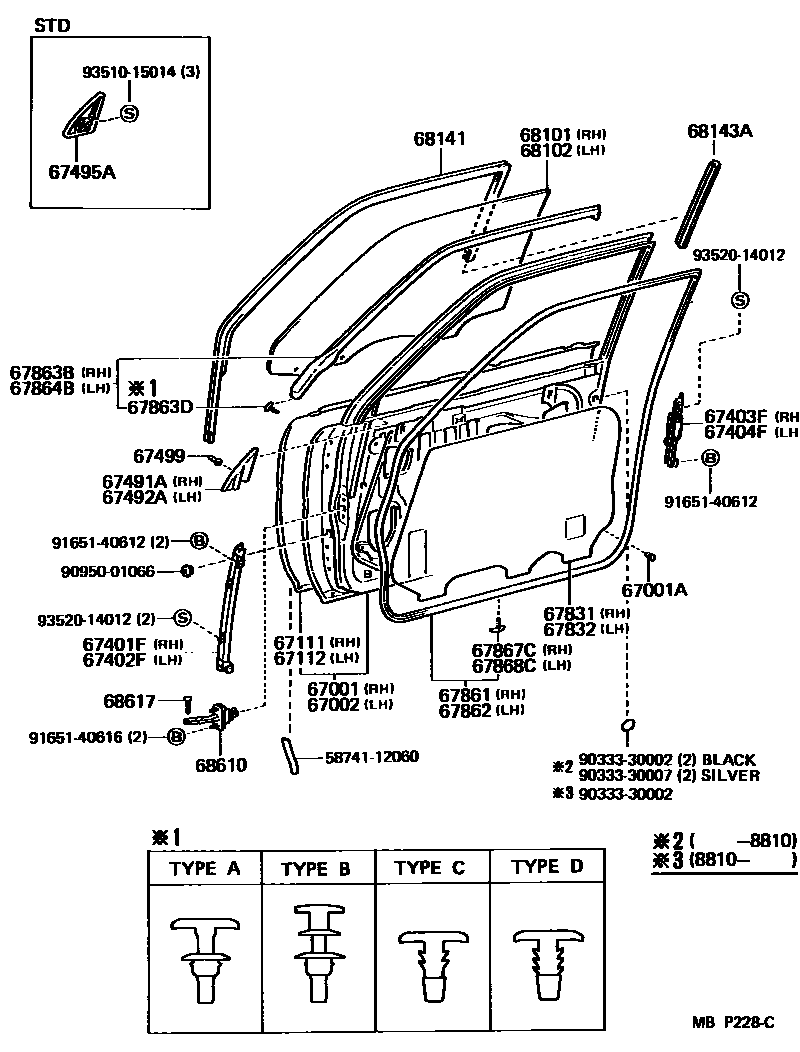

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MBP228C
前门板和前门玻璃 — MBP228C (198807 – 999999)

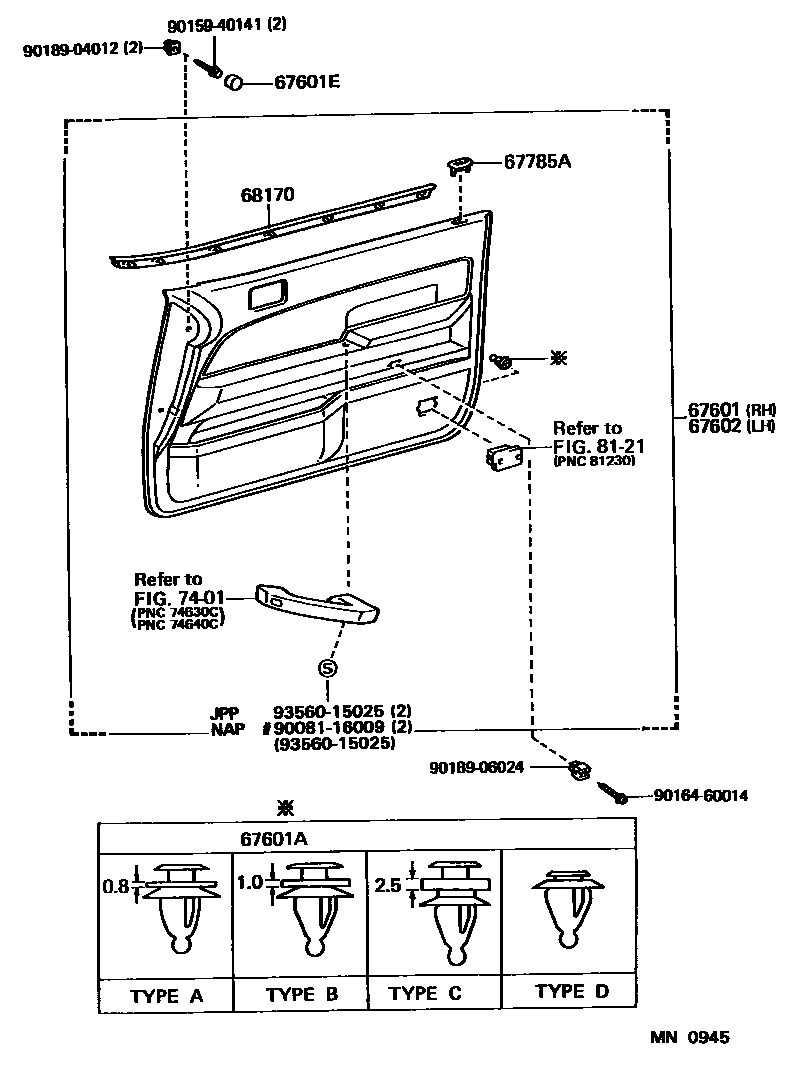

Toyota CAMRY 前门板和前门玻璃 EPC diagram — MN0945
前门板和前门玻璃 — MN0945 (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-03010
67001AFront door panel cushion90541-09006
67002Left front door panel sub-assembly67002-03010
67111Outer right front door panel67111-03010
67112Outer left front door panel67112-03010
67401FRight front door front lower door frame sub-assembly67401-03010
67402FLeft front door front lower door frame sub-assembly67402-03010
67403FRight front door rear lower door frame sub-assembly67403-03010
67404FLeft front door rear lower door frame sub-assembly67404-03010
67491ARight front door lower door frame bracket decorative strip67491-03010 · 67491-03020
67492ALeft front door lower door frame bracket decorative strip67492-03010 · 67492-03020
67495ARight front door front lower door frame upper cover67495-32040 · 67495-32060
67499Front door lower door frame bracket trim strip fixing67499-32010
67601AFixings (for front door trim)67771-03020 · 67771-03030 · 67771-03040 · 67771-03050
67831Right front door access hole cover67831-32050
67832Left front door access hole cover67832-32050
67861Right front door seal67861-03010
67862Left front door seal67862-03010
67863BRight front door seal No. 267863-03010
67863DRight side fixing piece (for front door seal No. 2)67868-03040 · 67869-02010
67864BLeft front door seal No. 267864-03010
67867CRight front door seal strip fixing67868-03040
67868CLeft front door seal strip fixing67868-03040
68101Right front door glass sub-assembly68111-03010 · 68111-03020
68102Left front door glass sub-assembly68112-03010 · 68112-03020
68141Front door glass lift chute68141-32070 · 68141-32071 · 68151-32010 · 68151-32011
68143AFront door glass lift channel No. 268143-32040
68170Front door glass inner sealing strip assembly68170-03010
68610Front door opening limiter assembly68610-32041
68617Front door opening limiter pin68617-32010
