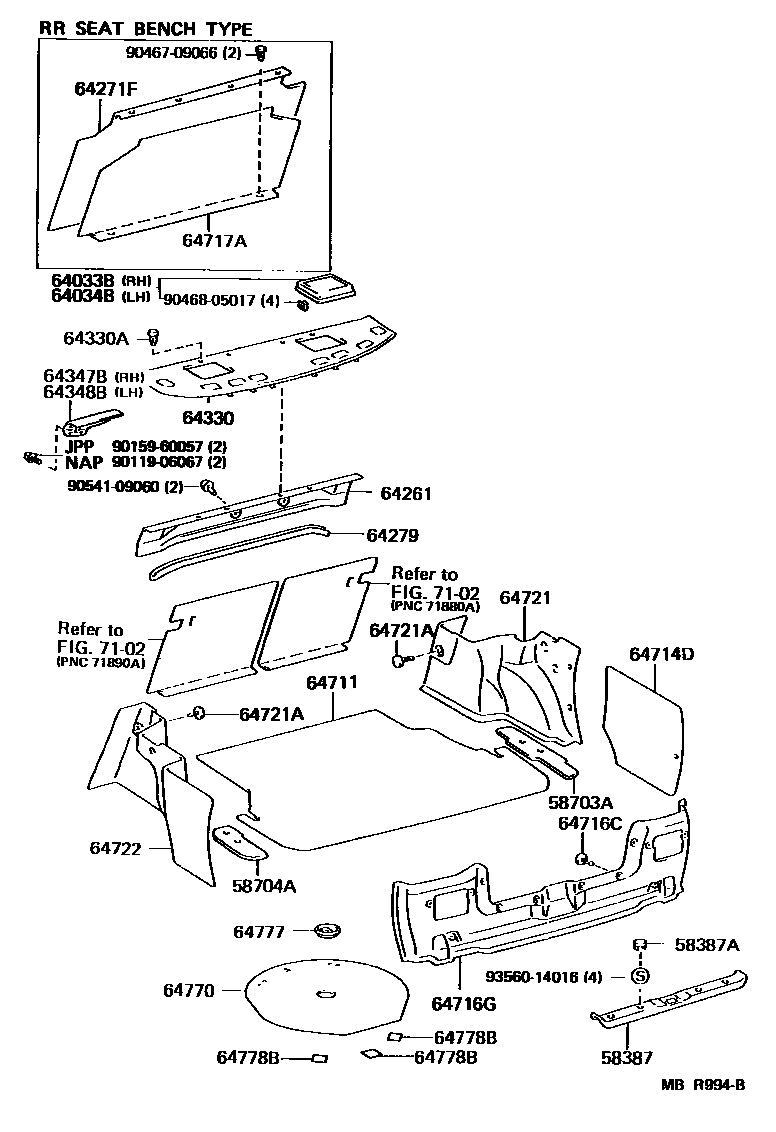

Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403
Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-03010 |
| 58704A | Luggage door left decorative cover sub-assembly | 58704-03010 |
| 64271F | Car partition decorative panel | 64271-03010 |
| 64347B | Glove box reinforcement right bracket | 64347-32020 |
| 64348B | Glove box reinforcement left bracket | 64348-32010 |
| 64770 | Spare tire cover assembly | 64771-03010 |
| 64777 | Spare tire cover clip | 64777-32030 |
| 64778B | Spare tire protection device | 64778-03010 |
