Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 11 PNC and OE references.

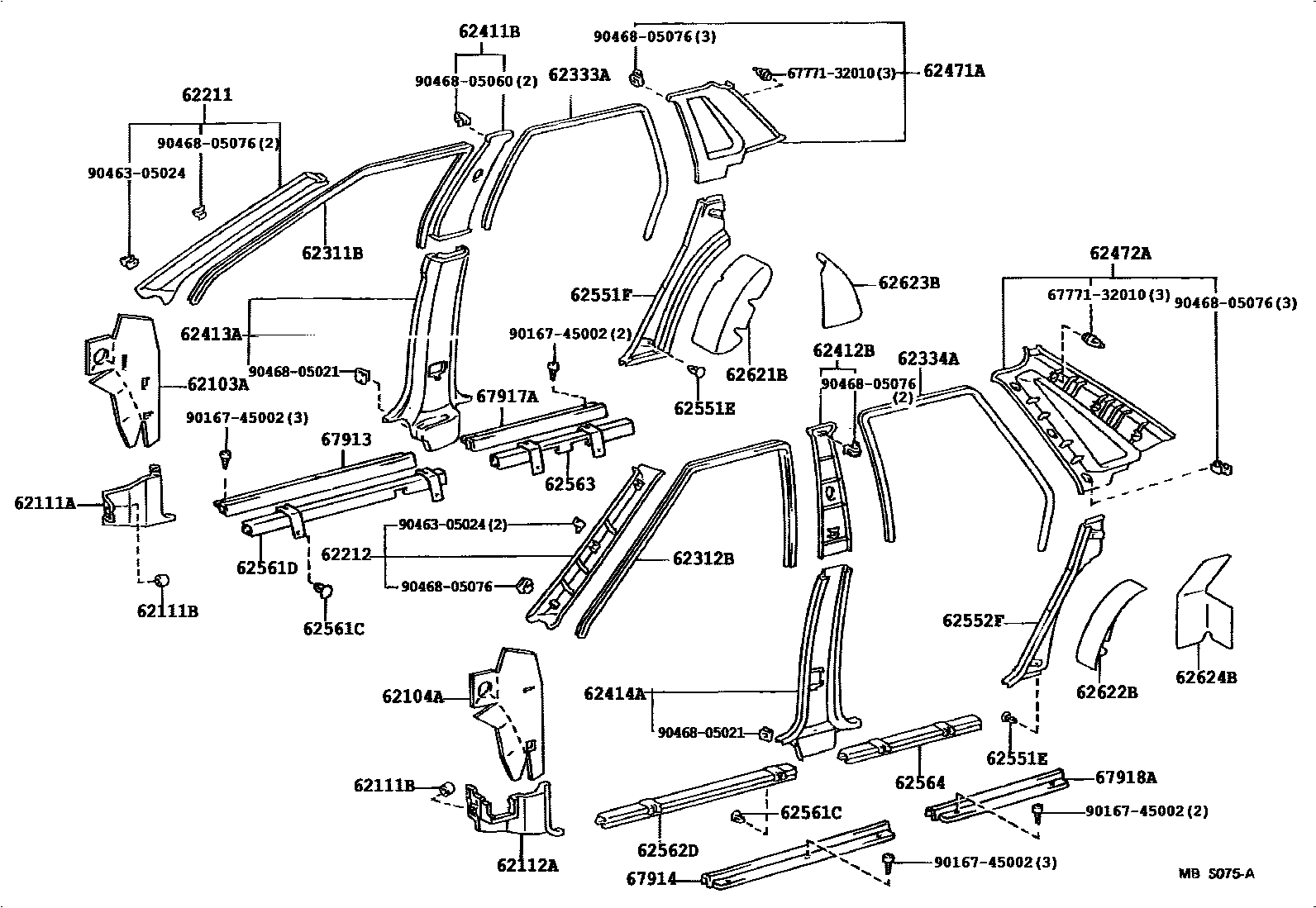

Toyota CAMRY 内饰板和车门防水胶条 EPC diagram — 642777
内饰板和车门防水胶条 — 642777 (198807 – 999999)

PNC and OE references

PNCPart nameOE numbers
62103ARight front wall side heat insulation pad sub-assembly62105-03010
62104ALeft front wall side heat insulation pad sub-assembly62106-03010
62111BClip (for cowl side trim panel)90467-06074
62561DRight front door inner sill protection strip62561-03010
62562DLeft front door inner sill protection strip62562-03010
62563Right rear door inner sill protection strip62563-03010
62564Left rear door inner sill protection strip62564-03010
62621BRight front side wheel housing lining block62621-03010
62622BLeft front side wheel housing lining block62622-03010
62623BRight rear side wheel housing lining block62623-03010
62624BLeft rear side wheel housing lining block62624-03010
