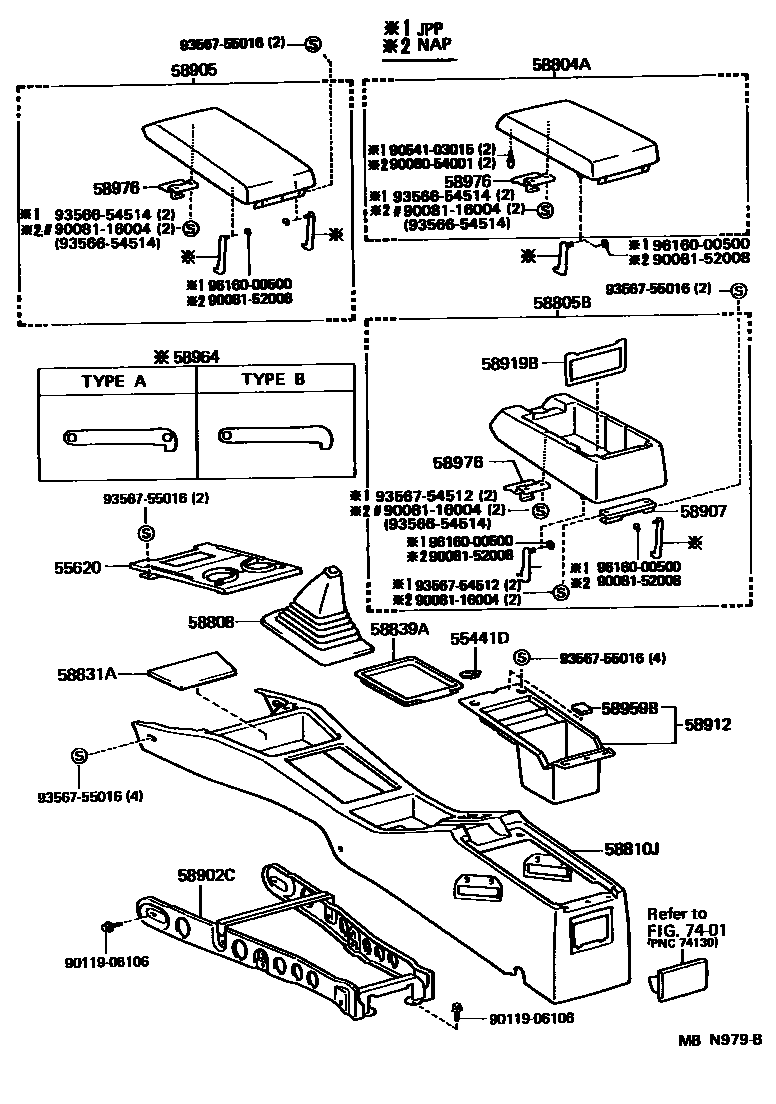

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620 | Dashboard cup holder assembly | 55620-32010 |
| 58831A | Front armrest box upper panel decorative parts | 58831-03010 |
| 58902C | Armrest box mounting bracket sub-assembly | 58902-03010 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-03010 |
| 58919B | Armrest box nameplate | 58919-03010 |
| 58959B | Armrest box cover cushion | 58959-03010 · 58959-03020 |
| 58964 | Armrest box cover No. 1 stop | 58964-03010 · 58965-03010 |
| 58976 | Armrest box lid lock | 58976-03010 |
